A-7674-B09A102A Overview

3.96mm

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0009060099
Active
kk
3.96mm (.156") KK® IDT Trifurcon™ Contact, 9 Circuits, Tin (Sn), Feed-Through, 18
Solid or Fused Stranded, Yellow ID Strip
Documents:
3D Model
Drawing (PDF)
Product Specification PS-7660 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
IDT and Solder Connectors
7674
Trifurcon™ contact
Yes
kk
KK®, Trifurcon™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
Physical
Circuits (Loaded)
Color - Resin
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
9
Natural
Female
No
Yes
Brass
Tin
Tin
Nylon
1
Bag
No
0.156 In
3.96 mm
200
5
200
5
0°C to +75°C
IDT or Pierce
18 Solid, 18 Stranded Topcoat
Search Parts in this Series
7674Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Insertion Tool for
0638133503
3.96mm (.156") Pitch
KK® IDT Crimp
Terminals
IDT - Manual Press 0011200314
For Ribbon Cable
IDT - Semi-automatic 0011200418
- Bench-Top
Terminator
IDT - Manual -
0011215196
Handtool
IDT Manual Handtool0621000400
Electrical
Voltage - Maximum
250V
Material Info
Old Part Number
A-7674-B09A102A
Reference - Drawing Numbers
Packaging Specification
Product Specification

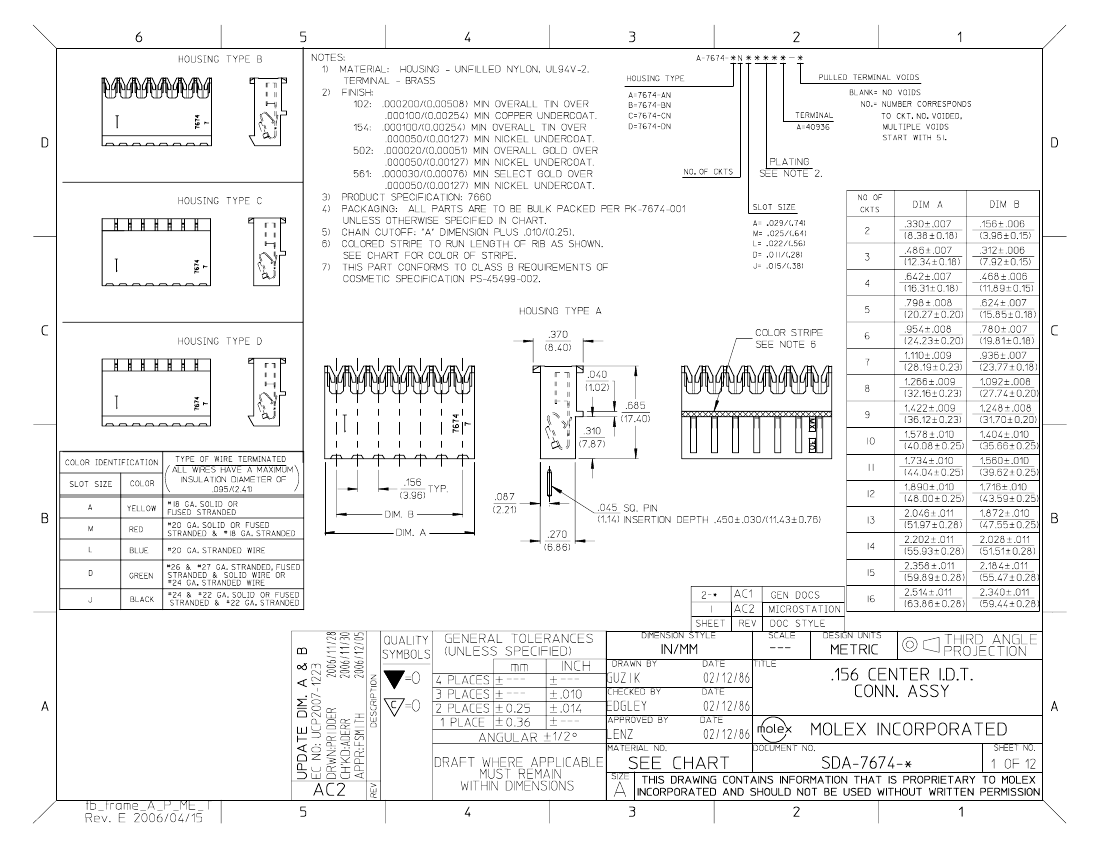

Sales Drawing
PK-7674-001
PS-7660
SDA-7674-*
