Data Sheet No. PD10044 revK
Microelectronic Power IC
HEXFET
®
Power MOSFET Photovoltaic Relay
Dual Pole, Normally Open
0-250V, 170mA AC/DC
Series PVT322APbF
General Description
The PVT322A Series Photovoltaic Relay is a dual-
pole, normally open solid-state relay that can replace
electromechanical relays in many applications. It util-
izes International Rectifier’s HEXFET power MOSFET
as the output switch, driven by an integrated circuit
photovoltaic generator of novel construction. The
output switch is controlled by radiation from a GaAlAs
light emitting diode (LED) which is optically isolated
from the photovoltaic generator.
Series PVT322A Relays are packaged in an 8-pin,
molded DIP package with either thru-hole or surface
mount (gull-wing) terminals. It is available in standard
plastic shipping tubes or on tape-and-reel. Please refer
to Part Identification information opposite.
Features
HEXFET Power MOSFET output
Bounce-free operation
4,000 V
RMS
I/O isolation
Linear AC/DC operation
Solid-State Reliability
UL Recognized
Applications
On/Off
Hook switch
Tip
and Ring Line switching
General
switching
Part Identification
PVT322APbF
PVT322ASPbF
PVT322AS-TPbF
thru-hole
SMT
SMT, T&R
(HEXFET is the registered trademark for International Rectifier Power MOSFETs)
Series PVT322APbF
Electrical Specifications
(-40°C
≤
T
A
≤
+85°C unless otherwise specified)
INPUT CHARACTERISTICS
Minimum Control Current
(See figure1)
Maximum Control Current for Off-State Resistance
@TA=+25°C
Control Current Range
(Caution: current limit input LED, see figure 5)
Maximum Reverse Voltage
Operating Voltage Range
Maximum Load Current
@ T
A
=+40°C
5mA Control (See figure 1) (single and dual channel operation)
Maximum Peak Load Current
(10ms maximum duration)
(single and dual channel operation)
Maximum On-State Resistance
@T
A
=+25°C
For 50mA Pulsed load, 5mA Control (see figure 3)
Maximum Off-State Leakage
@T
A
=+25°C, ±250V (see figure 4)
Maximum Turn-On Time
@T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Turn-Off Time
@T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Output Capacitance
@ 50V
DC
Limits
2.0
0.4
2.0 to 25
6.0
0 to ±250
170
500
8
1.0
3.0
0.5
50
Units
mA
mA
mA
V
V
(DC or AC peak)
mA
mA
Ω
µA
ms
ms
pF
OUTPUT CHARACTERISTICS
Limits
Units
GENERAL CHARACTERISTICS
Minimum Dielectric Strength, Input-Output
Minimum Dielectric Strength, Pole-to-Pole
Minimum Insulation Resistance,
Input-Output, @T
A
=+25°C, 50%RH, 100V
DC
Maximum Capacitance, Input-Output
Maximum Pin Soldering Temperature
(10 seconds maximum)
Ambient Temperature Range:
Operating
Storage
International Rectifier does not recommend the use
of this product in aerospace, avionics, military or
life support applications. Users of this International
Rectifier product in such applications assume all
risks of such use and indemnify International Recti-
fier against all damages resulting from such use.
Limits
4000
1000
10
12
1.0
+260
-40 to +85
-40 to +100
Units
V
RMS
V
DC
Ω
pF
°C
Connection Diagram
www.irf.com
2
Series PVT322APbF
200
250
200
150
IL ED = 5 mA
150
100
50
100
-3.0 -2.5 -2.0 -1.5 -1.0 -0.5
0.5
-50
1.0
1.5
2.0
2.5
3.0
50
2 mA
-100
-150
-200
0
0
20
40
60
80
100
-250

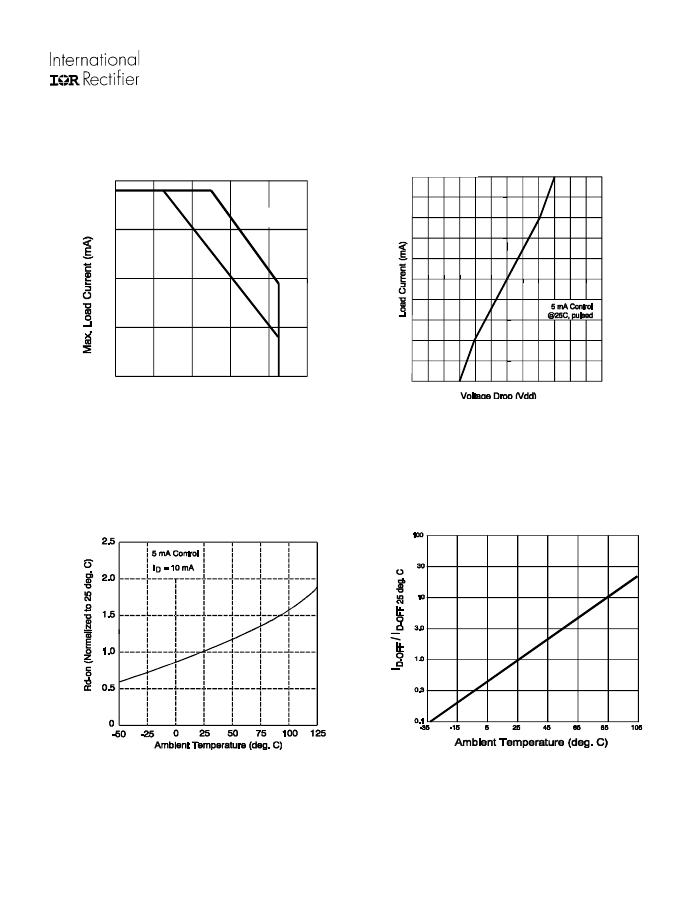

Figure 1. Typical Current Derating Curve
Figure 2. Linearity Characteristics
Figure 3. Typical Normalized On-Resistance
Figure 4. Typical Normalized Off-State Leakage
www.irf.com
3
Series PVT322APbF
L E D C urrent (mA)
LED Current (mA)

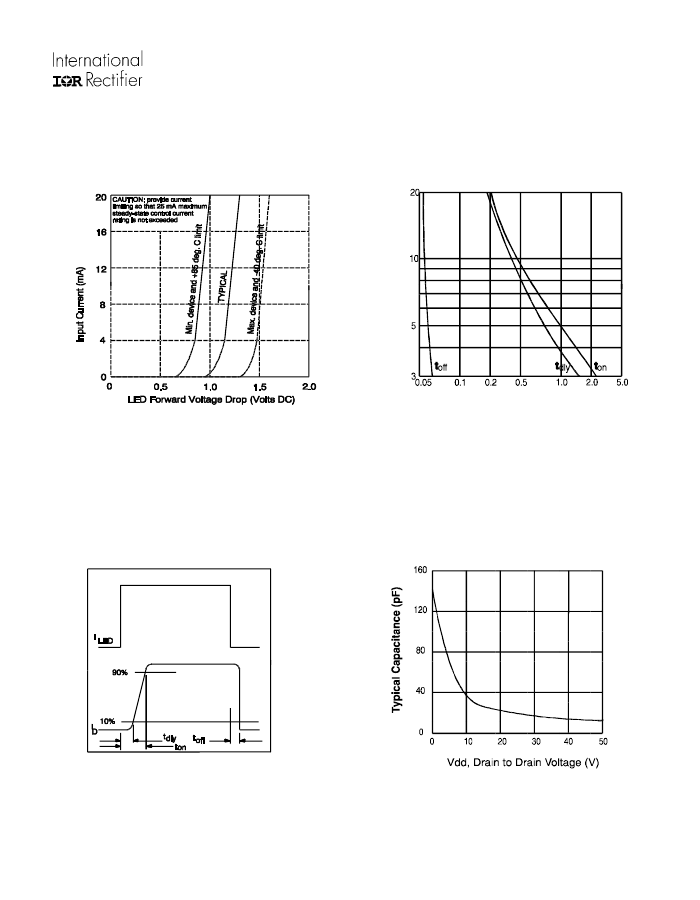

Figure 5. Input Characteristics (Current Controlled)
Figure 6. Typical Delay Times
Delay Time (milliseconds)
Delay Time (milliseconds)
Figure 7. Delay Time Definitions
Figure 8. Typical Output Capacitance
www.irf.com
4
Series PVT322APbF

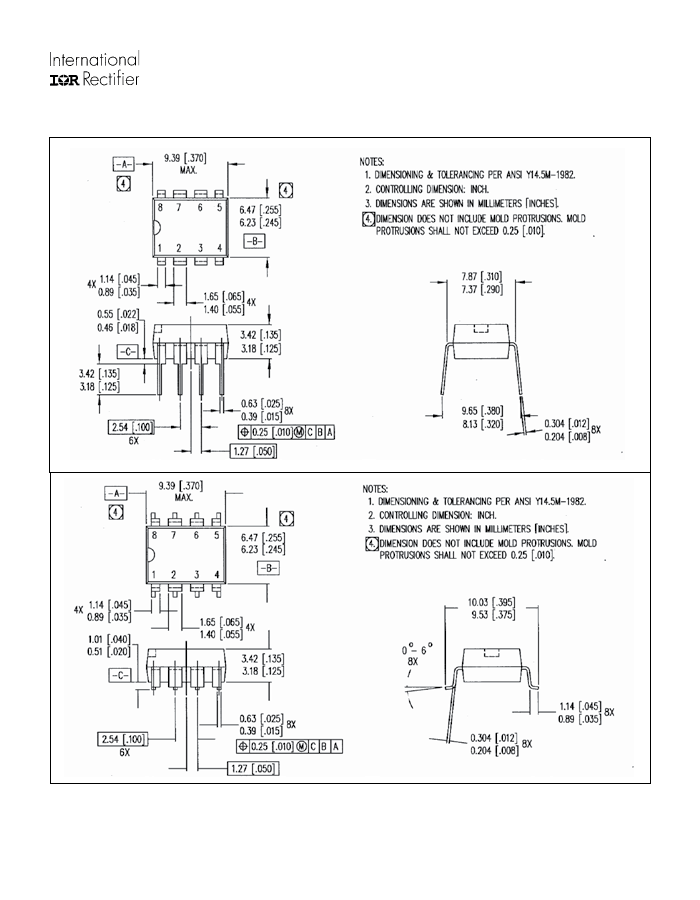

Case Outlines
01-2004 04
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245 Tel: (310) 252-7105
Data and specifications subject to change without notice. 2/2008
www.irf.com
5
