10126196-201RLF: DescriptionUSB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10126196-201RLF Overview

USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

10126196-201RLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.283 inch
subject depth	0.551 inch
body length	0.571 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact point gender	MALE
Contact style	USB, SER A FLAT
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	COPPER ALLOY
Terminal length	0.079 inch
Termination type	SOLDER
Total number of contacts	4

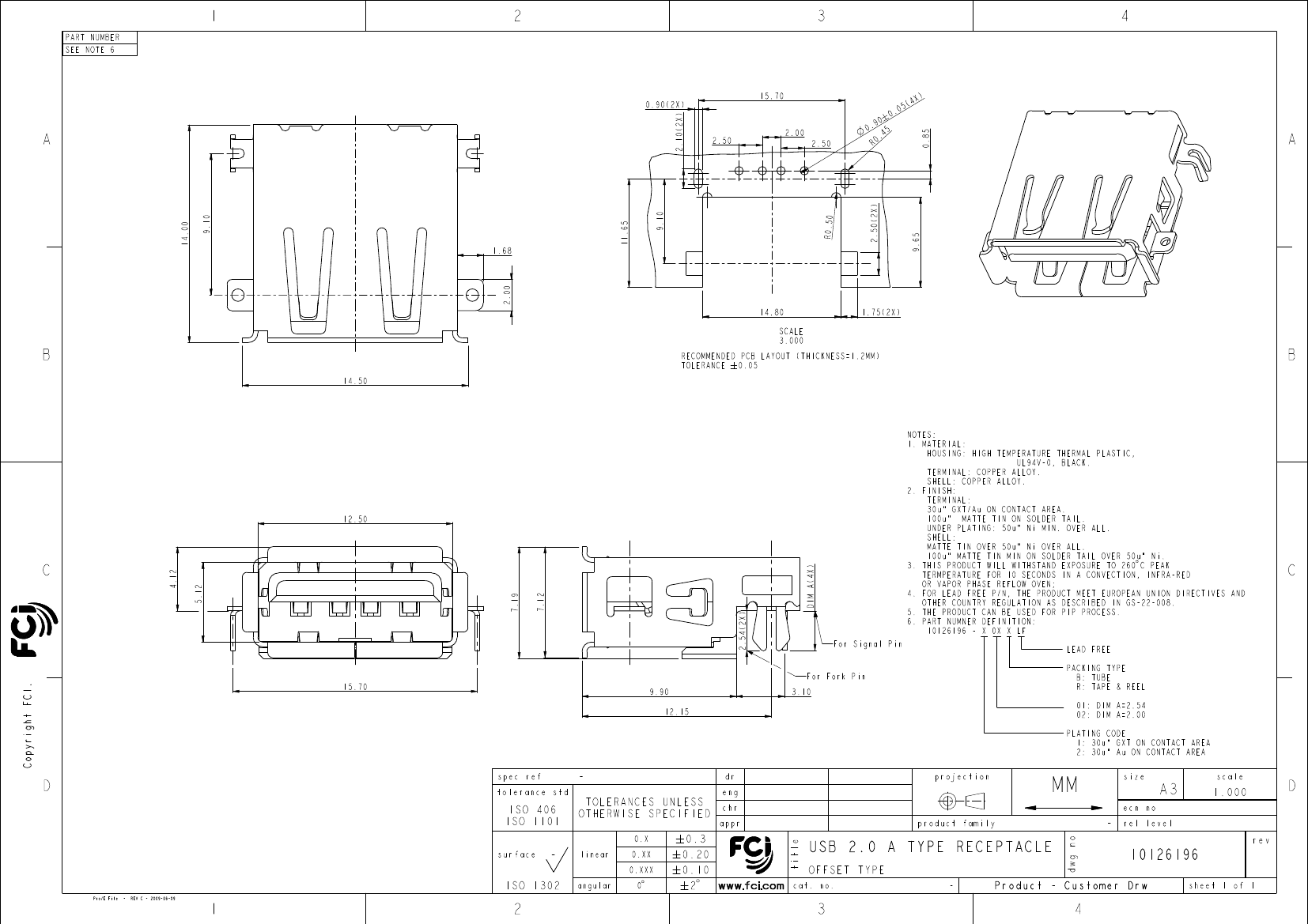

Preview

Download Datasheet

View All

John Han

Li-Qing Lei

Tim Yao

2013/07/17

2015/01/15

ELX-N-19993-1

Released

PDS: Rev :B

STATUS:Released

Printed: Jan 16, 2015

10126196-201RLF Related Products

	10126196-201RLF	10126196-101BLF	10126196-101RLF	10126196-102BLF	10126196-102RLF	10126196-202BLF	10126196-202RLF
Description	USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch
subject depth	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch
body length	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact style	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Terminal length	0.079 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.079 inch	0.079 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4	4	4	4
ECCN code	-	EAR99	-	EAR99	EAR99	EAR99	-
Contact to complete cooperation	-	NOT SPECIFIED	-	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI
