055935-0210

Description
2.0 WTB PLG HSG ASSY RA
CategoryThe connector
File Size131KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

055935-0210 Overview

2.0 WTB PLG HSG ASSY RA

This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0559350210
Active
microclasp
2.00mm (.079") Pitch MicroClasp™ Wire-to-Board Header, Single Row, Right Angle, 2
Circuits, with PCB Locator
Documents:
3D Model

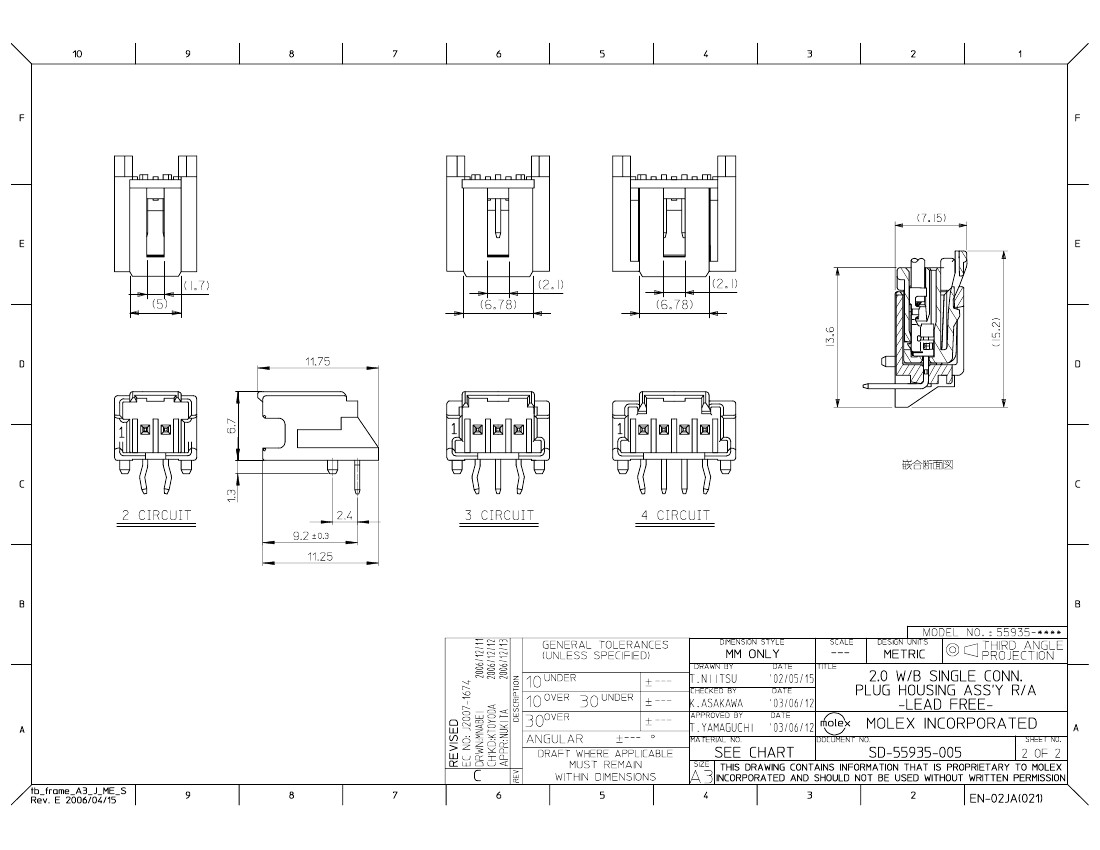

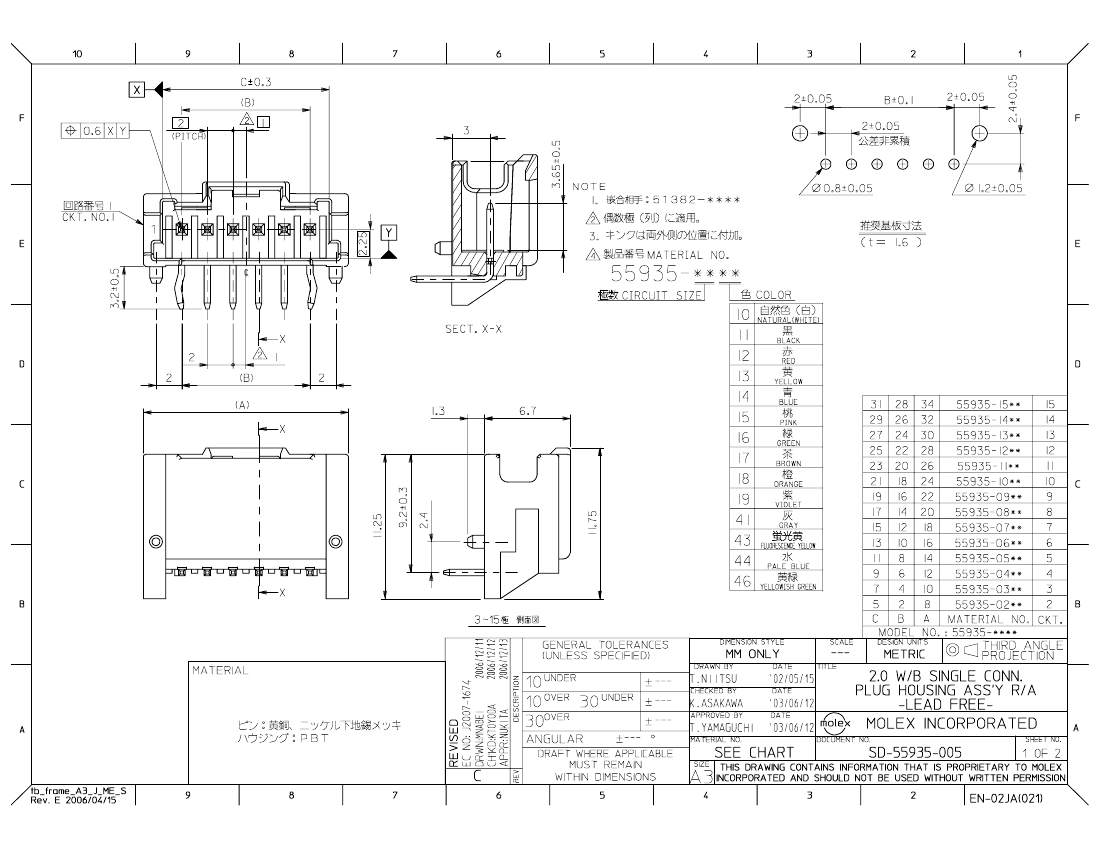

Drawing (PDF)
Product Specification PS-51382-004 (PDF)
RoHS Certificate of Compliance (PDF)
Series

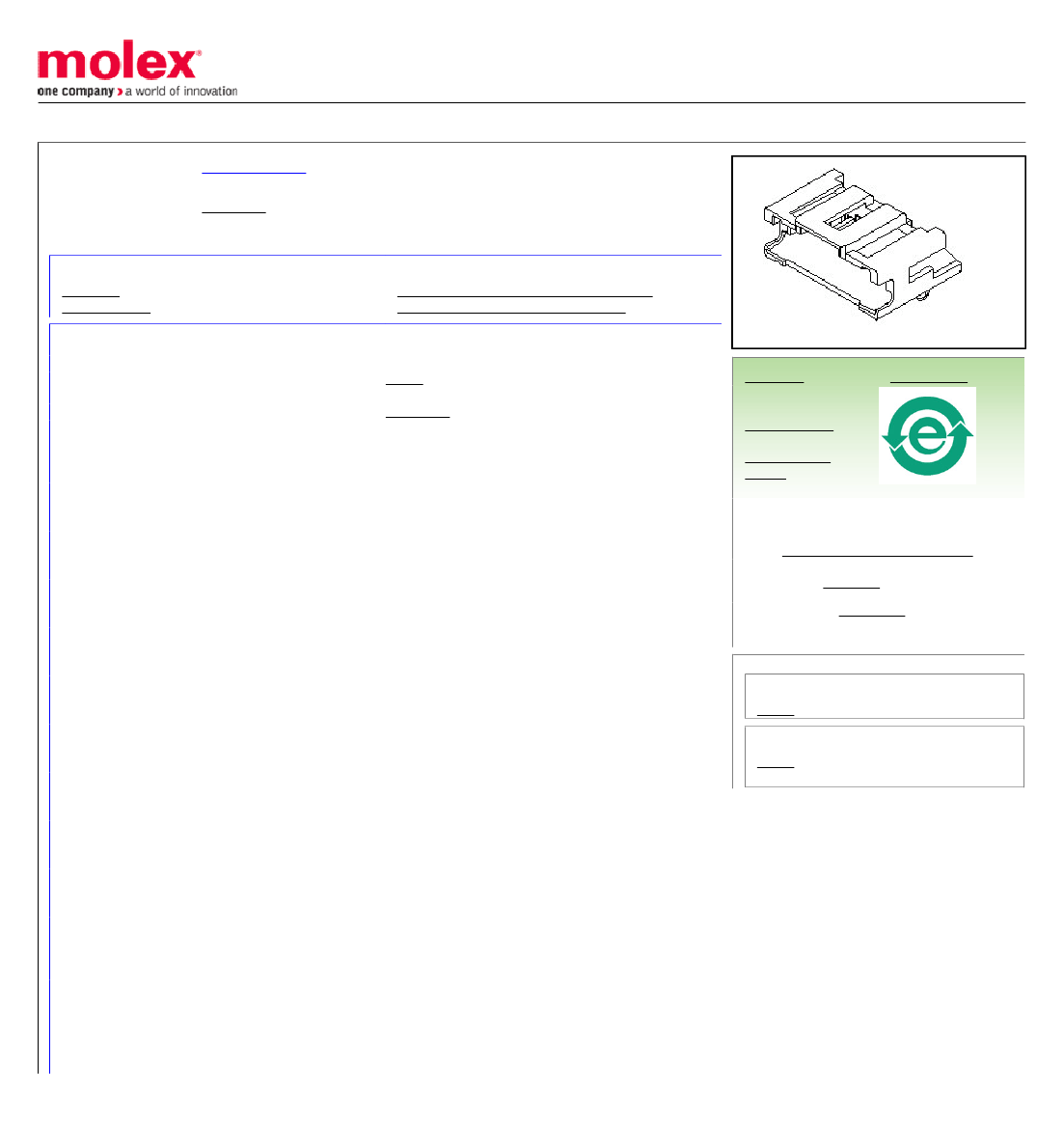

image - Reference only
PCB Headers
55935
Wire-to-Board
microclasp
MicroClasp™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural
30
No
No
No
None
Yes
Tin
Tin
Polyester
1
Right Angle
0.126 In
3.20 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.079 In
2.00 mm
Fully
No
No
-25°C to +85°C
Through Hole
Search Parts in this Series
55935Series
Mates With
51382 MicroClasp™ Wire-to-Board
Receptacle Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
Reference - Drawing Numbers
Packaging Specification
SPK-55935-001
Assembler Instruction Documentation
