This document was generated on 04/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0524180490
Active
2.00mm (.079") Pitch Board-to-Board Receptacle, Right Angle, Single Row, Friction
Lock, 4 Circuits, Tube Package
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52418-002 (PDF)
Product Specification PS-52418-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Product Name
PCB Receptacles
52418
Board-to-Board
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
4
Natural
30
No
Yes
Phosphor Bronze
Tin
Tin
Polyester
1
Right Angle
No
Yes
0.062 In
1.60 mm
Tube
0.079 In
2.00 mm
36
0.90
36
0.90
No
No
-40°C to +105°C
Through Hole - Kinked Pin
Search Parts in this Series
52418Series
Mates With
53290
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.5A
125V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-52418-002, PS-52418-003, RPS-52418-001,
RPS-52418-004

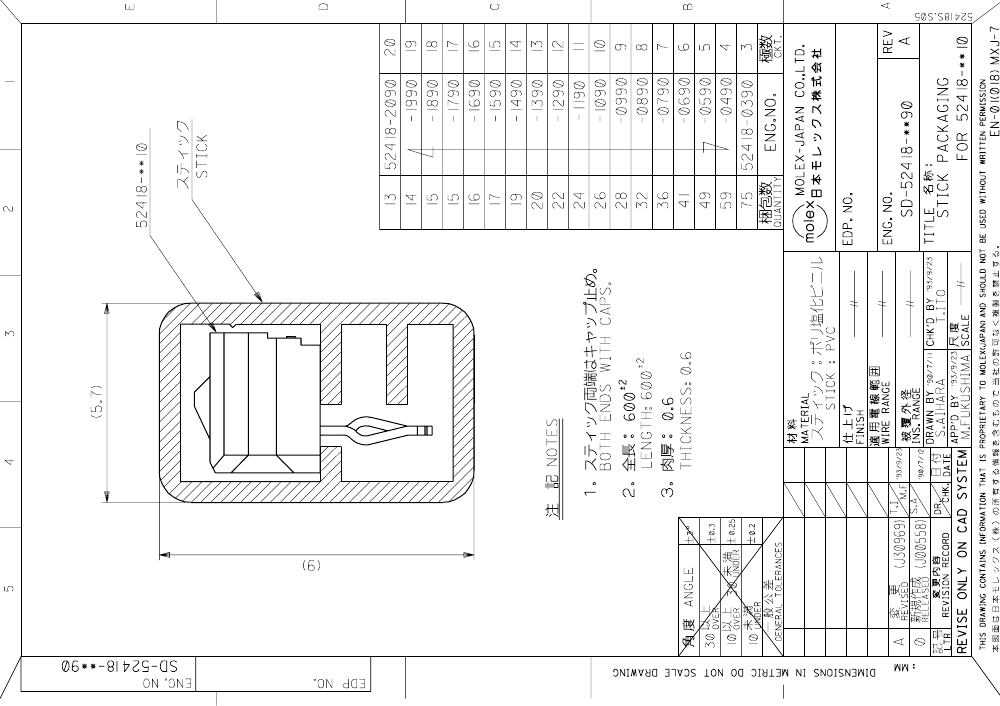

SD-52418-**90
