51336-1410

Description
14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size102KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

51336-1410 Overview

14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

51336-1410 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Manufacturer's serial number51336
Base Number Matches1

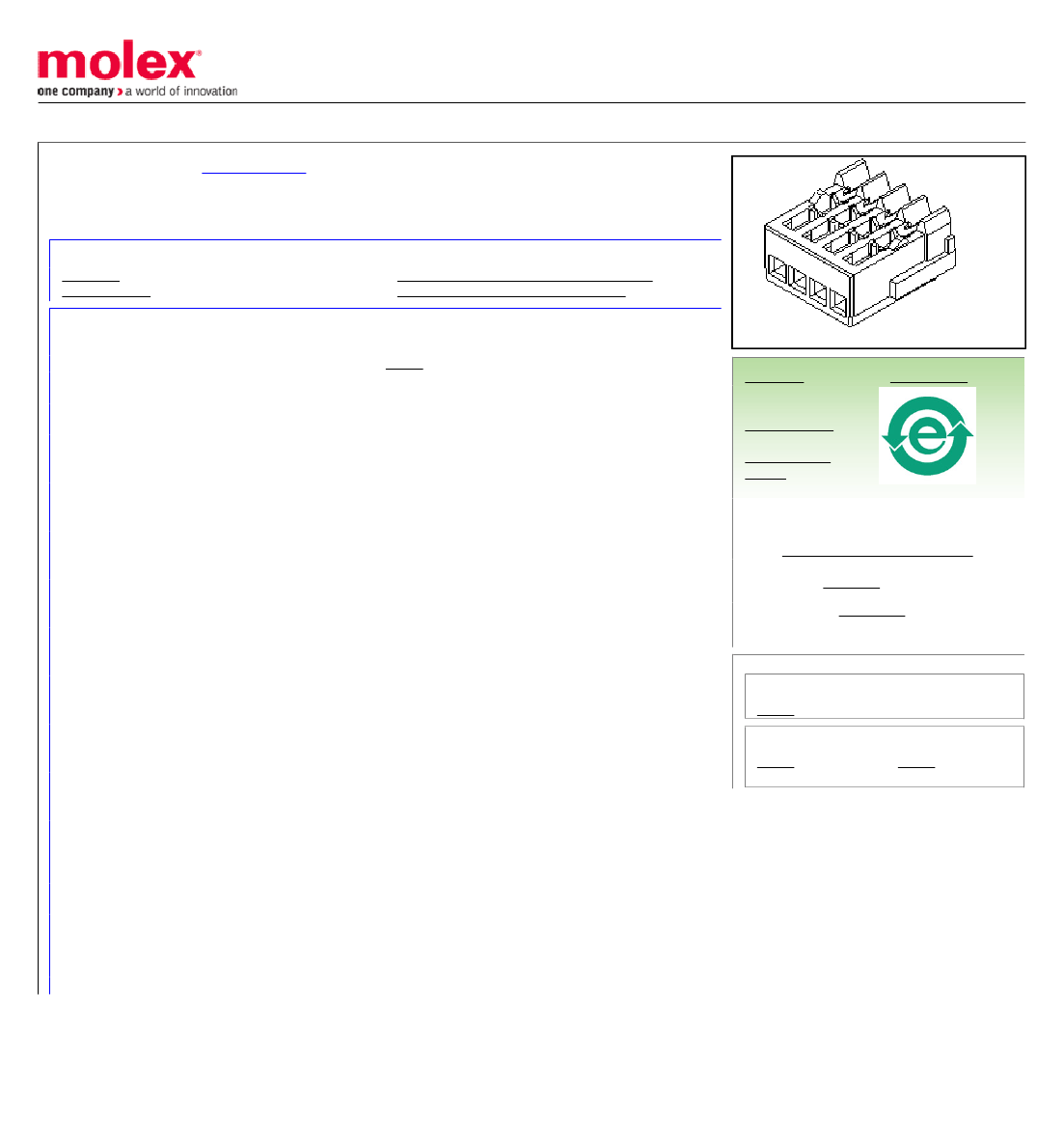

This document was generated on 04/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0513361410
Active
1.25mm (.049") Pitch Mini Mi II™ System Wire-to-Board IDT Housing, Single Row, 14
Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-51336-010 (PDF)
RoHS Certificate of Compliance (PDF)
Series
IDT and Solder Connectors
51336
Yes
Mini Mi II™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
14
Natural
30
Female
No
Yes
Phosphor Bronze
Tin
Tin
Polyester
1
Bag
No
0.049 In
1.25 mm
36
0.90
36
0.90
Yes
No
-40°C to +105°C
0.80-0.90mm (.031-.035")
26, 28
Search Parts in this Series
51336Series
Mates With
55447 Vertical Header, 55454 Right Angle
Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.5A
100V
Material Info
Reference - Drawing Numbers
Product Specification

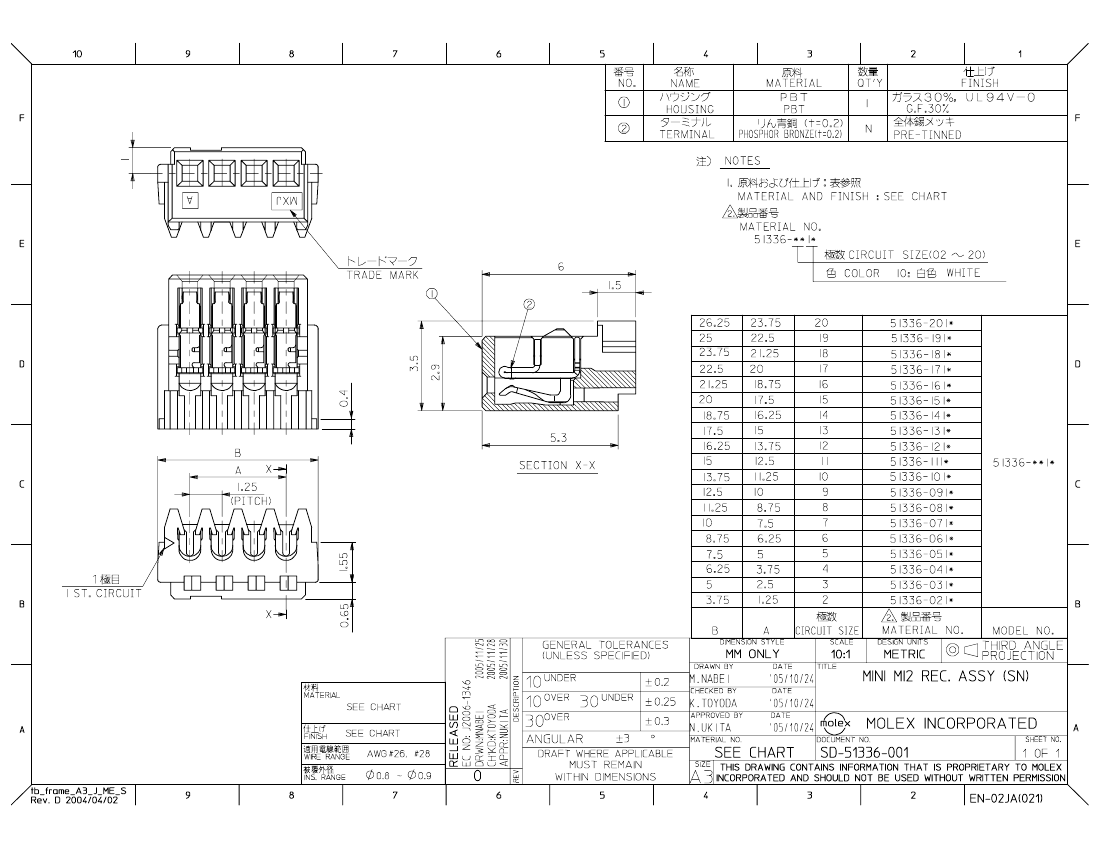

Sales Drawing
PS-51336-010, RPS-51336-004, RPS-51336-005,
RPS-51336-006, RPS-51336-009
SD-51336-001
This document was generated on 04/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
