31-4774-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 31-4774-5

31-4774-5: DescriptionTriaxial Connector, 1 Contact(s), Male, Locking, Plug,; CategoryThe connector The connector; File Size318KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

31-4774-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-4774-5	-	-	View	Buy Now

31-4774-5 Overview

Triaxial Connector, 1 Contact(s), Male, Locking, Plug,

31-4774-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Body/casing type	PLUG
Connector type	TRIAXIAL CONNECTOR
Contact point gender	MALE
Contact style	COAX
Insulator color	NATURAL
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	31-4774
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	SILVER
Shell material	BRASS
Total number of contacts	1

Preview

Download Datasheet

View All

NOTES:

1. MATERIALS AND FINISHES:

BODY,CLAMP NUT,WASHERS,

SHELL & RETAINING RING - BRASS, SILVER PLATING

INSULATORS - PTFE,NATURAL

CONTACT

- BRASS, GOLD PLATING

GASKETS

- SILICONE RUBBER

MECHANICAL:

A. TEMPERATURE RANGE:

-65 $

C TO 165 $

31-4774-3

SCALE 1.000

31-4774-5

SCALE 1.000

THIRD ANGLE PROJ.

REV

REVISIONS

RELEASE TO MFG

SEE SHEET 2

DESCRIPTION

DATE

REDRAWN IN PRO-E & COD ADDED

1/17/14

ECO

7/10/15

49825

50596

APPR

CPM

PACKAGING:

A. QUANTITY: SINGLE PACK

B. MARKING: BAG TO BE MARKED

"AMPHENOL, PART NO. [SEE TABLE], AND DATE CODE"

SHOWS CABLE ENTRY DIMENSIONS.

31-4774-3

1.250 REF

0.160

0.200

0.215

0.200

0.221

0.260

0.300

STAMP "AMPHENOL 31-4774-3"

1.250 REF

WASHER

0.200

INSULATOR

GASKET

WASHER

CLAMP NUT

0.160

0.215

0.200

0.221

0.260

0.272

ITEM NO.

31-4774-3

31-4774-5

PART NO.

31-4774-3

31-4774-5

ASSEMBLED LENGTH

1.432 REF.

CABLE

RG-307 A/U

MATERIAL

STAMP:

LINE 1 = "74868 11438334

LINE 2 = YYWW 31-4774-5"

WASHER

INSULATOR

GASKET

WASHER

CLAMP NUT

31-4774-5

DRAWN

CLEMENT

ENGINEER

APPROVED

K. CAPOZZI

DATE

03-Dec-13

DATE

1/17/14

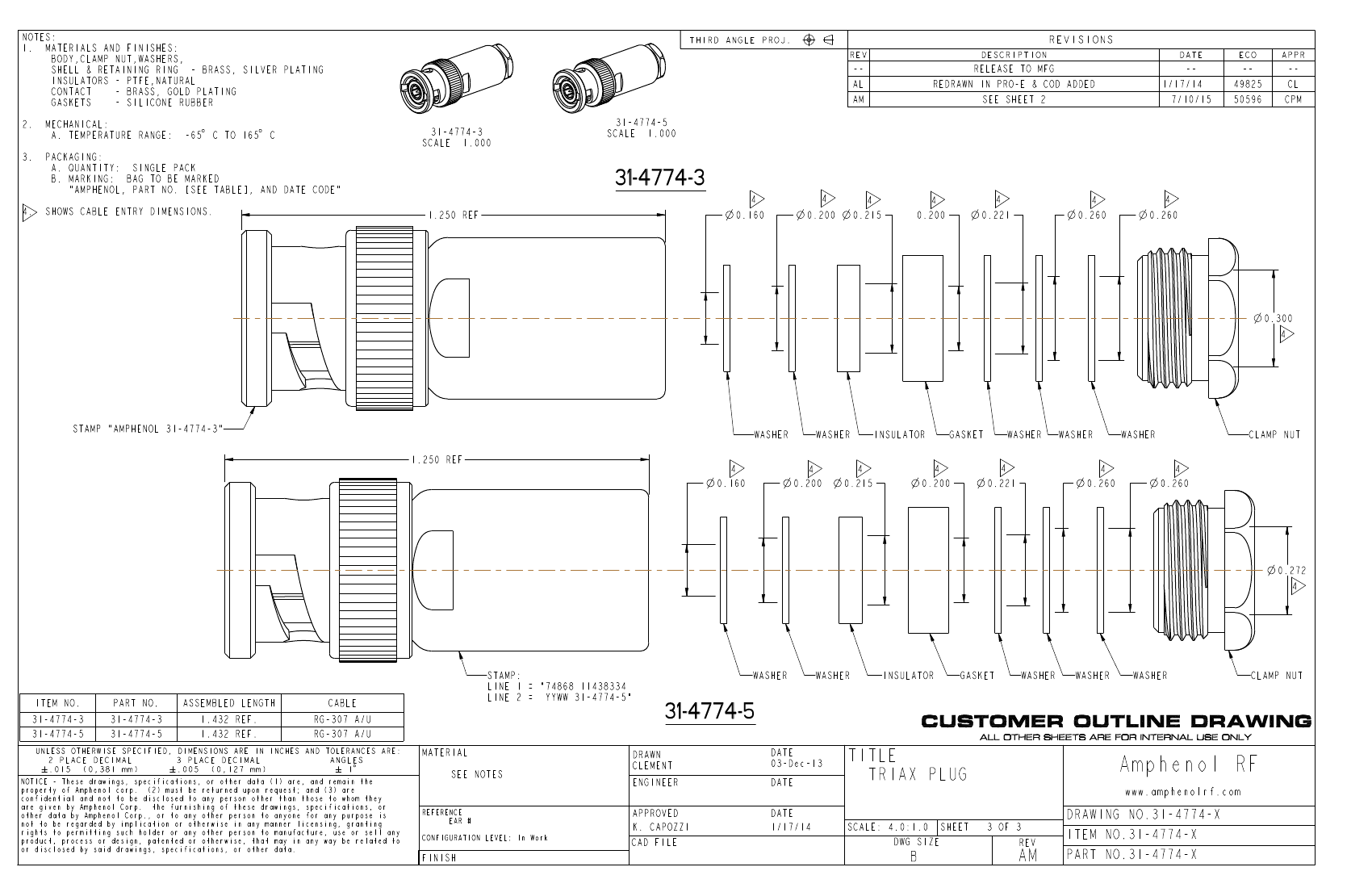

CUSTOMER OUTLINE DRAWING

ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing,

granting

rights to permitting such holder or any other person to manufacture, use or

sell any

product, process or design, patented or otherwise, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

SEE NOTES

REFERENCE

EAR #

CONFIGURATION LEVEL: In Work

TITLE

TRIAX PLUG

SCALE: 4.0:1.0

SHEET

3 OF 3

Amphenol RF

www.amphenolrf.com

DRAWING NO. 31-4774-X

ITEM NO. 31-4774-X

PART NO. 31-4774-X

FINISH

CAD FILE

DWG SIZE

REV
