31-5987-RFX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 31-5987-RFX

Preview

31-5987-RFX: DescriptionRF TNC Connector; CategoryThe connector The connector; File Size258KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-5987-RFX Overview

RF TNC Connector

31-5987-RFX Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	RF TNC CONNECTOR
Manufacturer's serial number	TNC31

Preview

Download Datasheet

View All

Amphenol

Telecom Solutions

TNC

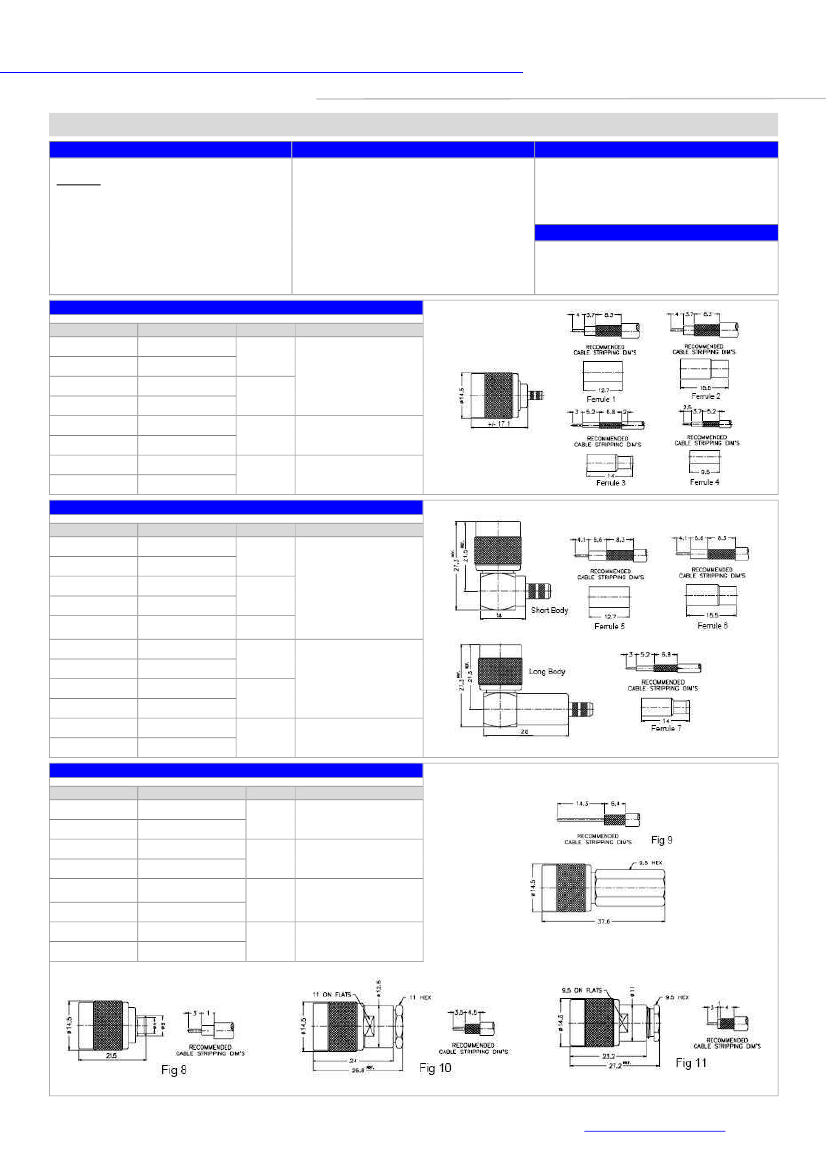

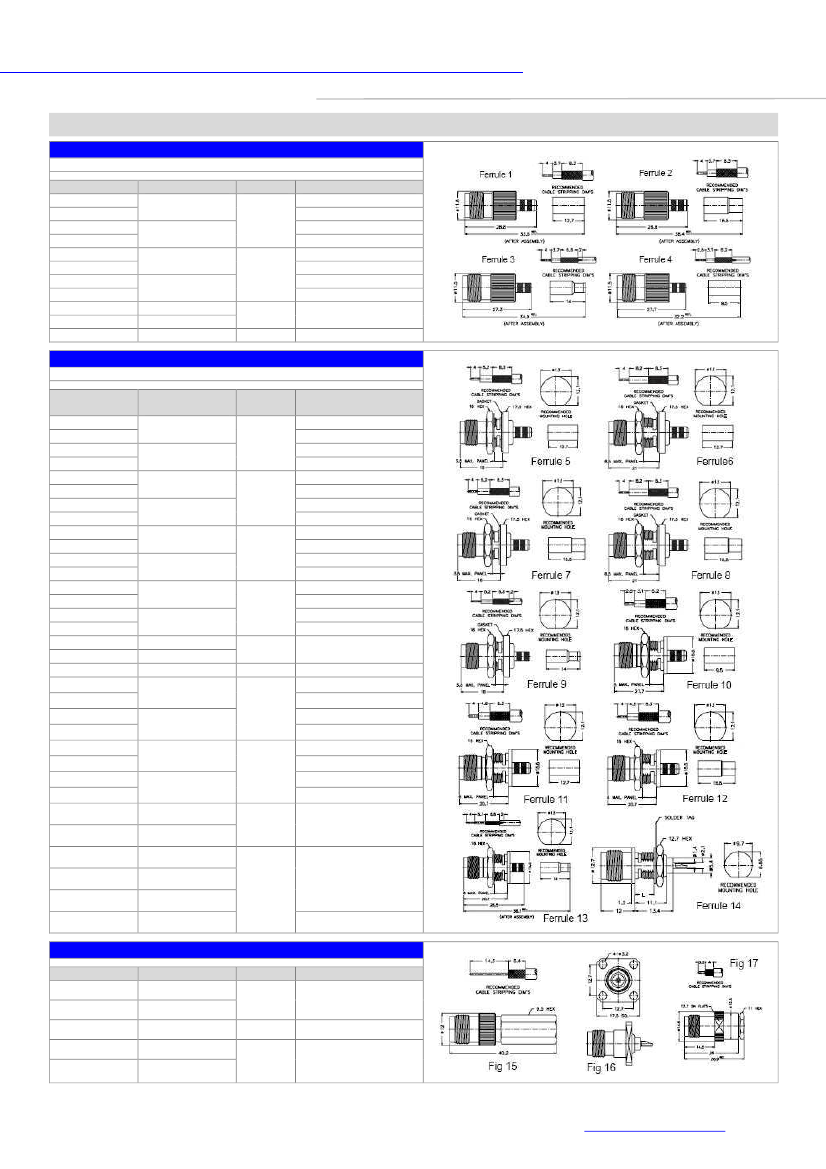

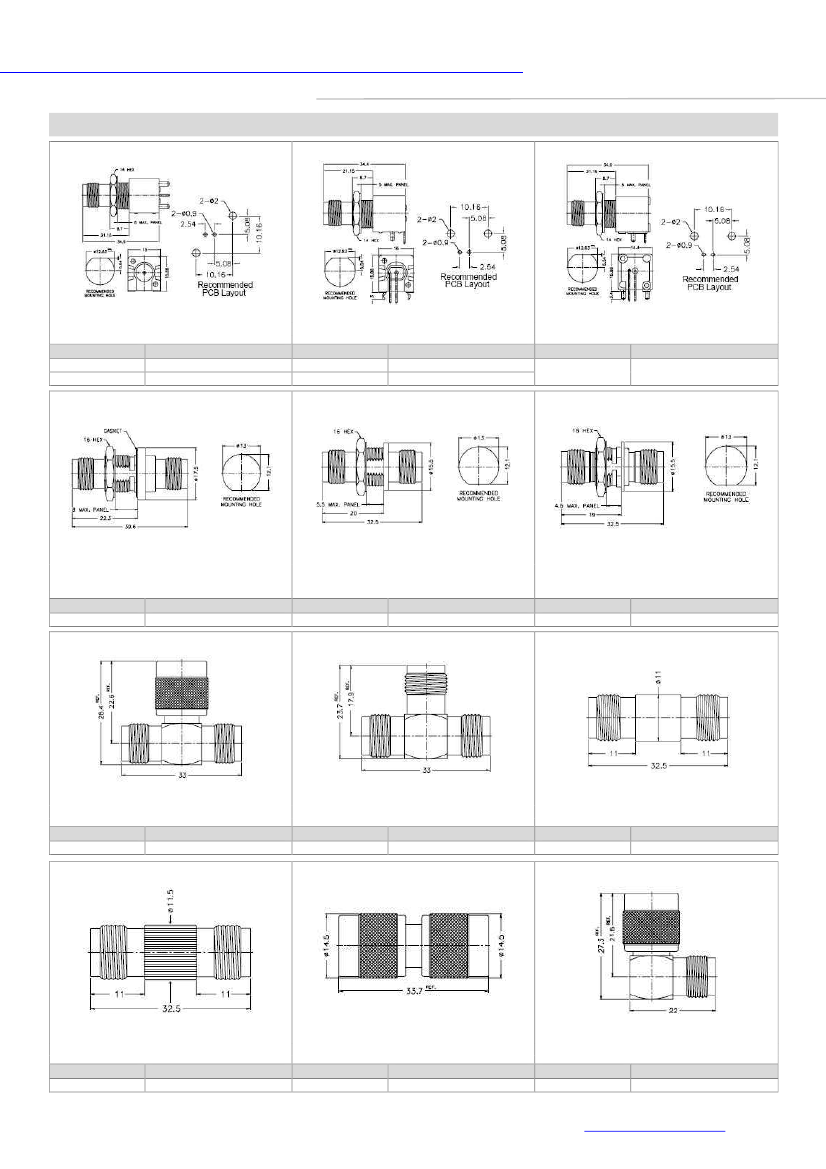

31 Series Threaded Lock RF Connector System

Materials

Body/Finish

Contacts

Centre MALE

Centre FEMALE

Insulator

Gasket

Crimp Ferrules

*

Metal finishes

Durability

– Brass/Nickel

– Brass/Gold Plated (Au)

– Phosphor Bronze/Au

– Delrin/PBT Polyester

– Silicone Rubber

– Annealed Copper

– Nickel (Ni) or Gold (Au)

– 500 Cycles

Electrical

Impedance

– 50 ohm

Frequency range – 0-11 GHz

Voltage

– 500 VRMS

Dielectric withstand –1500 VRMS

VSWR Straight

– 1.3 max

R/A

– 1.5 max

Resistance Inner – 3 Milliohm max

Outer

– 2 Milliohm max

Insulator

– 5000 Megaohm min

Environmental

Temp. range

Shock

Humidity

Vibration

Corrosion

Cable

Hand Tools

Termination Instr.

Terminology

– -65°C thru 165°C

– Consult Representative

– Section D

– Section F

– Section G

– Section J

Related Information

Crimp/Crimp Straight Plug

T1121x1ND3Gxxx50

Part Number:

31-2367-RFX

31-2368-RFX

31-5837-RFX

31-5838-RFX

31-2315-RFX

31-2242-RFX

31-5839-RFX

31-5840-RFX

Cable:

RG/U 58/141

RG/U 59/62

Plenum 58/141

Ferrule:

1

Description:

Captive Contact

Termination Instruction

E

2

Plenum 59/62

RG/U 174/188/316

3

RG/U 179/187

RG/U 174/188/316

4

RG/U 179/187

Non-Captive Contact

Termination Instruction

F

Pin-to-Pin Contact

Termination Instruction

E

Crimp/Crimp Right Angle Plug

T1112x1ND3Gxx50/T1122x1ND3Gxxx50

Part Number:

31-5849-RFX

31-5850-RFX

31-5851-RFX

31-5852-RFX

31-5853-RFX

31-2382-RFX

31-2383-RFX

31-5854-RFX

31-5855-RFX

31-5856-RFX

31-5857-RFX

Cable:

RG/U 58/141

RG/U 59/62

Plenum 58/141

Ferrule:

5

Description:

6

Plenum 59/62

RG/U

174/179/187/188/3

16

RG/U 58/141

RG/U 59/62

Plenum 58/141

6

Plenum 59/62

RG/U 174/188/316

7

RG/U 179/187

7

5

Short Body

Termination Instruction

E

Long Body

Termination Instruction

E

Long Body

Termination Instruction

F

Various Straight Plugs

T1131x1ND3Gxxx50/T1141x1ND3Gxxx50/T1181A1ND3Gxxx50

Part Number:

31-5985-RFX

31-4215-RFX

31-5245-RFX

31-5243-RFX

31-5987-RFX

31-5988-RFX

79875-RFX

79525-RFX

Cable:

S/R .085 A:2.2 B:3.0

S/R /141 A:2.2 B4.6

RG/U 58

Fig:

8

Description:

Solder for Semi-Rigid

Cable

Termination Instruction

S

Twist-On for Solid Centre

Conductor

Termination Instruction

K

Clamp/Solder Captive

Contact

Termination Instruction

I

Clamp/Solder

Termination Instruction

H

9

RG/U 59

RG/U 58/141

10

RG/U 59/62

RG/U 58/141

11

RG/U 59/62

ARFA/RF

C-25

Amphenol Africa, Tel: +27 11 783 9517, Fax: +27 11 783 9519, Cell: +27 83 442 0514, Email:

paule@AmphenolAfrica.com

31-5987-RFX Related Products

	31-5987-RFX	31-5893-RFX	31-4805-RFX	31-5985-RFX	31-5245-RFX	31-2317-RFX
Description	RF TNC Connector	RF Connector Adapter	RF TNC Connector	RF TNC Connector	RF TNC Connector	RF TNC Connector
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Connector type	RF TNC CONNECTOR	RF CONNECTOR ADAPTER	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR
Manufacturer's serial number	TNC31	TNC31	TNC31	TNC31	TNC31	TNC31
