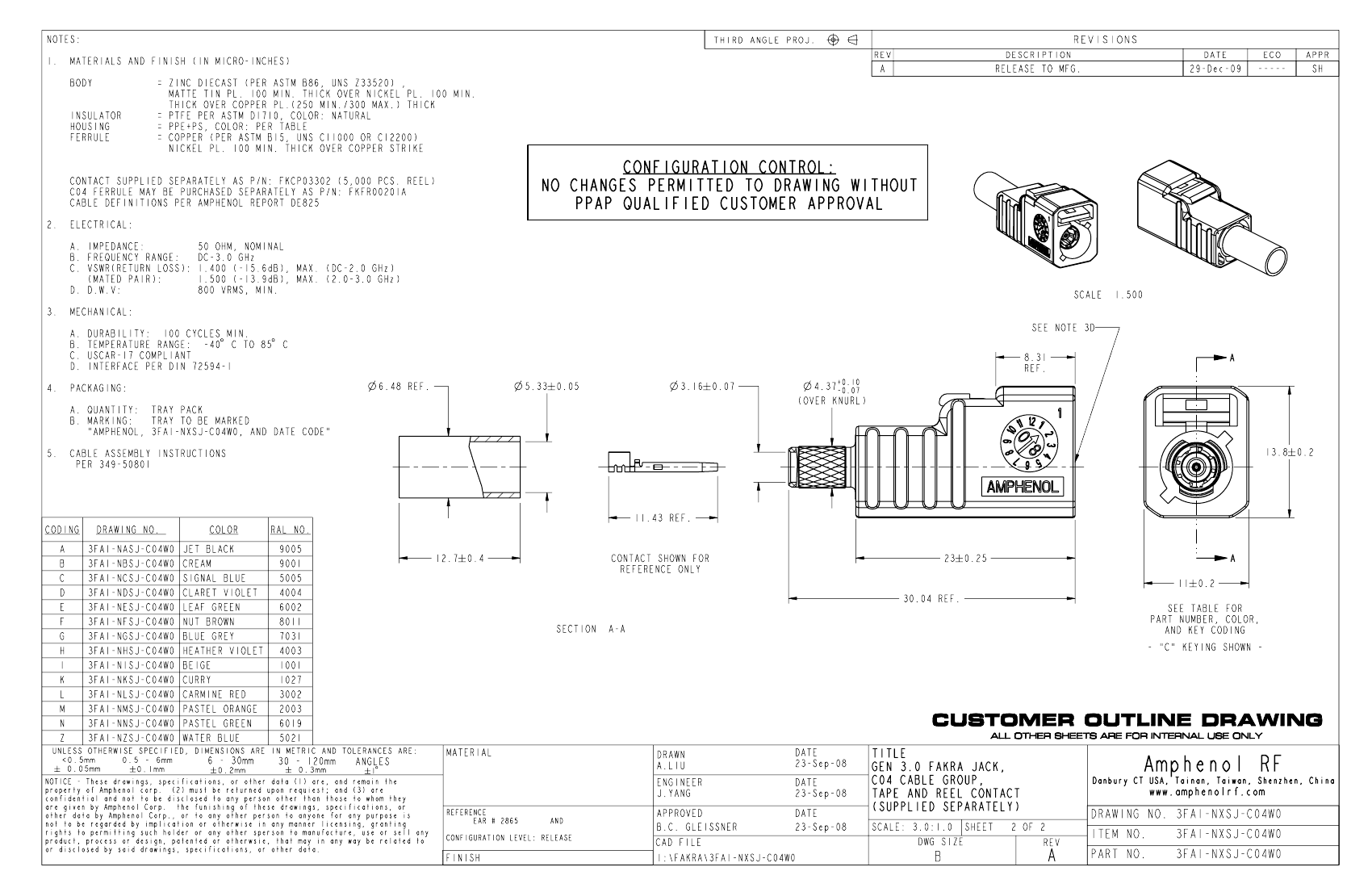

RF Connector, 1 Contact(s), Jack
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 316165841 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Factory Lead Time | 10 weeks |
| YTEOL | 6.5 |
| body width | 0.433 inch |
| subject depth | 0.906 inch |
| body length | 0.543 inch |
| Body/casing type | JACK |
| Cable type | RG-58, RG-141 |
| Characteristic impedance | 50 Ω |
| Connector type | RF SMB CONNECTOR |
| Contact point gender | FEMALE |
| Contact style | COAX |
| Coupling type | SNAP |
| Dielectric withstand voltage | 1131VAC V |
| Durability | 100 Cycles |
| Filter function | NO |
| insulator material | POLYTETRAFLUOROETHYLENE |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of ports | 1 |
| Maximum operating frequency | 3 GHz |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Shell surface | TIN |
| Shell material | ZINC ALLOY |
| Terminal length | 0.277 inch |
| Termination type | CRIMP |
| Total number of contacts | 1 |
| voltage standing wave ratio | 1.5 |
| 3FA1-NFSJ-C04W0 | 3FA1-NESJ-C04W0 | 3FA1-NASJ-C04W0 | 3FA1-NBSJ-C04W0 | 3FA1-NDSJ-C04W0 | 3FA1-NHSJ-C04W0 | 3FA1-NKSJ-C04W0 | 3FA1-NMSJ-C04W0 | 3FA1-NNSJ-C04W0 | 3FA1-NZSJ-C04W0 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack, | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack | RF Connector, 1 Contact(s), Jack |
| Objectid | 316165841 | 316165840 | 316165836 | 316165837 | 316165839 | 316165843 | 316165845 | 316165847 | 316165848 | 316165849 |
| Reach Compliance Code | unknown | compliant | unknown | unknown | unknown | unknown | unknown | compliant | unknown | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| YTEOL | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| body width | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch | 0.433 inch |
| subject depth | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch | 0.906 inch |
| body length | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch |
| Body/casing type | JACK | JACK | JACK | JACK | JACK | JACK | JACK | JACK | JACK | JACK |
| Cable type | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 | RG-58, RG-141 |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact style | COAX | COAX | COAX | COAX | COAX | COAX | COAX | COAX | COAX | COAX |
| Coupling type | SNAP | SNAP | SNAP | SNAP | SNAP | SNAP | SNAP | SNAP | SNAP | SNAP |
| Dielectric withstand voltage | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V | 1131VAC V |
| Durability | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| insulator material | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUOROETHYLENE |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating frequency | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Shell surface | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN |
| Shell material | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY | ZINC ALLOY |
| Terminal length | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch | 0.277 inch |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| voltage standing wave ratio | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | - | - | conform to | - | conform to |
| Factory Lead Time | 10 weeks | 14 weeks | 10 weeks | 10 weeks | 10 weeks | - | - | 14 weeks | - | 14 weeks |
