3FA1ENDRJ-C01Y3 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3FA1ENDRJ-C01Y3

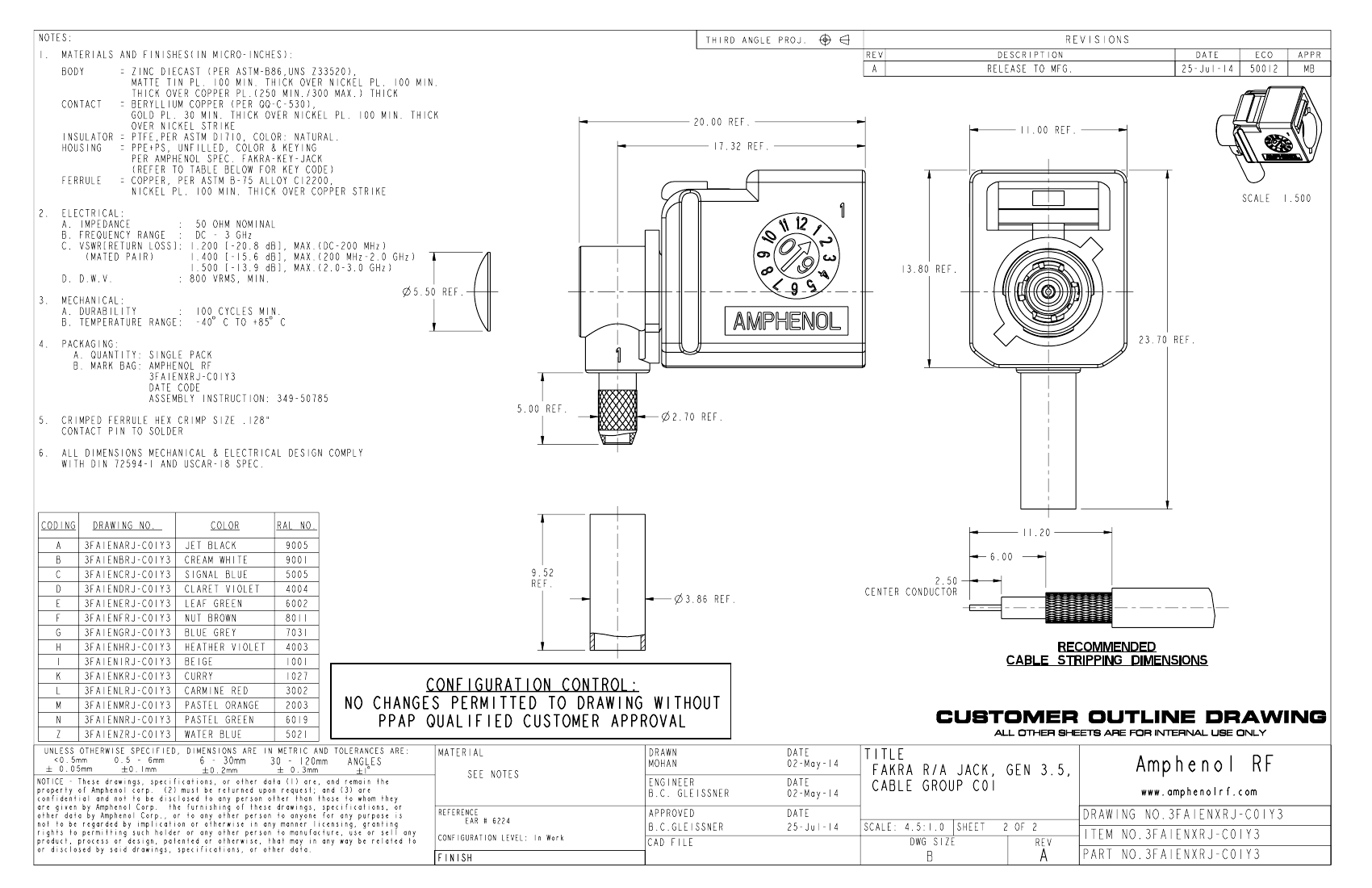

3FA1ENDRJ-C01Y3: DescriptionRF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

3FA1ENDRJ-C01Y3 Overview

RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack

3FA1ENDRJ-C01Y3 Parametric

Parameter Name	Attribute value
Objectid	1333926389
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.5
Other features	POLARIZED
body width	0.433 inch
subject depth	0.809 inch
body length	0.543 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	FEMALE
Contact style	COAX
Coupling type	SNAP
Dielectric withstand voltage	1131VAC V
Durability	100 Cycles
Filter function	NO
insulator material	POLYTETRAFLUOROETHYLENE
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	3 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	TIN
Shell material	ZINC ALLOY
Terminal length	0.197 inch
Termination type	CRIMP SOLDER
Total number of contacts	1
voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

3FA1ENDRJ-C01Y3 Related Products

	3FA1ENDRJ-C01Y3	3FA1ENBRJ-C01Y3	3FA1ENCRJ-C01Y3	3FA1ENFRJ-C01Y3	3FA1ENHRJ-C01Y3	3FA1ENIRJ-C01Y3	3FA1ENKRJ-C01Y3	3FA1ENLRJ-C01Y3	3FA1ENMRJ-C01Y3
Description	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack	RF F Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack
Objectid	1333926389	1333926379	1333926384	1333926399	1333926409	1333926414	1333926419	1333926424	1333926429
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
YTEOL	6.5	6.5	6.5	6.5	6.5	6.5	6.5	6.5	6.5
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
body width	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch
subject depth	0.809 inch	0.809 inch	0.809 inch	0.809 inch	0.809 inch	0.809 inch	0.809 inch	0.809 inch	0.809 inch
body length	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
Dielectric withstand voltage	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V	1131VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1	1	1	1	1	1
Maximum operating frequency	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY
Terminal length	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Termination type	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
Total number of contacts	1	1	1	1	1	1	1	1	1
voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
