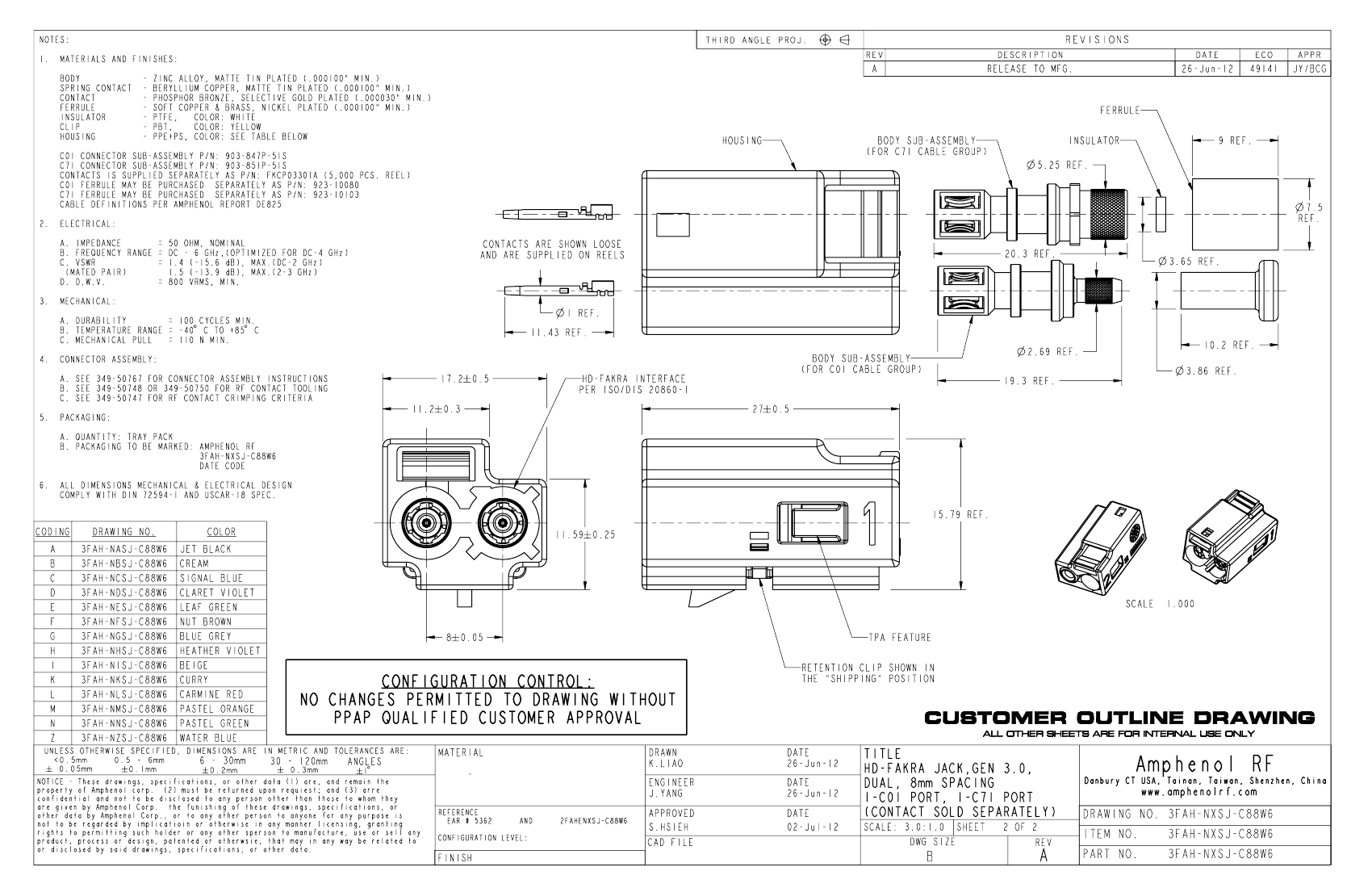

Preview

3FAH-NZSJ-C88W6: DescriptionRF Connector, 2 Contact(s), Female, Jack; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

3FAH-NZSJ-C88W6 Overview

RF Connector, 2 Contact(s), Female, Jack

3FAH-NZSJ-C88W6 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.622 inch
subject depth	1.063 inch
body length	0.677 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact point gender	FEMALE
Contact style	COAX
Dielectric withstand voltage	1125VAC V
Durability	100 Cycles
Insulator color	WHITE
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	3FAH-N
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
reliability	COMMERCIAL
Shell surface	TIN
Shell material	ZINC ALLOY
Total number of contacts	2

Preview

Download Datasheet

View All

3FAH-NZSJ-C88W6 Related Products

	3FAH-NZSJ-C88W6	3FAH-NBSJ-C88W6	3FAH-NCSJ-C88W6	3FAH-NESJ-C88W6	3FAH-NISJ-C88W6	3FAH-NKSJ-C88W6	3FAH-NMSJ-C88W6
Description	RF Connector, 2 Contact(s), Female, Jack	RF Connector, 2 Contact(s), Female, Jack	RF Connector, 2 Contact(s), Female, Jack	RF Connector, 2 Contact(s), Female, Jack	RF Connector, 2 Contact(s), Female, Jack	RF Connector, 2 Contact(s), Female, Jack	RF Connector, 2 Contact(s), Female, Jack
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.622 inch	0.622 inch	0.622 inch	0.622 inch	0.622 inch	0.622 inch	0.622 inch
subject depth	1.063 inch	1.063 inch	1.063 inch	1.063 inch	1.063 inch	1.063 inch	1.063 inch
body length	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX
Dielectric withstand voltage	1125VAC V	1125VAC V	1125VAC V	1125VAC V	1125VAC V	1125VAC V	1125VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	3FAH-N	3FAH-N	3FAH-N	3FAH-N	3FAH-N	3FAH-N	3FAH-N
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of ports	1	1	1	1	1	1	1
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY
Total number of contacts	2	2	2	2	2	2	2
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
