This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0010085021
Active
kk
5.08mm (.200") Pitch KK® Header, Vertical, with Polarizing Backwall, 2 Circuits, Tin
(Sn) Plating
Documents:
3D Model

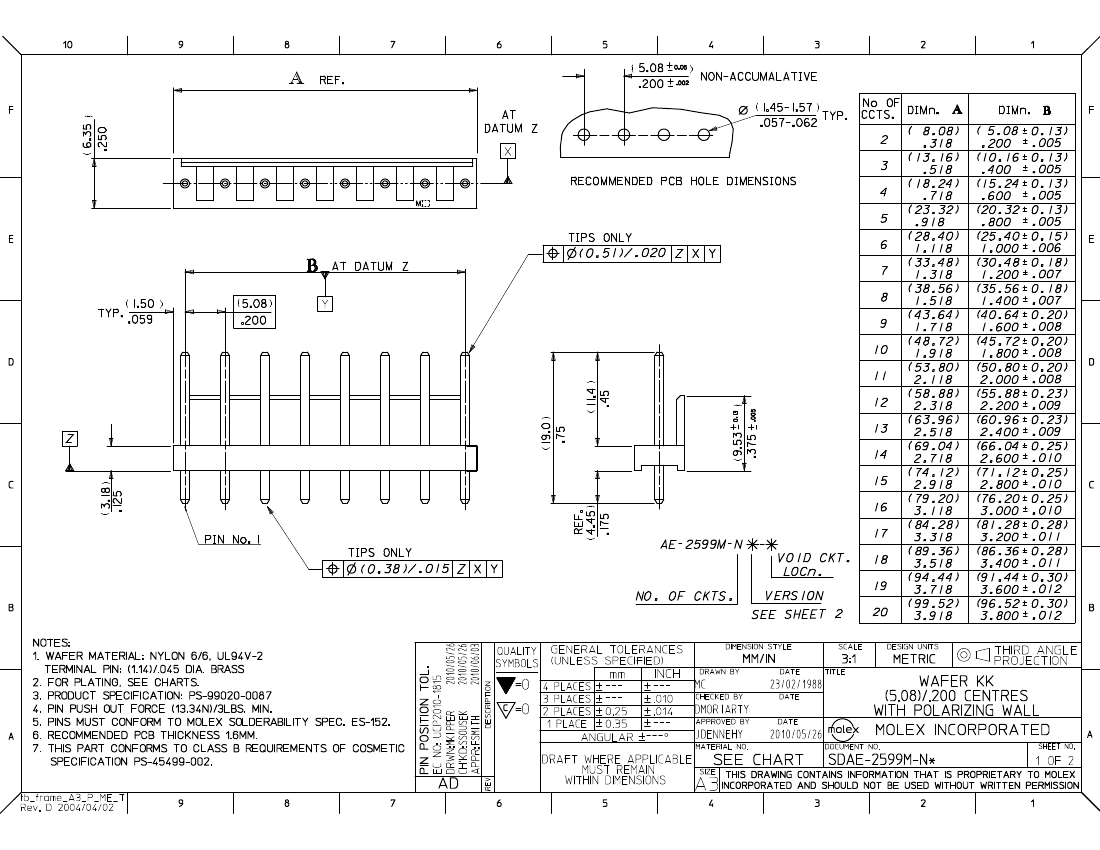

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
2599
Wire-to-Board
kk
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural
25
No
94V-2
No
No
None
None
Brass
Tin
Tin
Nylon
1
Vertical
0.175 In
4.45 mm
None
0.062 In
1.60 mm
Bag
0.200 In
5.08 mm
200
5
200
5
No
Partial
Yes
No
0°C to +75°C
Through Hole
Search Parts in this Series
2599Series
Mates With
KK® Crimp Housing 3001 , 5058. 3002 KK®
PC Board Connector
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Process Temperature max. C
10
Wave Capable (TH only)
260
Material Info
Old Part Number
2599M02A
Reference - Drawing Numbers
Product Specification

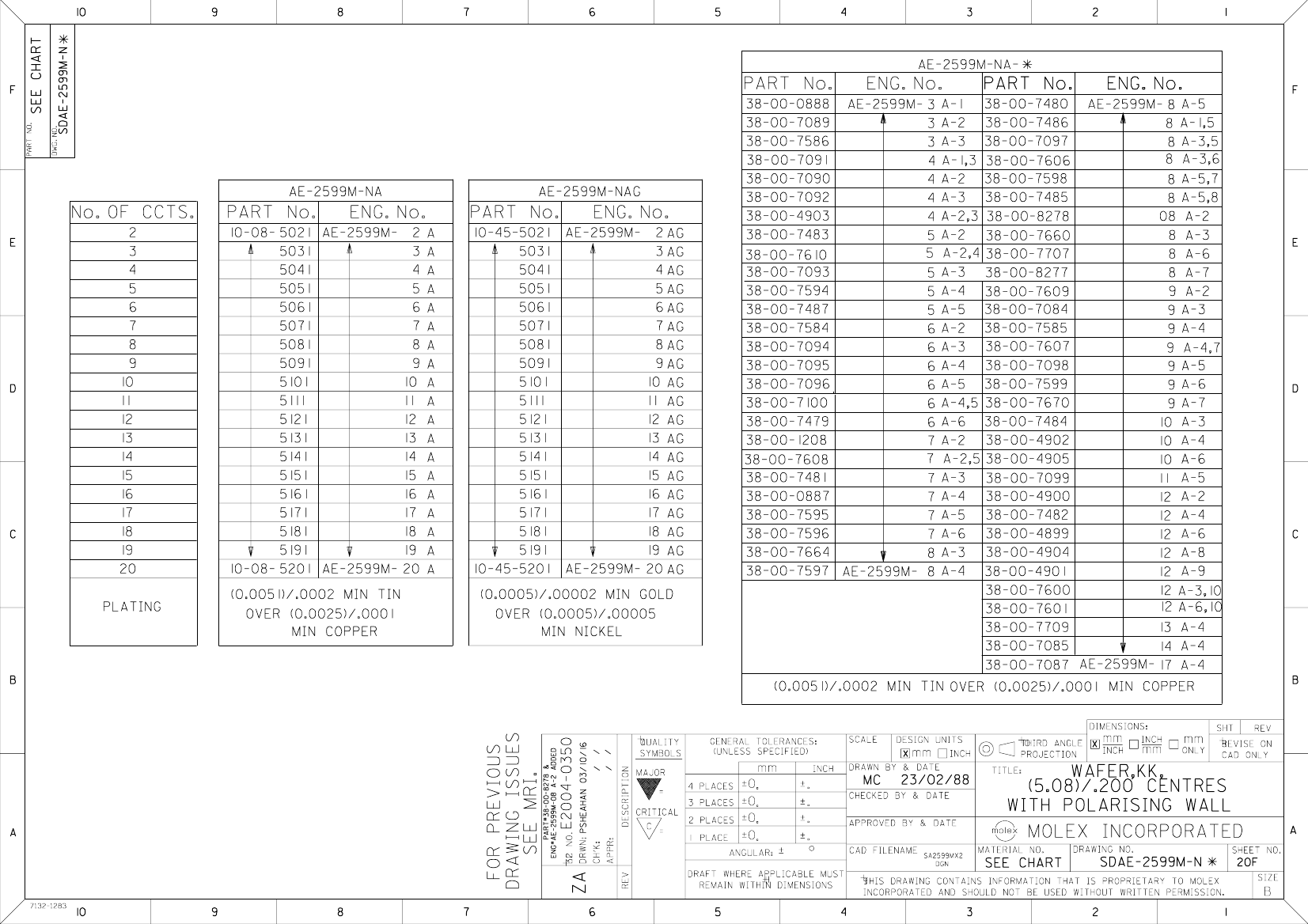

Sales Drawing
PS-99020-0087
SDAE-2599M-N*
This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
