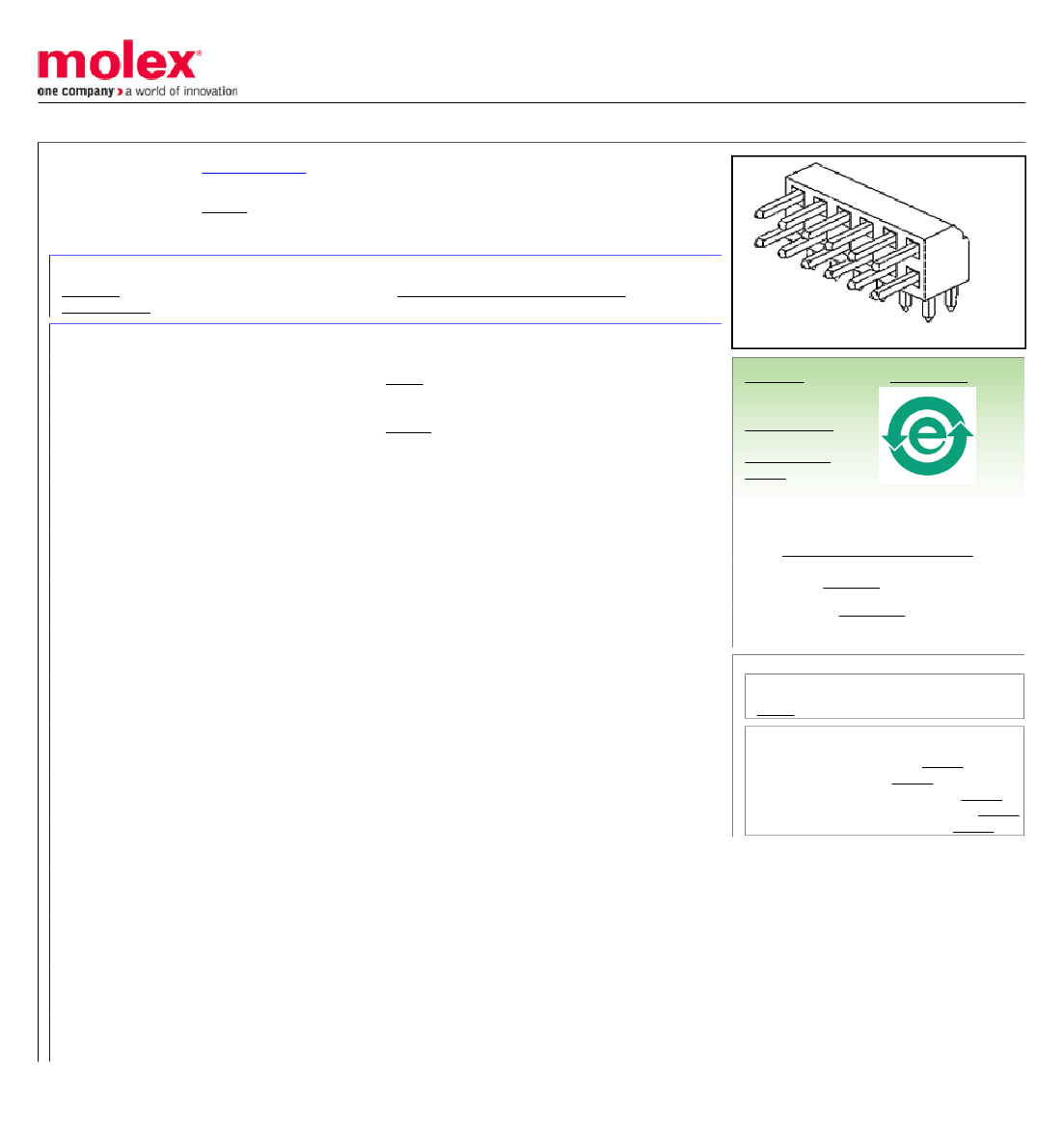

Part Number:
Status:
Overview:
Description:
0877601268
Active
milligrid
2.00mm (.079") Pitch Milli-Grid™ Header, Right Angle, 12 Circuits, 2.54µm (100µ") Tin
(Sn) over Nickel Plating, Tray, Lead-free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
87760
Board-to-Board, Wire-to-Board
Lead-free version of 87049 series
milligrid
Milli-Grid™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
12
12
Black
No
No
No
None
None
Tin
Nickel
High Temperature Thermoplastic
2
Right Angle
0.102 In
2.60 mm
No
None
0.062 In
1.60 mm
Tray
0.079 In
2.00 mm
0.079 In
2.00 mm
101.6
2.54
50
1.27
No
No
No
Yes
Yes
-55°C to +105°C
Through Hole
Search Parts in this Series
87760Series
Mates With
Milli-Grid™ Crimp Terminal 50394. Milli-
Grid™ Crimp Housing 51110. Milli-Grid™
Flex-to-Board Vertical Receptacle 79108.
Milli-Grid™ SMT Vertical Receptacle 79109.
Milli-Grid™ Vertical Receptacles 79107.
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
14
Wave Capable (TH only)
1
265
Material Info

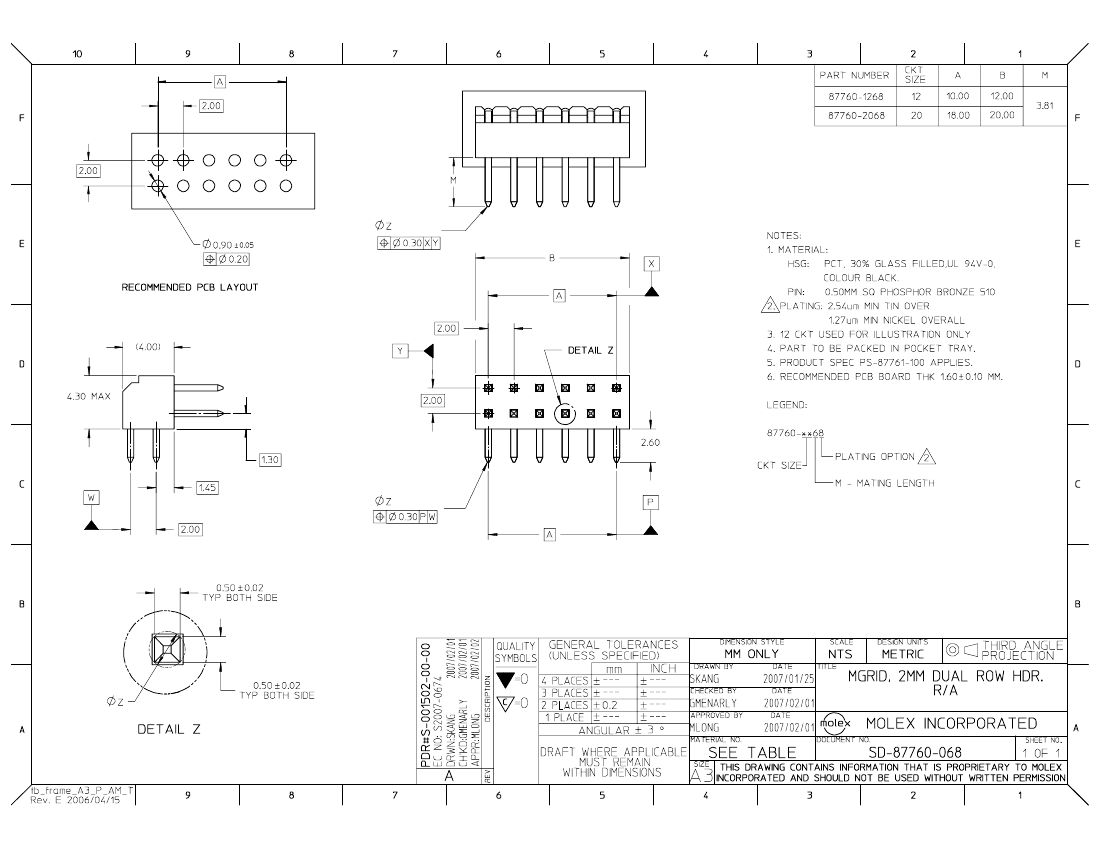

Reference - Drawing Numbers
Sales Drawing
SD-87760-068
