Part Number:
Status:
Overview:
Description:
0901362312
Active
cgrid_iii
2.54mm (.100") Pitch C-Grid III™ Header, Single Row, Right Angle, Shrouded, 12
Circuits, 0.76µm (30µ") Gold (Au) Selective Plating
Documents:
3D Model

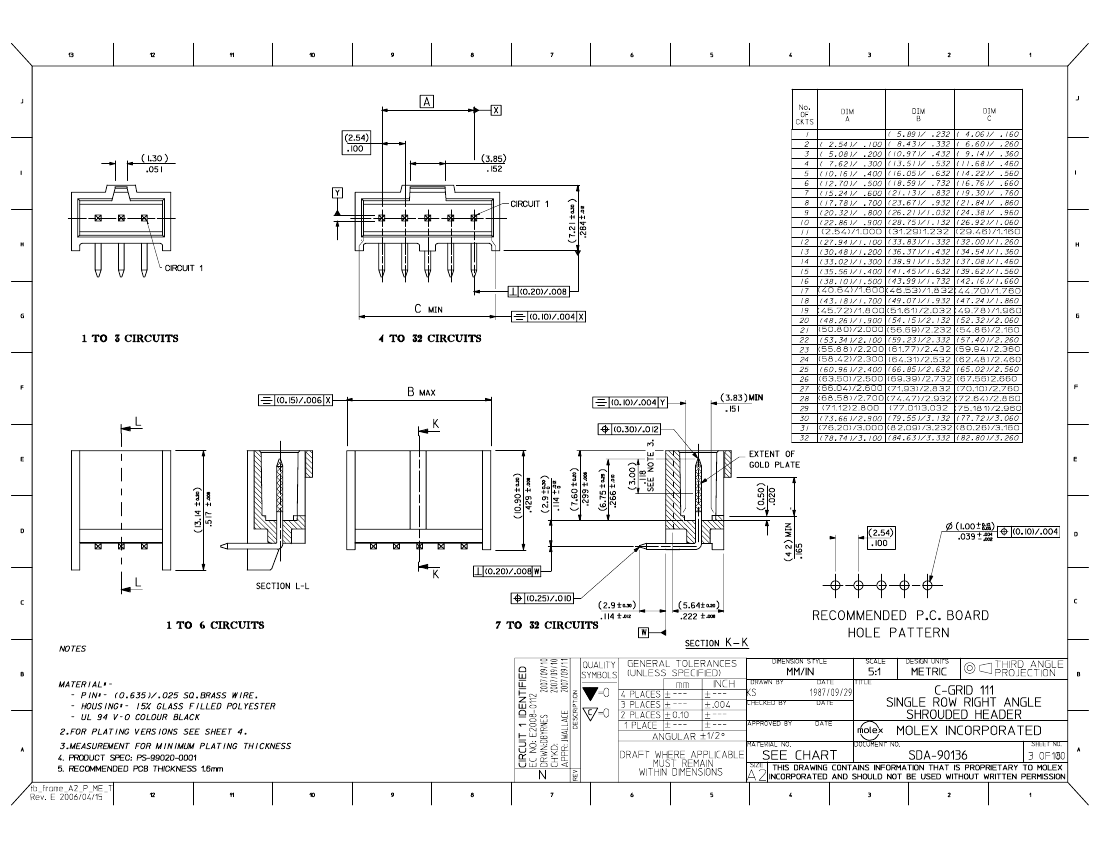

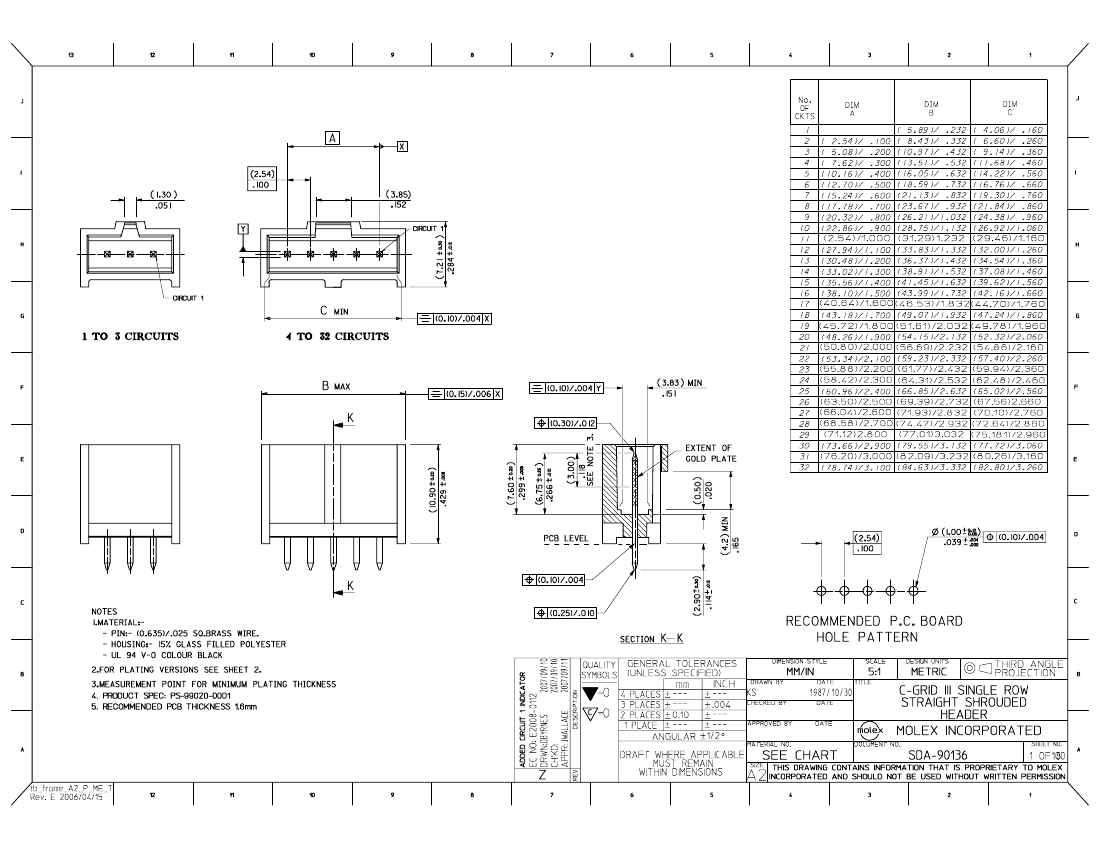

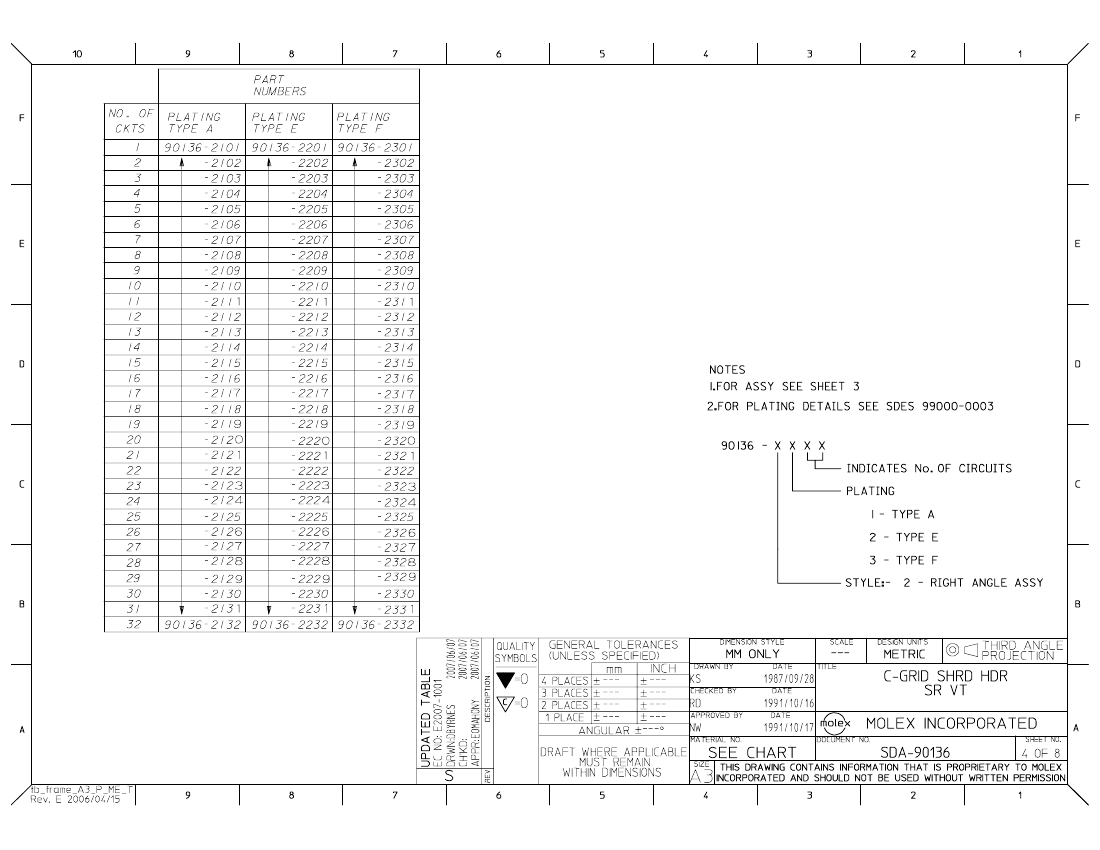

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
90136
Wire-to-Board
cgrid_iii
C-Grid III™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
12
12
Black
No
No
No
None
Yes
Brass
Gold
Tin
Polyester
1
Right Angle
0.114 In
2.90 mm
No
None
0.062 In
1.60 mm
Tray
0.100 In
2.54 mm
30.48
0.762
120
3
No
Fully
No
-55°C to +125°C
Through Hole
Search Parts in this Series
90136Series
Mates With
90123 C-Grid III™ Modular Crimp Housing.
90156 C-Grid III™ Crimp Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
350V
