Rad-Hard 16 Channel CMOS Analog Multiplexer
with High-Z Analog Input Protection
HS-1840ARH, HS-1840BRH
The HS-1840ARH, HS-1840BRH are radiation hardened,
monolithic 16 channel multiplexers constructed with the
Intersil Rad-Hard Silicon Gate, bonded wafer, Dielectric
Isolation process. They are designed to provide a high input
impedance to the analog source if device power fails
(open), or the analog signal voltage inadvertently exceeds
the supply by up to
±35V,
regardless of whether the device
is powered on or off. Excellent for use in redundant
applications, since the secondary device can be operated in
a standby unpowered mode affording no additional power
drain. More significantly, a very high impedance exists
between the active and inactive devices preventing any
interaction. One of sixteen channel selections is controlled
by a 4-bit binary address plus an Enable-Inhibit input which
conveniently controls the ON/OFF operation of several
multiplexers in a system. All inputs have electrostatic
discharge protection. The HS-1840ARH, HS-1840BRH are
processed and screened in full compliance with
MIL-PRF-38535 and QML standards. The devices are
available in a 28 Ld SBDIP and a 28 Ld Ceramic Flatpack.
Specifications for Rad Hard QML devices are
controlled by the Defense Supply Center in
Columbus (DSCC). The SMD numbers listed here
must be used when ordering.
Detailed Electrical Specifications for these devices
are contained in SMD 5962-95630. A “hot-link” is
provided on our homepage for downloading.
http://www.intersil.com/spacedefense/space.htm
HS-1840ARH, HS-1840BRH
Features
• Electrically Screened to SMD # 5962-95630
• QML Qualified per MIL-PRF-38535 Requirements
• Pin-to-Pin for Intersil’s HS-1840RH and HS-1840/883S
• Improved Radiation Performance
- Gamma Dose (γ) 3x10
5
RAD(Si)
• Improved r
DS(ON)
Linearity
• Improved Access Time 1.5µs (Max) Over Temp and
Post Rad
• High Analog Input Impedance 500MΩ During Power
Loss (Open)
•
±35V
Input Overvoltage Protection (Power On or Off)
• Dielectrically Isolated Device Islands
• Excellent in Hi-Rel Redundant Systems
• Break-Before-Make Switching
• No Latch-Up
Ordering Information
ORDERING
NUMBER
5962F9563002QXC
5962F9563002QYC
5962F9563002VXC
5962F9563002VYC
HS1-1840ARH/PROTO
HS9-1840ARH/PROTO
HS1-1840ARH-T
5962F9563002V9A
5962F9563003QXC
INTERNAL
MKT. NUMBER
HS1-1840ARH-8
HS9-1840ARH-8
HS1-1840ARH-Q
HS9-1840ARH-Q
HS1-1840ARH/PROTO
HS9-1840ARH/PROTO
HS1-1840ARH-T
HS0-1840ARH-Q
HS1-1840BRH-8
TEMP. RANGE
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
Q 5962F95 63003QXC
28 Ld SBDIP
PART
MARKING NO.
Q 5962F95 63002QXC
Q 5962F95 63002QYC
Q 5962F95 63002VXC
Q 5962F95 63002VYC
HS1- 1840ARH /PROTO
HS9- 1840ARH /PROTO
Q 5962R95 63002TXC
PACKAGE
28 Ld SBDIP
28 Ld Flatpack
28 Ld SBDIP
28 Ld Flatpack
28 Ld SBDIP
28 Ld Flatpack
28 Ld SBDIP
September 14, 2010
FN4355.3
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2002, 2009, 2010. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.

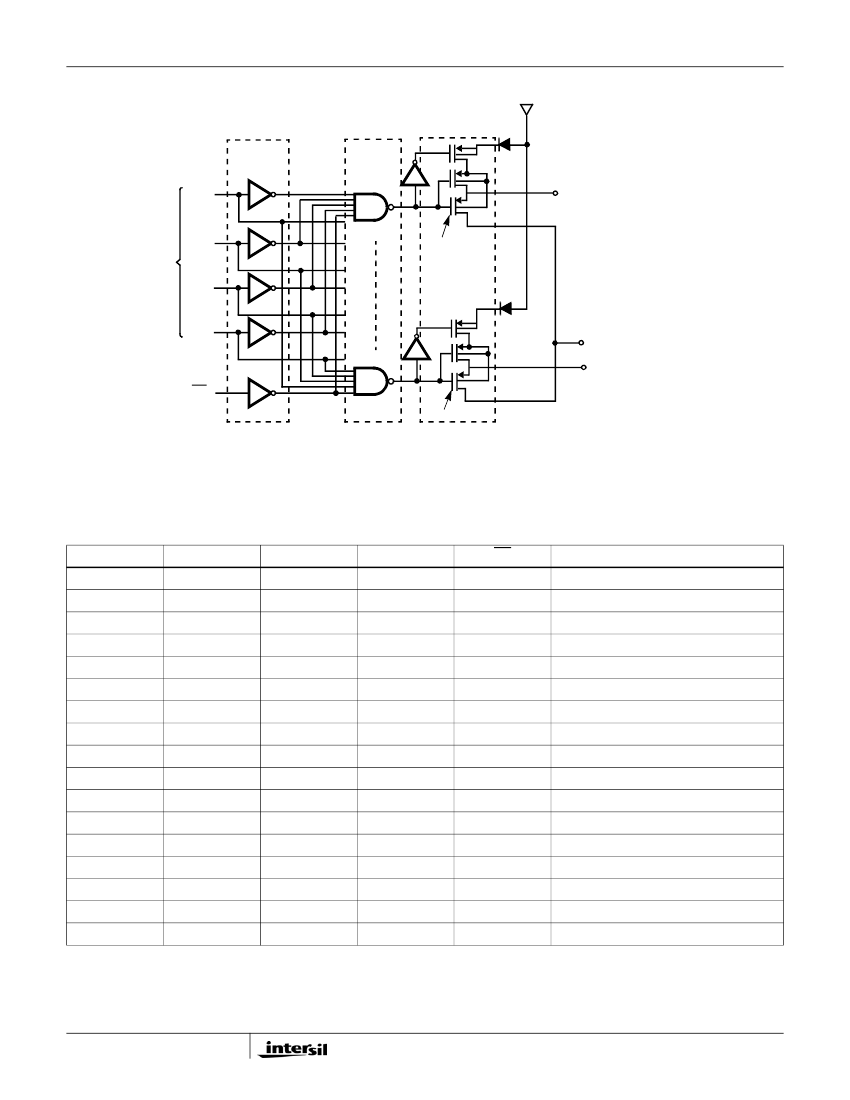

HS-1840ARH, HS-1840BRH
Burn-In/Life Test Circuits
R
+V
S
R
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
F3
F5
F1
F2
GND
V
R
R
-V
S
+V
S
R
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
R
-V
S
R
GND
F4
R
NOTE:
V
S
+ = +15.5V
±0.5V,
V
S
- = -15.5V
±0.5V.
R = 1kΩ
±5%.
C
1
= C
2
= 0.01µF
±10%,
1 EACH PER SOCKET, MINIMUM.
D
1
= D
2
= 1N4002, 1 EACH PER BOARD, MINIMUM.
INPUT SIGNALS:
SQUARE WAVE, 50% DUTY CYCLE, 0V TO 15V PEAK
±10%.
F1 = 100kHz; F2 = F1/2; F3 = F1/4; F4 = F1/8; F5 = F1/16.
NOTE:
R = 1kΩ
±5%,
1/4W.
C
1
= C
2
= 0.01µF MINIMUM, 1 EACH PER SOCKET, MINIMUM.
V
S
+ = 15.5V
±0.5V,
V
S
- = -15.5V
±0.5V,
V
R
= 15.5
±0.5V

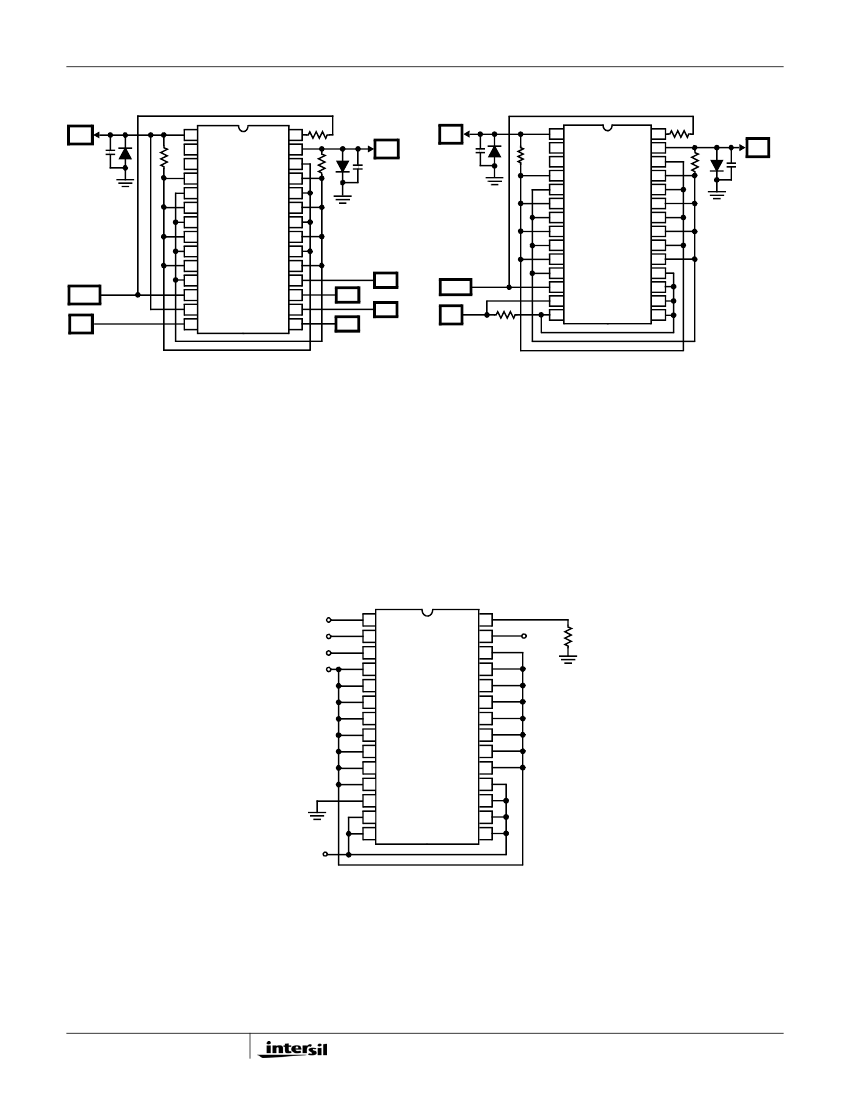

FIGURE 1. DYNAMIC BURN-IN AND LIFE TEST CIRCUIT
NOTES:
1. The above test circuits are utilized for all package types.
2. The Dynamic Test Circuit is utilized for all life testing.
FIGURE 2. .STATIC BURN-IN TEST CIRCUIT
Irradiation Circuit
HS-1840ARH, HS-1840BRH
+15V
NC
NC
+1V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
+5V
28
27
26
25
24
23
22
21
20
19
18
17
16
15
-15V
1kΩ
NOTE:
3. All irradiation testing is performed in the 28 lead CERDIP package.
4
FN4355.3

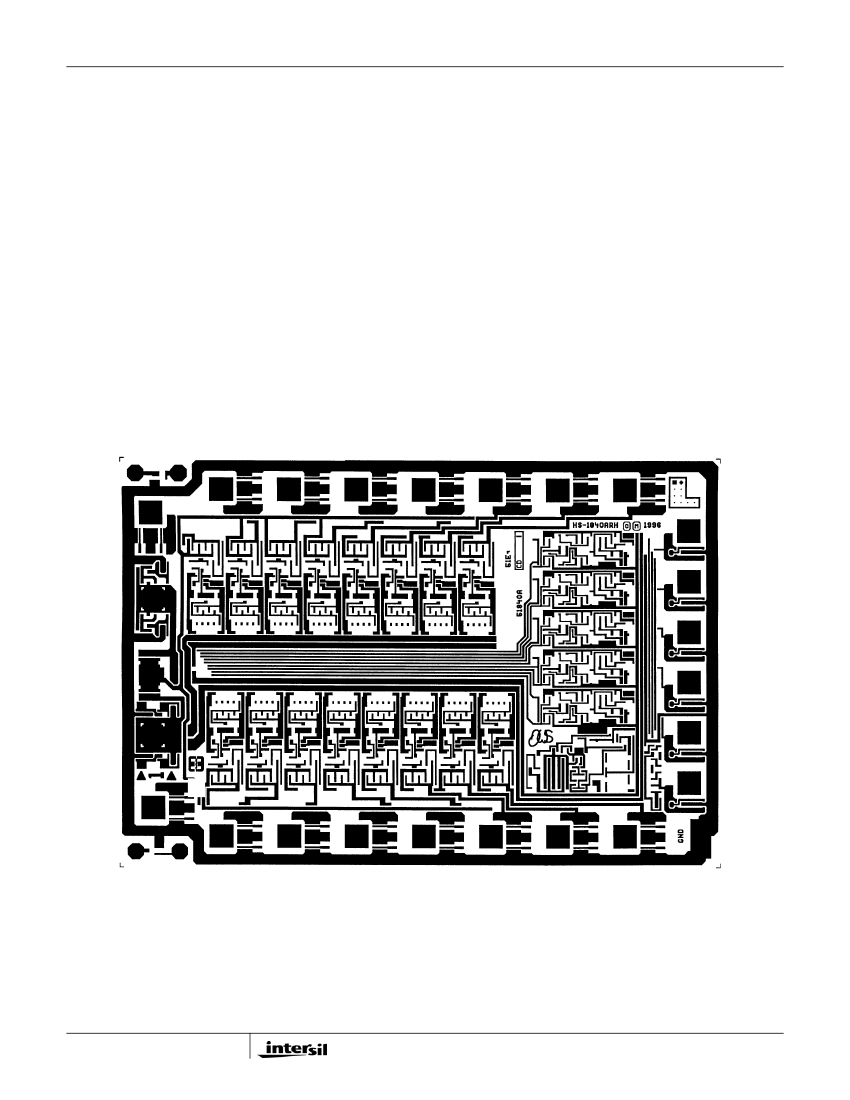

September 14, 2010
