Part Number:
Status:
Overview:
Description:
0559172030
Active
microclasp
2.00mm (.079") Pitch MicroClasp™ Wire-to-Board Header, Dual Row, Vertical, 20
Circuits, without PCB Locator
Documents:
3D Model
Drawing (PDF)
Product Specification PS-51353-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
55917
Wire-to-Board
microclasp
MicroClasp™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
20
20
Natural
30
No
94V-0
No
No
None
Yes
Tin
Tin
Polyester
2
Vertical
0.126 In
3.20 mm
No
Yes
0.062 In
1.60 mm
Tray
0.079 In
2.00 mm
Fully
No
No
-25°C to +85°C
Through Hole
Search Parts in this Series
55917Series
Mates With
51353 MicroClasp™ Wire-to-Board
Receptacle Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
SPK-55917-001
PS-51353-003, RPS-501844-001, RPS-51353-008,
RPS-51353-009, RPS-51353-014, RPS-51353-016,
RPS-51353-018, RPS-51353-019, RPS-51353-020,
RPS-51353-024, RPS-51353-025, RPS-51353-026,
RPS-51353-030
SD-55917-005

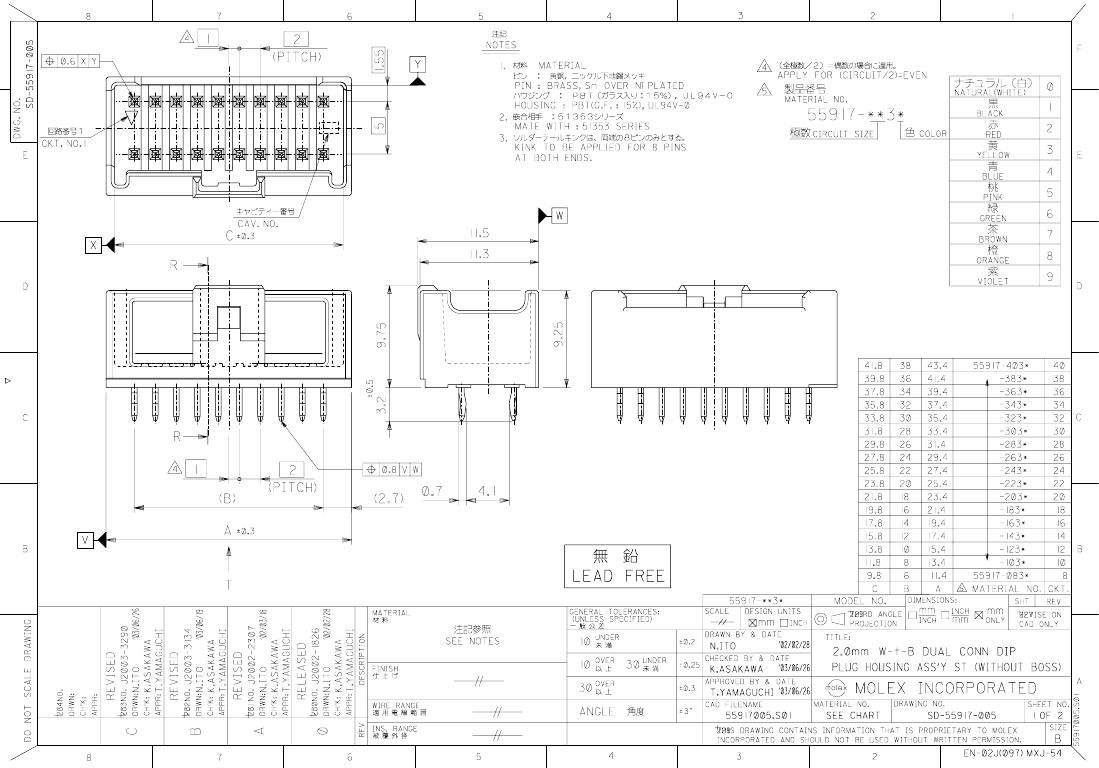

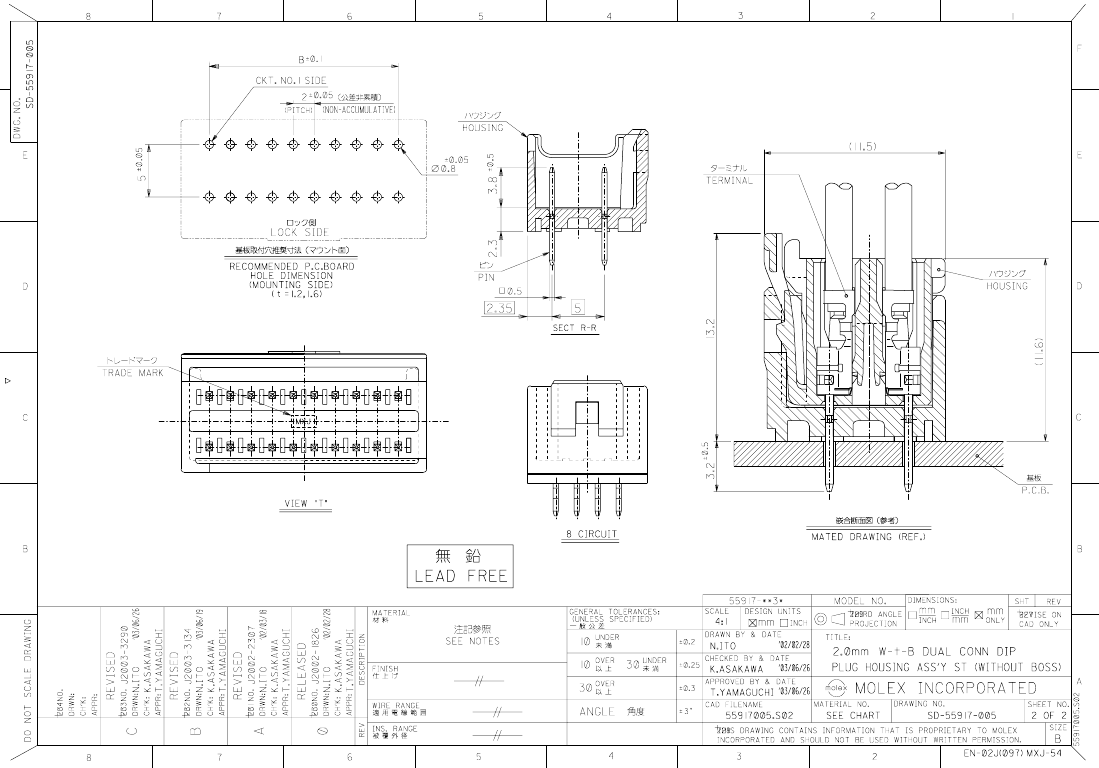

Sales Drawing
