704750427 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 704750427

Preview

704750427: Description2.54mm; File Size154KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

704750427 Overview

2.54mm

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014451808

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Male, Single

Row, Version D, Back Ribs, for Wire Size 28, 3.81µm (150µ") Tin (Sn), 8 Circuits

Documents:

3D Model

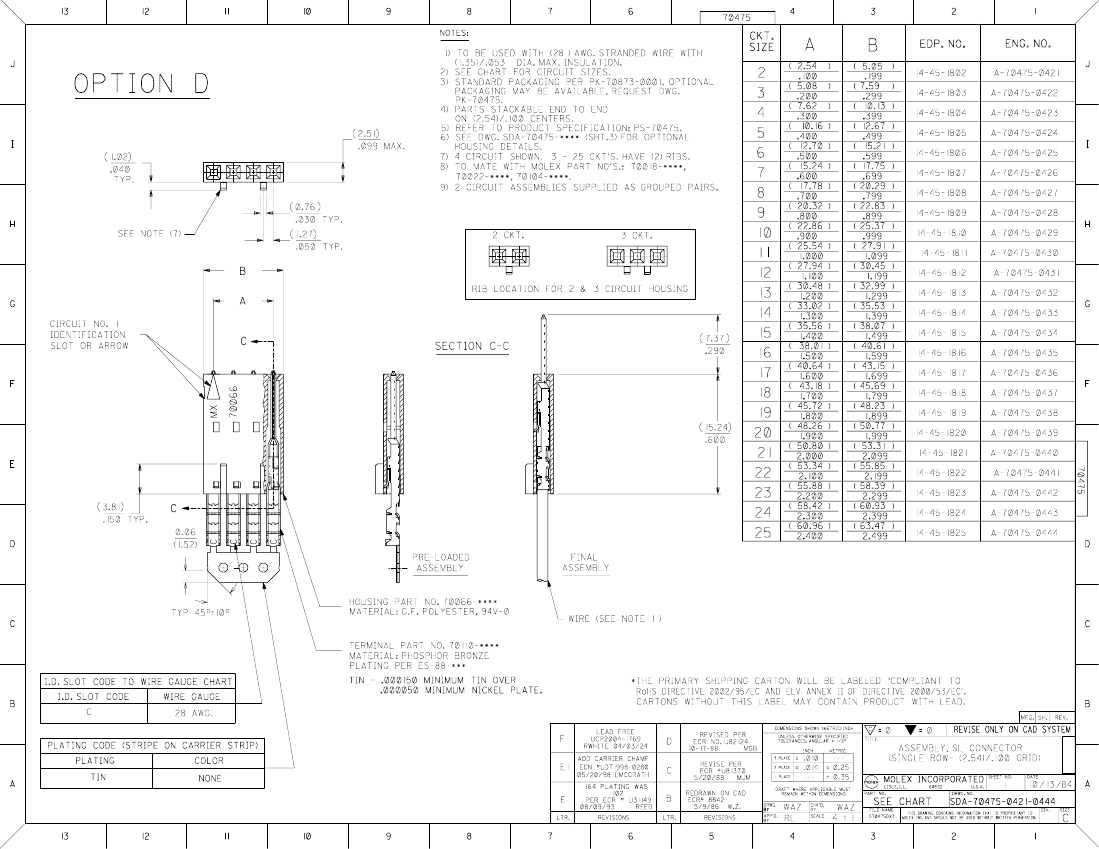

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70475

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

None

Phosphor Bronze

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

150

3.81

150

3.81

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

70475Series

Mates With

70004 Interim Clip (Single Row), 70013

Interim Clip (Dual Row)

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.2A

250V

Material Info

704750427 Related Products

	704750427	A-70475-0427
Description	2.54mm	2.54mm
