51915-297

Description
Board Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size162KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51915-297 Overview

Board Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

51915-297 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
body width0.47 inch
subject depth0.82 inch
body length3.2 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS8P10
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
Dielectric withstand voltage2500VDC V
Durability200 Cycles
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number51915
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Termination typeSOLDER
Total number of contacts18
Evacuation force-minimum value.1668 N

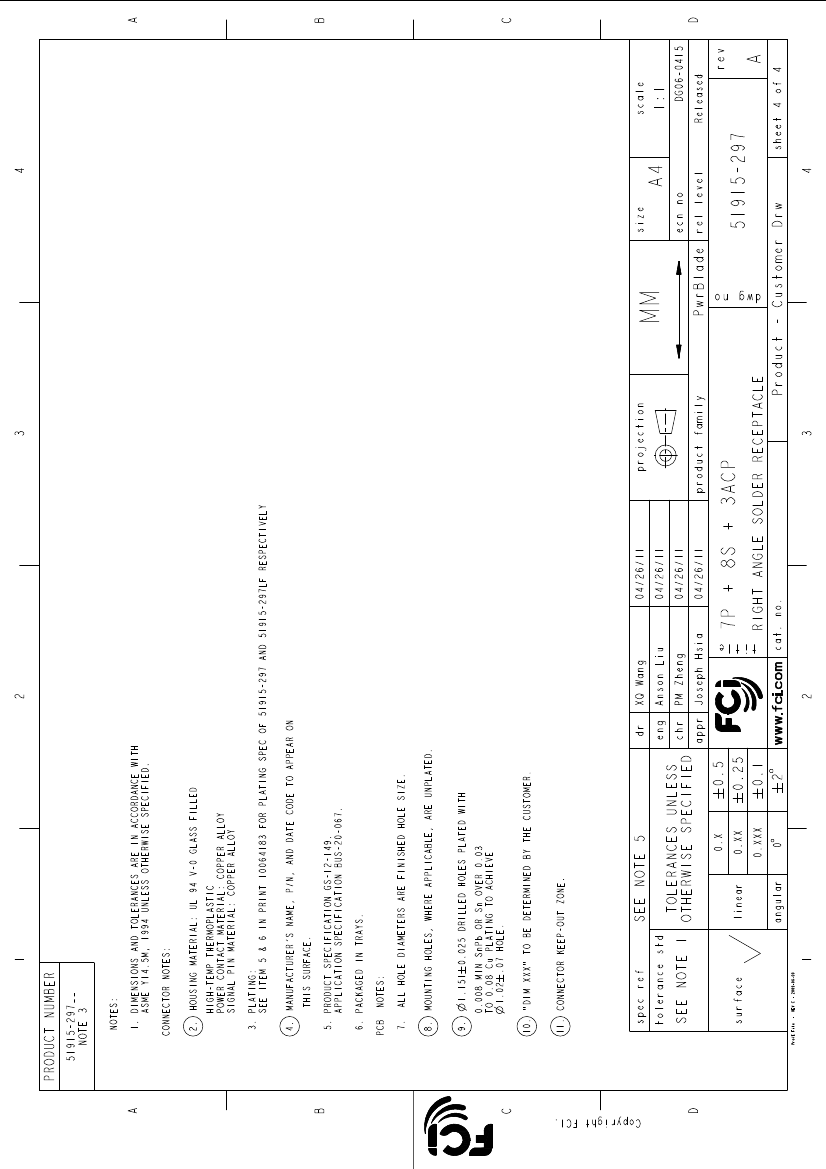

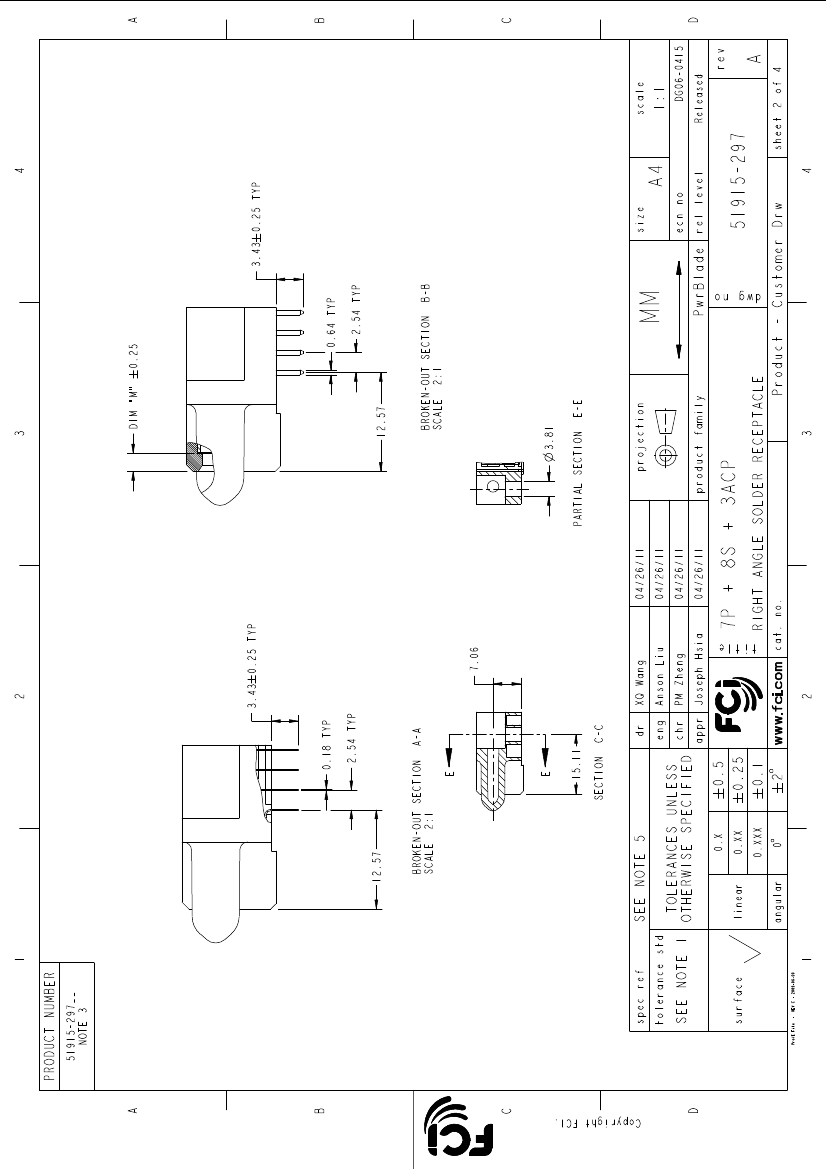

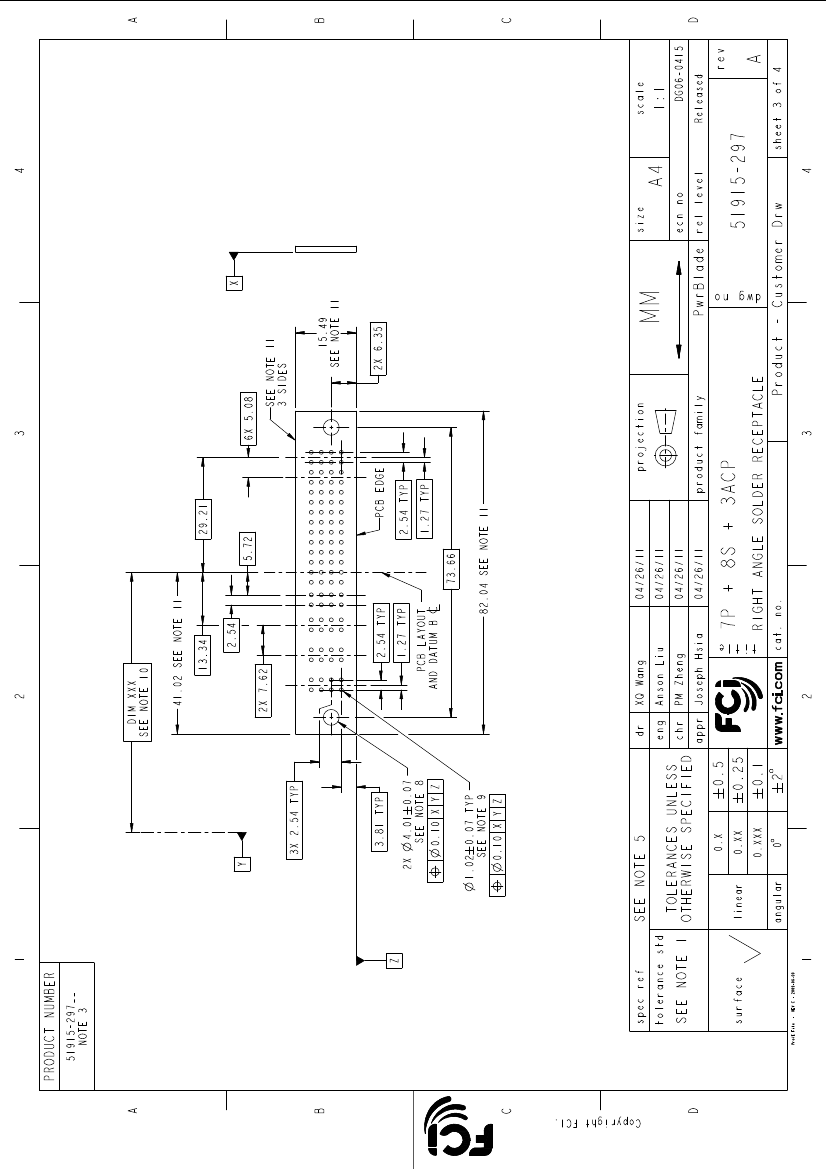

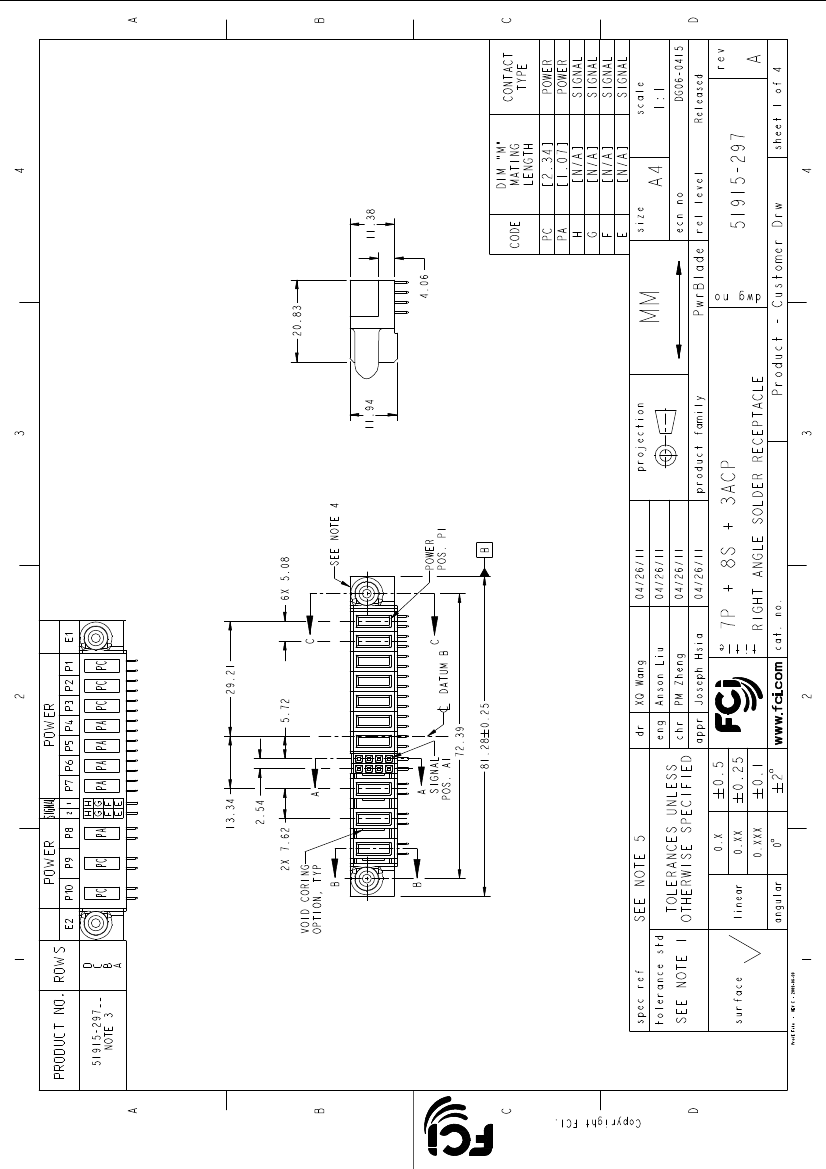

PDS: Rev :A
STATUS:Released
Printed: May 05, 2011

51915-297 Related Products

51915-297 51915-297LF
Description Board Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle Board Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified? incompatible conform to
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
body width 0.47 inch 0.47 inch
subject depth 0.82 inch 0.82 inch
body length 3.2 inch 3.2 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S8P10 S8P10
Contact completed and terminated TIN/LEAD OVER NICKEL TIN OVER NICKEL
Contact point gender MALE MALE
Contact material COPPER ALLOY COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
Manufacturer's serial number 51915 51915
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Termination type SOLDER SOLDER
Total number of contacts 18 18
Evacuation force-minimum value .1668 N .1668 N
