87759-4074 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87759-4074

87759-4074: Description40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size423KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87759-4074 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87759-4074	-	-	View	Buy Now

87759-4074 Overview

40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

87759-4074 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.551 inch
subject depth	0.106 inch
body length	1.571 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Manufacturer's serial number	87759
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

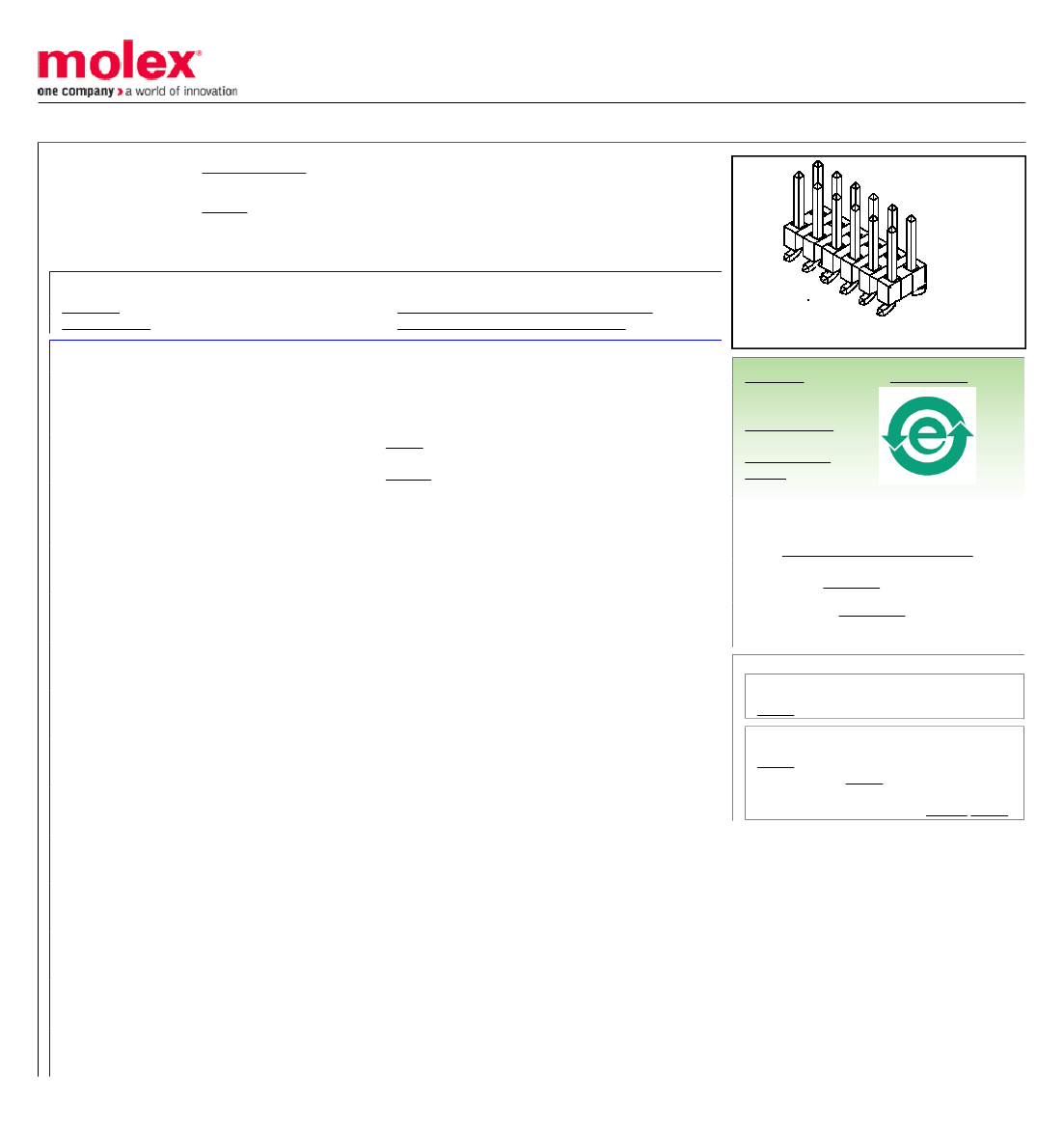

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877594074

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, 40 Circuits, 0.38µm

(15µ") Gold (Au) Selective Plating, with Pick-and-Place Cap, Tape and Reel Packaging,

without Press-fit Plastic Pegs, Lead-free

Documents:

3D Model

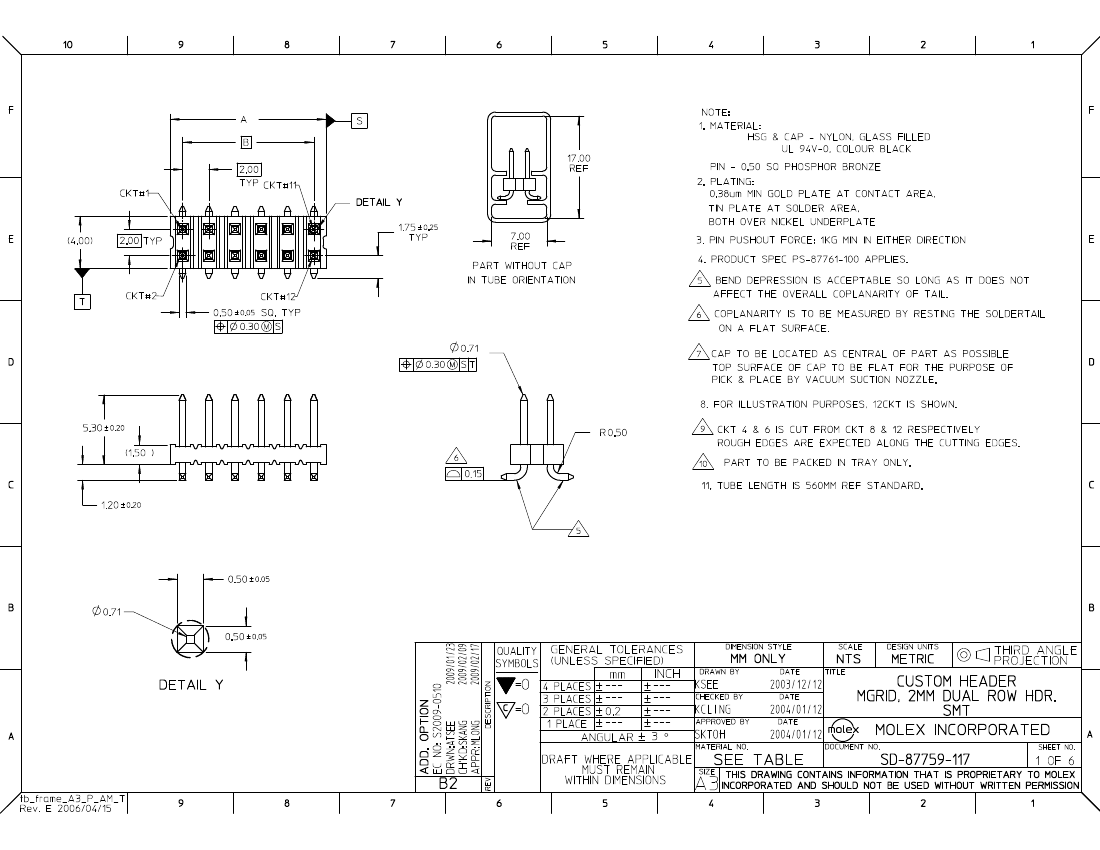

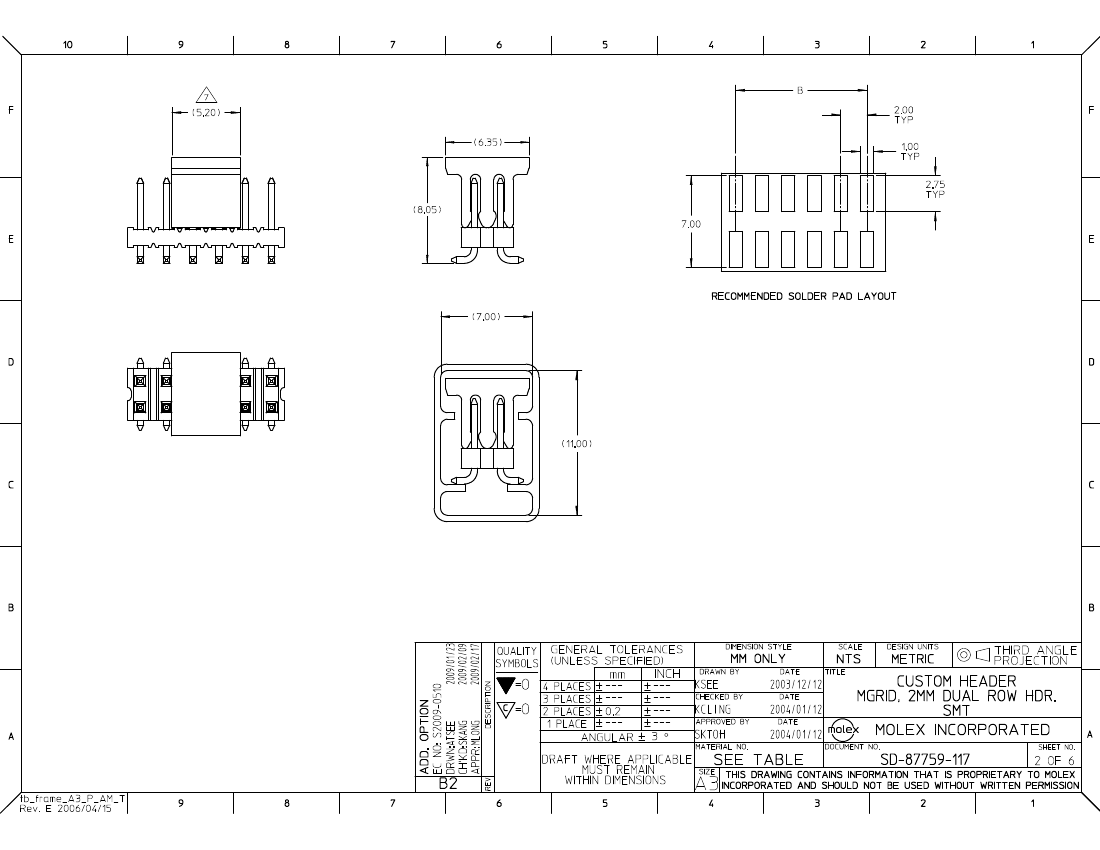

Drawing (PDF)

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87759

Board-to-Board

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Temperature Range - Operating

Yes

Black

100

94V-0

None

0.150 In

3.80 mm

Phosphor Bronze

Gold

Tin

Nylon

Vertical

None

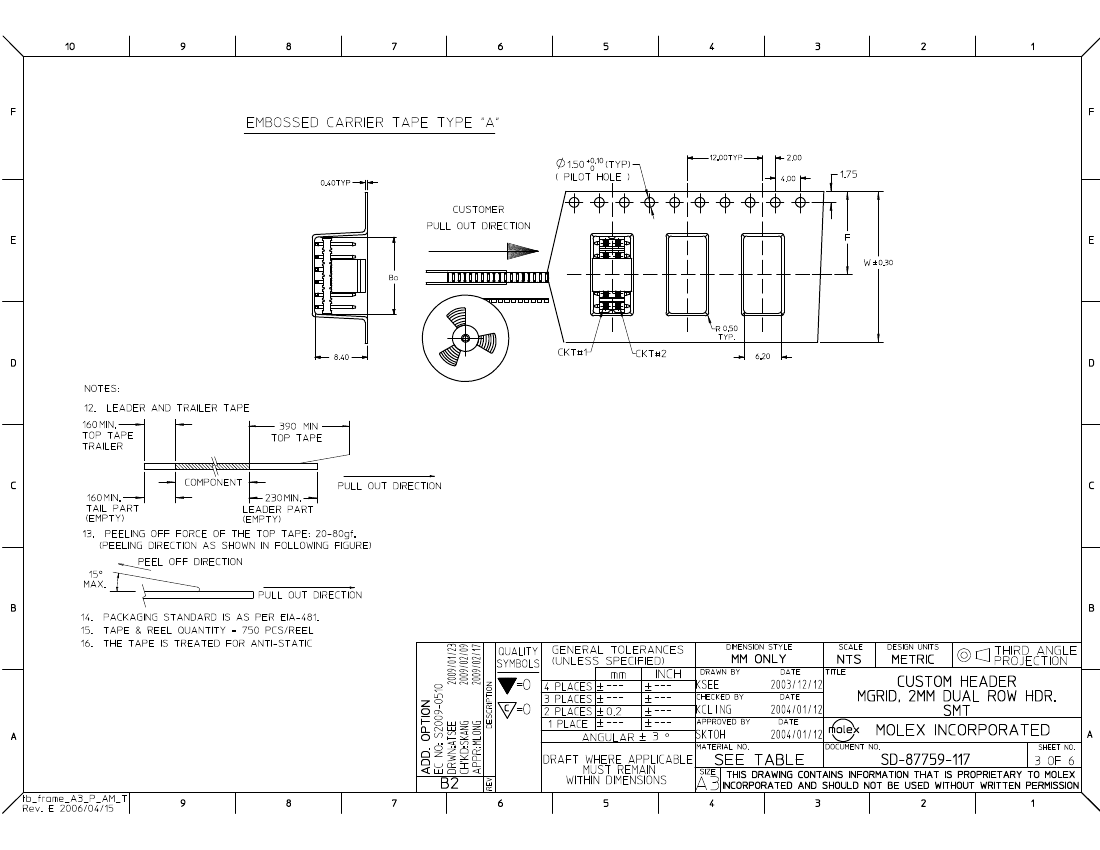

Embossed Tape on Reel

0.079 In

2.00 mm

0.079 In

2.00 mm

0.38

Pick and Place Cap

-55°C to +105°C

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87759Series

Mates With

79107 Milli-Grid™ Receptacle, Vertical,

Through Hole. 79108 Milli-Grid™ Flex-to-

Board, Vertical Receptacle. Milli-Grid™

Receptacle, Surface Mount. 79109. 87381

87759-4074 Related Products

	87759-4074	0877594074
Description	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT
