Film Capacitors
Metallized Polypropylene Film Capacitors (MKP)
Series/Type:
Date:
B32601L ... B32602L
October 2009
© EPCOS AG 2009. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Metallized polypropylene film capacitors (MKP)
High V AC (wound)
B32601L ... B32602L
Typical applications
Electronic ballasts (resonant circuits)
SMPS
High-frequency AC loads
Pulse circuits
Climatic
Max. operating temperature: 110
°C
Climatic category (IEC 60068-1): 55/110/56
Construction
Dielectric: metallized polypropylene (PP)
Wound capacitor technology
Epoxy resin coating (UL 94 V-0)
Features
Very high AC voltages for all frequency
ranges
Very small dimensions
High peak voltage for short time periods
High peak current
High pulse withstand capability

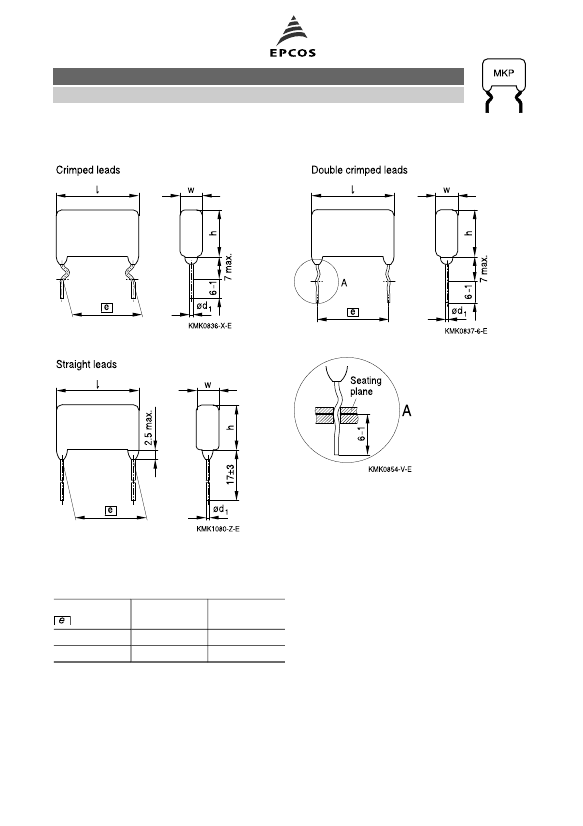

Terminals
Crimped wire leads, lead-free tinned, lead
length (6 1 mm) or min. 20 mm
Douple crimped wire leads, lead-free tinned
Straight wire leads, lead-free tinned, lead
length (17
±3
mm)
Different lead spacings available, lead length
(6 1 mm)
Marking
Manufacturer's logo, style and type,
rated capacitance (coded),
capacitance tolerance (code letter),
rated DC voltage, date of manufacture (coded)
Delivery mode
Bulk (untaped)
Taped (Ammo pack or reel)
For notes on taping, refer to chapter "Taping and packing“.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 25
B32601L
High V AC (wound)
Ordering codes and packing units (lead spacing 10 mm)
V
RMS
V
R
C
R
f
≤1
kHz
V AC
V DC nF
200
400
22
33
47
68
100
250
630
15
22
33
47
56
250
1000
4.7
6.8
10
15
22
500
1000
3.3
4.7
6.8
10
12
600
1600
1.2
1.5
2.2
3.3
4.1
Max. dimensions
w
×
h
×
l
mm
6.5
×
11.5
×
13.0
6.5
×
11.5
×
13.0
6.5
×
11.5
×
13.0
7.0
×
11.5
×
13.0
8.0
×
12.5
×
13.0
6.5
×
11.5
×
13.0
6.5
×
11.5
×
13.0
7.0
×
11.5
×
13.0
7.5
×
12.0
×
13.0
8.0
×
12.5
×
13.0
6.5
×
11.0
×
13.0
6.5
×
11.0
×
13.0
6.5
×
11.0
×
13.0
7.0
×
12.0
×
13.0
8.0
×
13.0
×
13.0
6.5
×
11.0
×
13.0
6.5
×
11.0
×
13.0
7.0
×
11.5
×
13.0
8.0
×
12.5
×
13.0
8.5
×
13.0
×
13.0
6.5
×
11.0
×
13.0
6.5
×
11.0
×
13.0
7.0
×
11.5
×
13.0
8.0
×
12.5
×
13.0
8.5
×
13.0
×
13.0
Ordering code
(composition see
below)
B32601L4223+***
B32601L4333+***
B32601L4473+***
B32601L4683+***
B32601L4104+***
B32601L6153+***
B32601L6223+***
B32601L6333+***
B32601L6473+***
B32601L6563+***
B32601L9472+***
B32601L9682+***
B32601L9103+***
B32601L9153+***
B32601L9223+***
B32601L0332+***
B32601L0472+***
B32601L0682+***
B32601L0103+***
B32601L0123+***
B32601L1122+***
B32601L1152+***
B32601L1222+***
B32601L1332+***
B32601L1412+***
Ammo
pack
pcs./MOQ
2200
2200
2200
2000
1800
2200
2200
2000
2000
1800
2200
2200
2200
2000
1800
2200
2200
2000
1800
1600
2200
2200
2000
1800
1600
Reel
pcs./
MOQ
4400
4400
4400
4000
3600
4400
4400
4000
3800
3600
4400
4400
4400
4000
3600
4400
4400
4000
3600
3400
4400
4400
4000
3600
3400
Untaped
pcs./
MOQ
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
MOQ = Minimum Order Quantity, consisting of 4 packing units.
Further E series and intermediate capacitance values on request.
Composition of ordering code
+ = Capacitance tolerance code:
K =
±10%
J =
±5%
*** = Packaging code:
289 = Ammo pack
189 = Reel
010 = Untaped crimped (lead length 6 1 mm)
008 = Untaped straight (lead length 17±3 mm)
020 = Double crimped (lead length 6 1 mm)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 25
