This document was generated on 03/03/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0040062015
Active
Panel Grounding Clip Crimp Terminal 42172, 14 AWG, 301 Stainless Steel, 1.27mm
(.050") Panel Thickness
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Crimp Terminals
42172
(2) 16 AWG
Yes
Panel Grounding Clip
Series

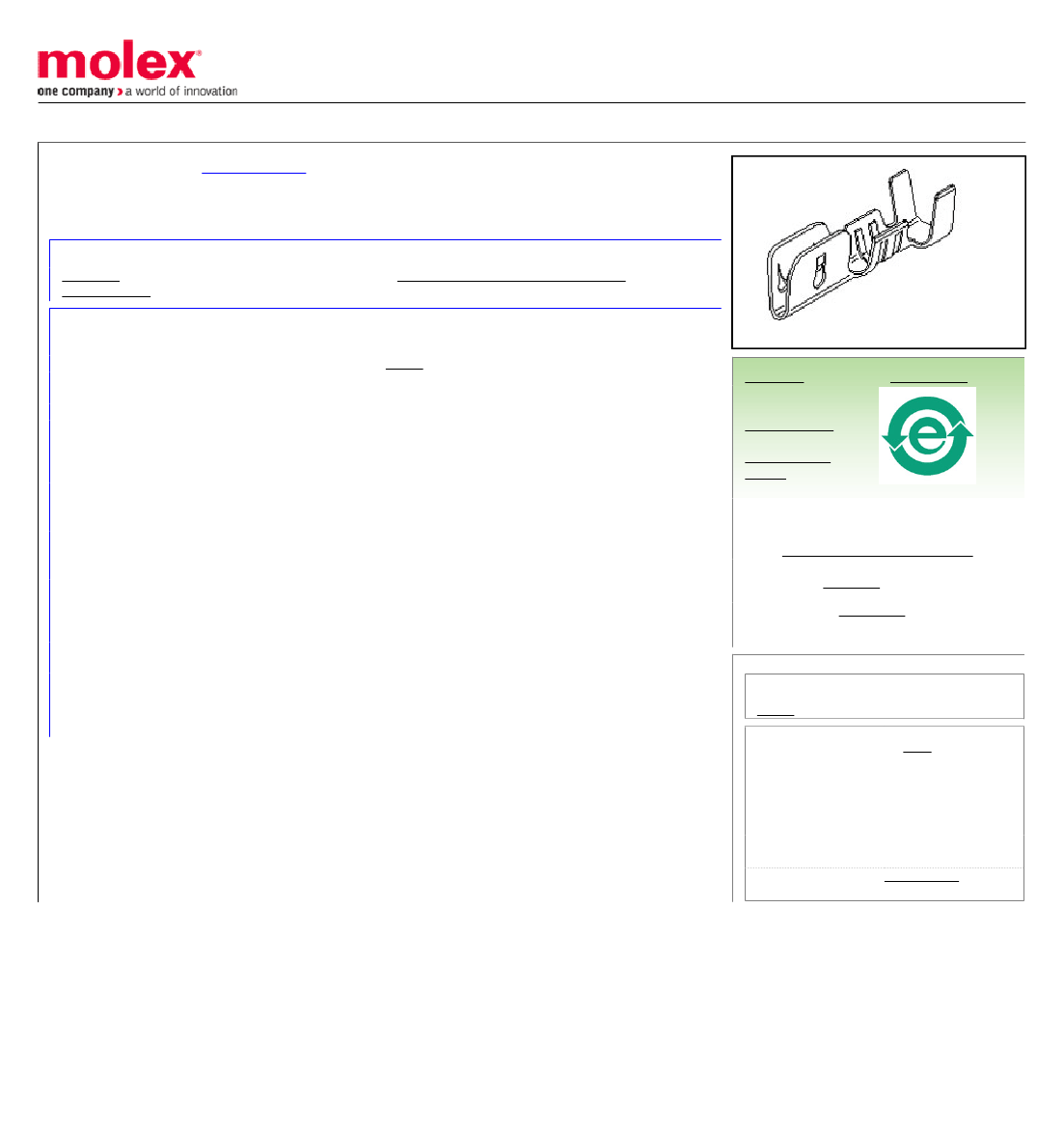

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Packaging Type
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Stainless Steel
Unplated
Reel
Crimp or Compression
3.00mm (.118") max
14
N/A
Electrical
CSA
UL
LR19980
E126412
Material Info
Old Part Number
42172BB1
Search Parts in this Series
42172Series
SD-42172-**
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638913000
Applicator
Reference - Drawing Numbers

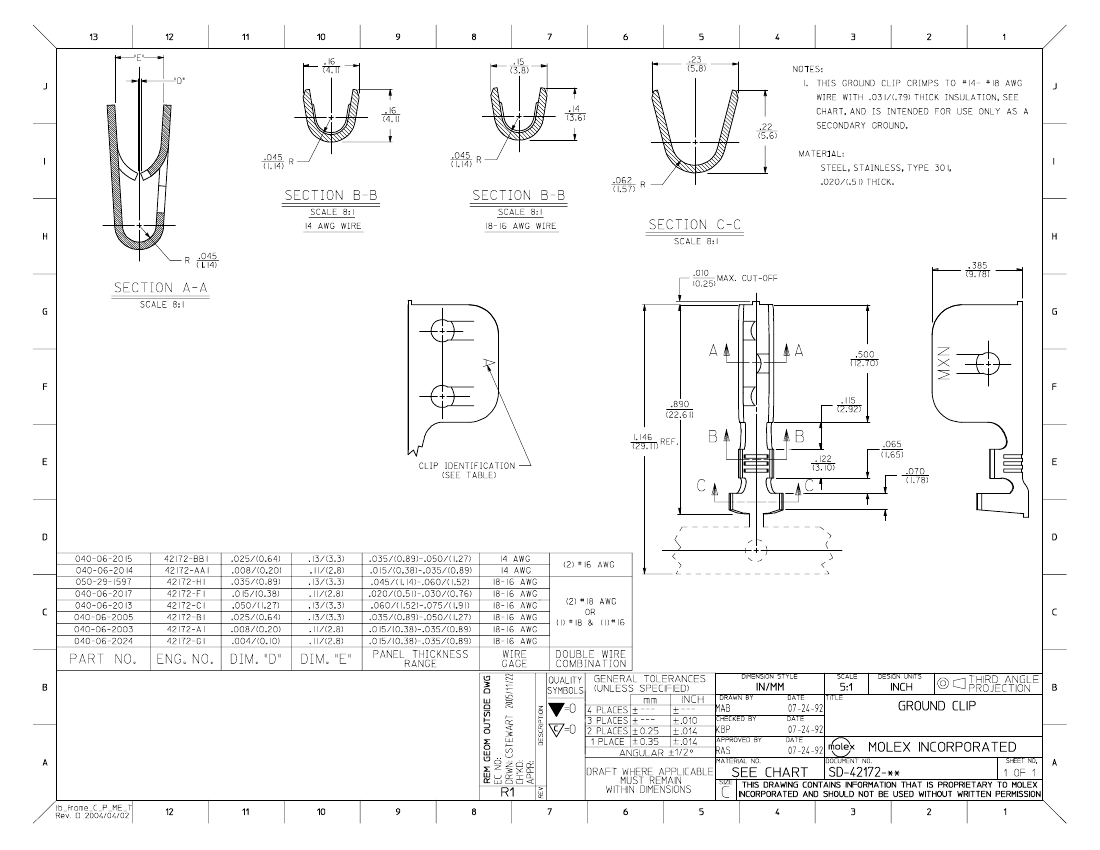

Sales Drawing
