53309-3470

Description
34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT
CategoryThe connector    The connector
File Size394KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

53309-3470 Overview

34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT

53309-3470 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Samacsys DescriptionBoard to Board & Mezzanine Connectors 0.8 BtB WaferAssy RA SMT 34Ckt EmbsTpPkg
body width0.185 inch
subject depth0.165 inch
body length0.606 inch
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationTIN OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorNATURAL
insulator materialPOLYPHENYLENE SULPHIDE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number53309
Plug contact pitch0.031 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.8 mm
Termination typeSURFACE MOUNT
Total number of contacts34
Base Number Matches1

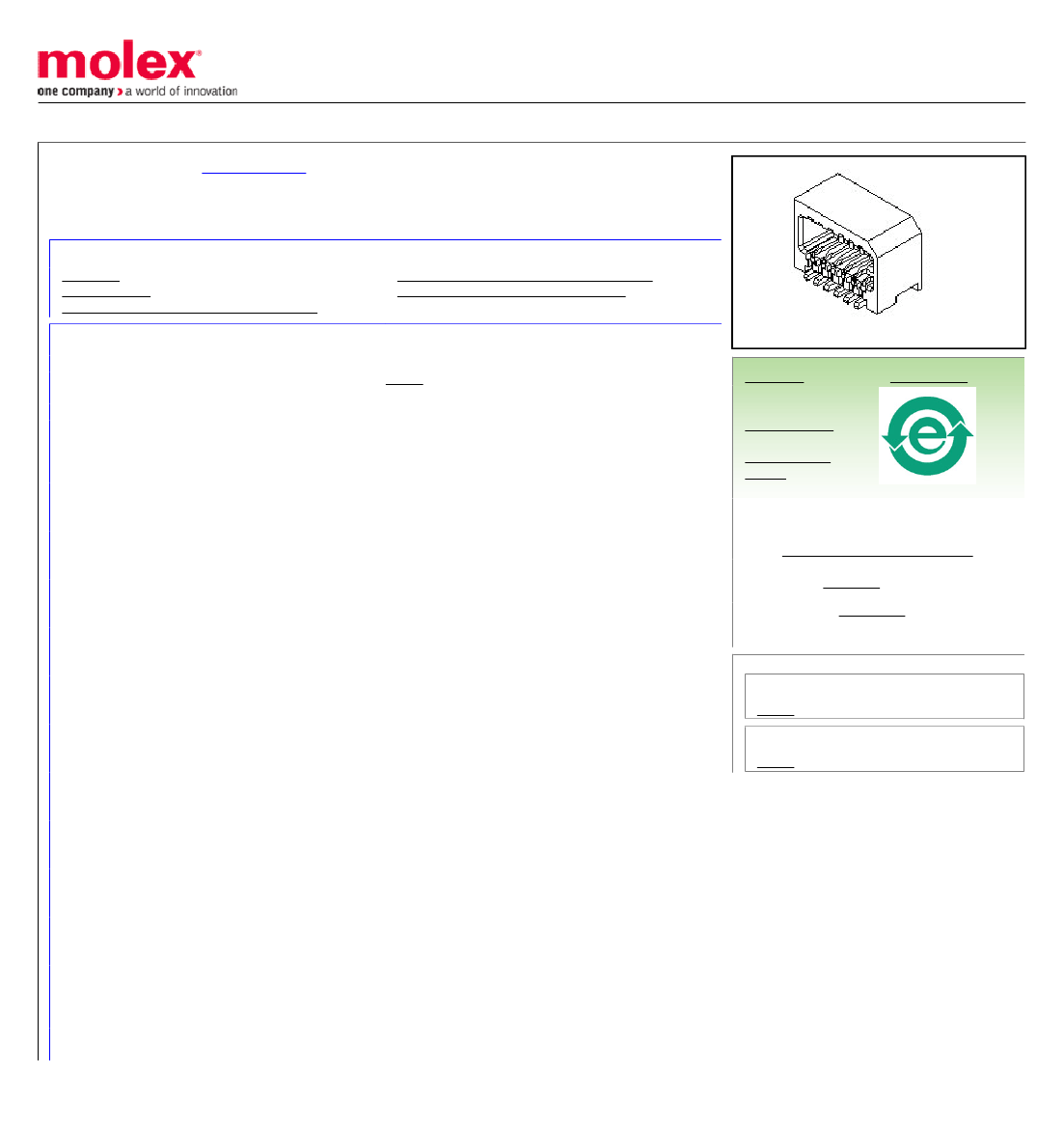

This document was generated on 04/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0533093470
Active
0.80mm (.031") Pitch Board-to-Board Header, Surface Mount, Dual Row, Right Angle,
Lead-free, 34 Circuits
Documents:
3D Model

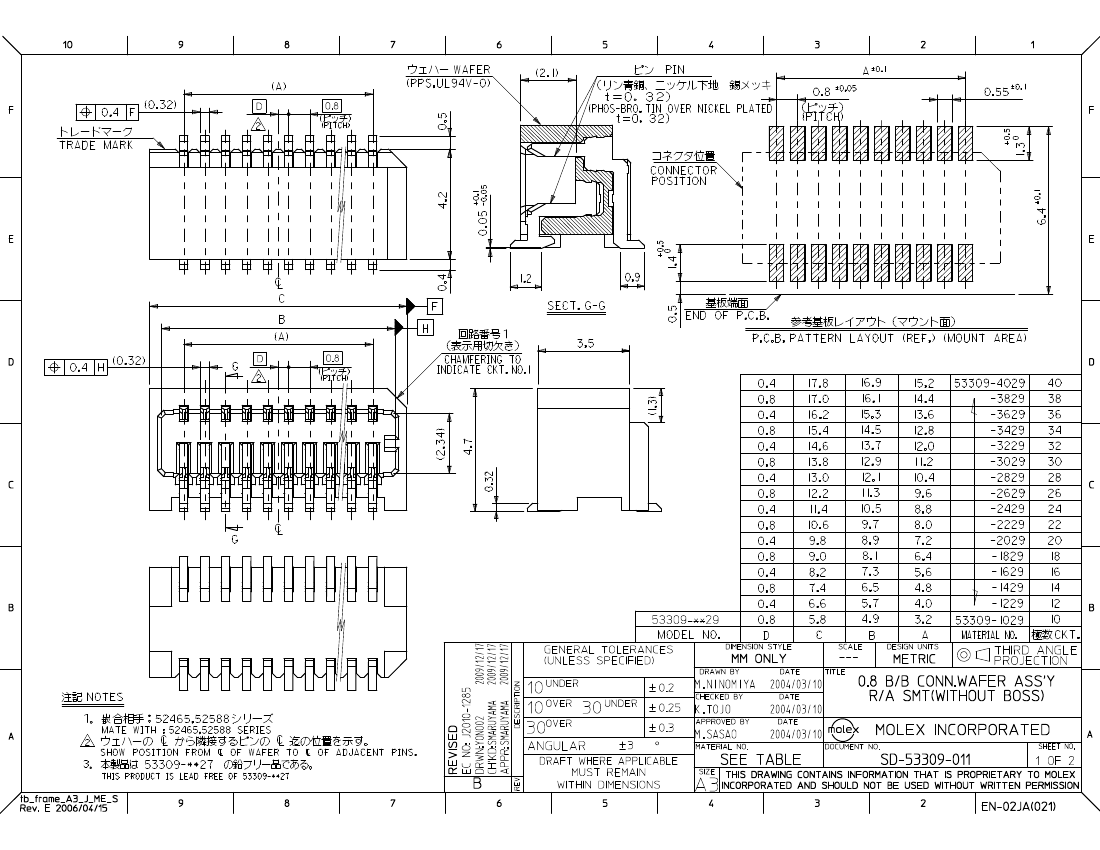

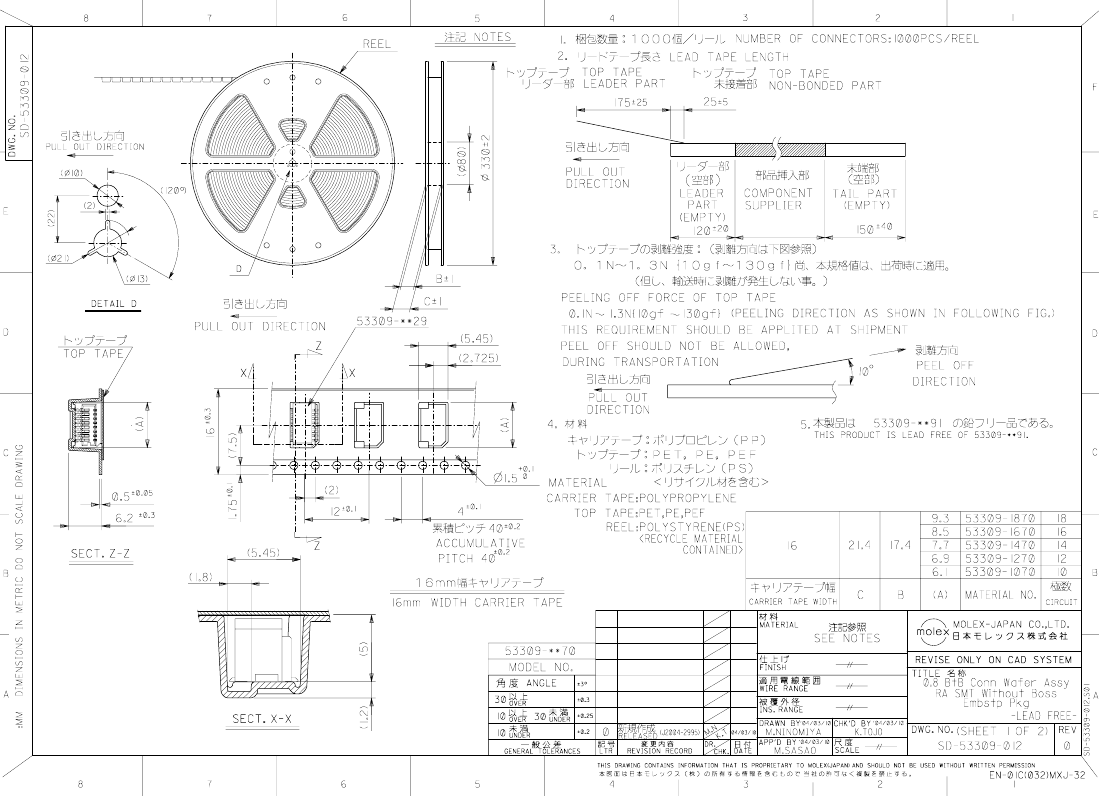

Drawing (PDF)
Product Specification PS-52465-014 (PDF)
Product Specification PS-52588-031 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Product Name
PCB Headers
53309
Board-to-Board
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
34
34
Natural
30
No
No
No
None
Yes
0.222 In
5.65 mm
Phosphor Bronze
Tin
Tin
High Temperature Thermoplastic
2
Right Angle
0.016 In, 0.020 In
0.40 mm, 0.50 mm
No
None
Embossed Tape on Reel
0.031 In
0.80 mm
40
1
40
1
No
Fully
No
-20°C to +105°C
Surface Mount
Search Parts in this Series
53309Series
Mates With

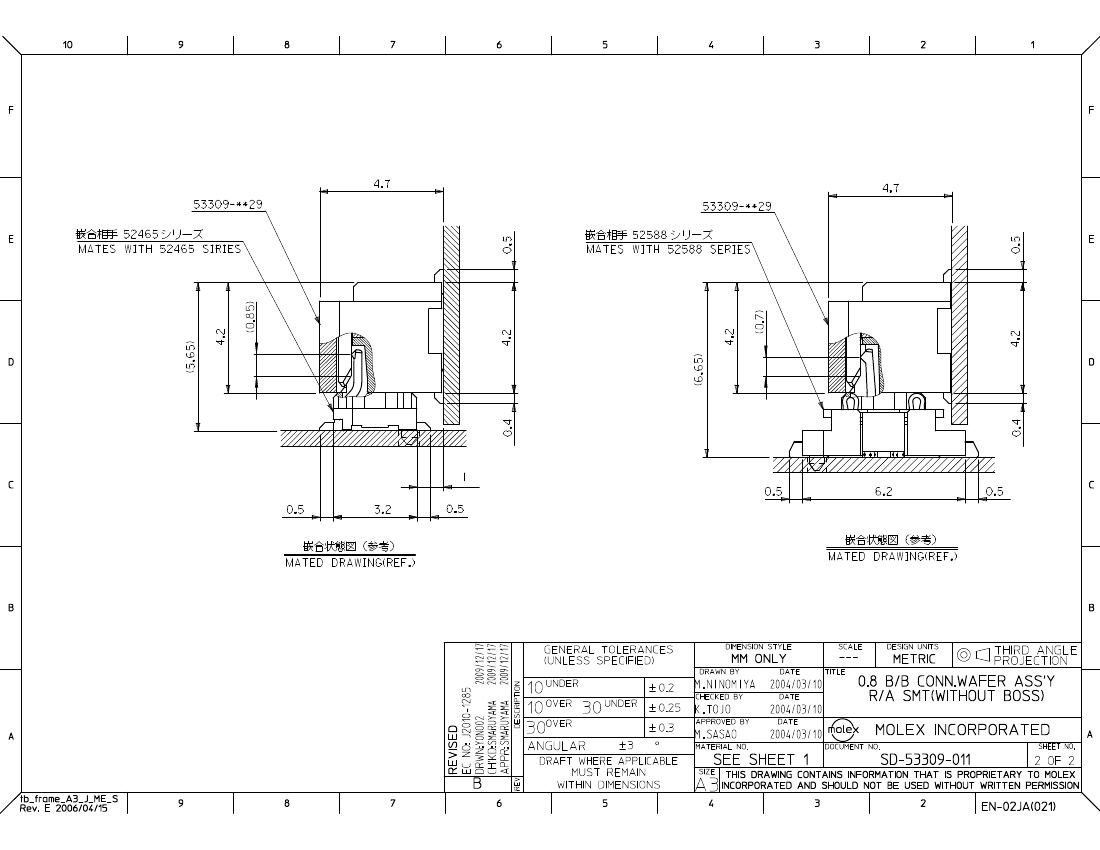

52465 Board-to-Board Receptacle
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V
