53426-0890

Description
8 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size299KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

53426-0890 Overview

8 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

53426-0890 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresSHROUDED
Board mount optionsPOLARIZATION POST
body width0.323 inch
subject depth0.386 inch
body length0.882 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force8.0064 N
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.098 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts8
UL Flammability Code94V-0
Evacuation force-minimum value1.2232 N

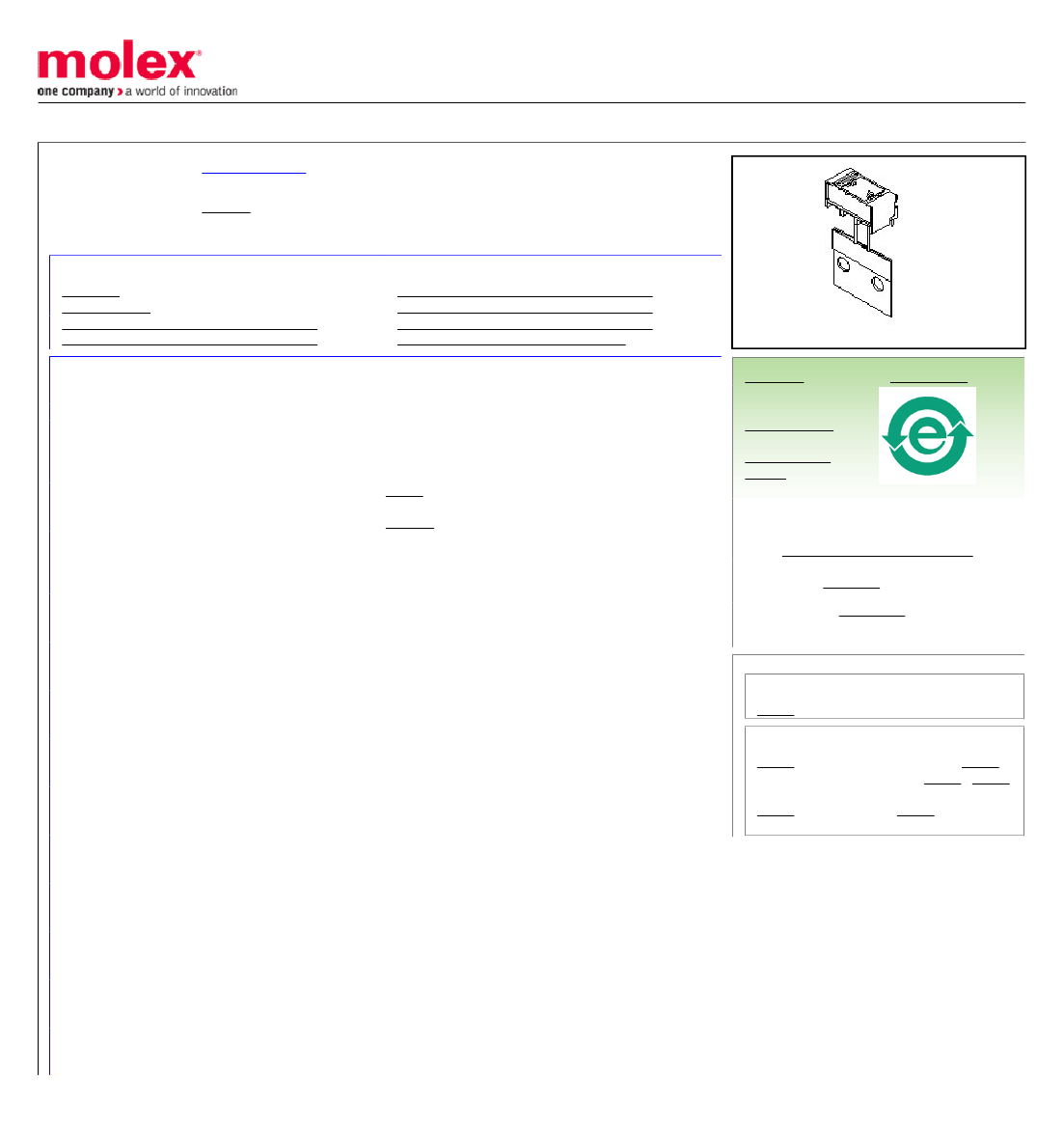

This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0534260890
Active
minilock
2.50mm (.098") Pitch Mini-Lock™ Wire-to-Board Header, Right Angle, Friction and
Positive Lock, Radial Tape Packaging, 8 Circuits, Lead-free
Documents:
3D Model

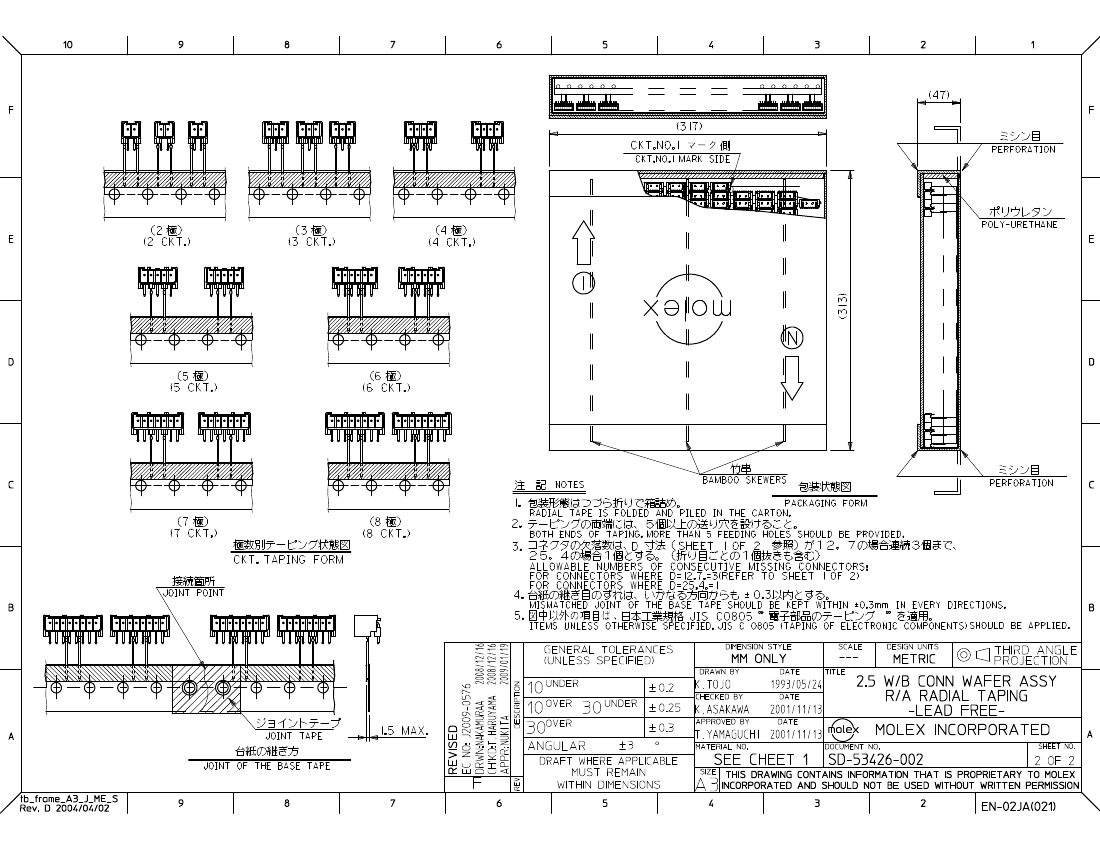

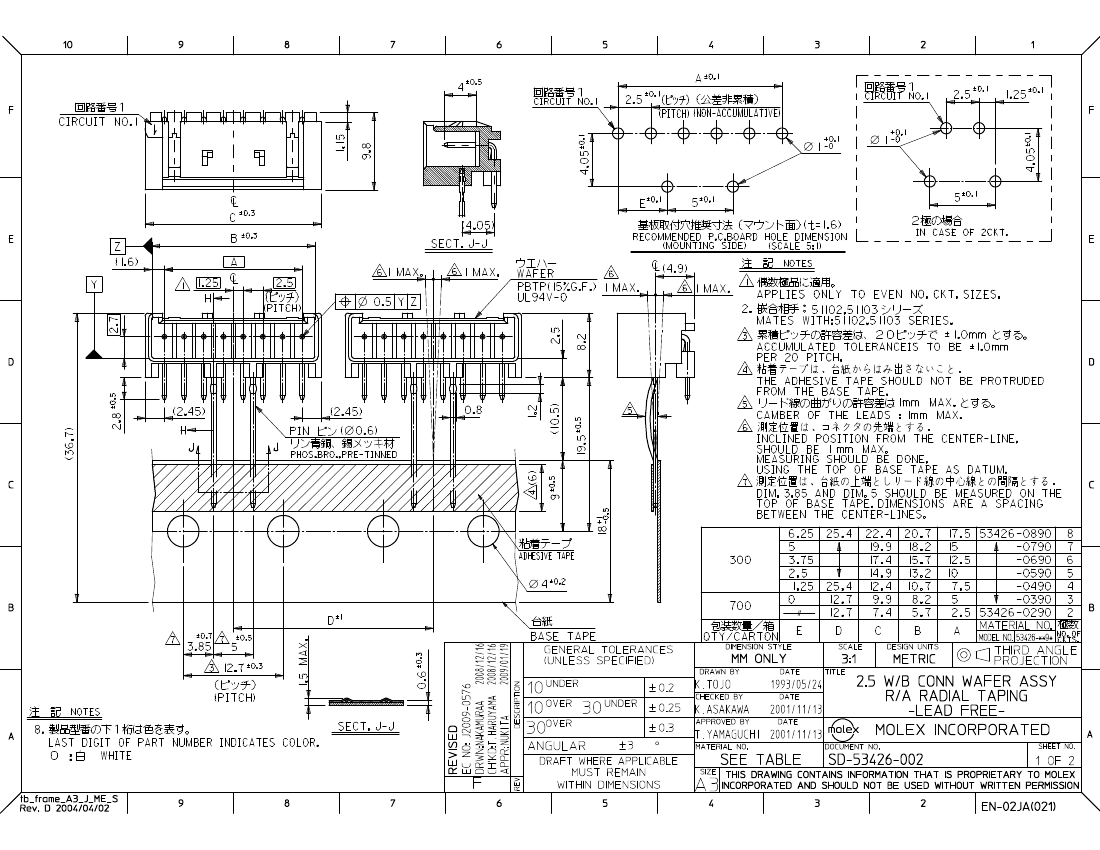

Drawing (PDF)
Product Specification PS-51102-002 (PDF)
Product Specification PS-51103-005 (PDF)
Product Specification PS-51103-007 (PDF)
Product Specification PS-51163-001 (PDF)
Product Specification PS-51163-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
53426
Wire-to-Board
minilock
Mini-Lock™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
8
8
White
30
94V-0
No
Yes
Yes
Phosphor Bronze
Tin
Tin
1
Right Angle
0.110 In
2.80 mm
Yes
Yes
0.062 In
1.60 mm
Radial Tape
0.098 In
2.50 mm
No
Fully
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
53426Series
Mates With
51102 Housing with Friction Lock. 51103
Housing with Positive Lock. 51163 , 51164
Housing with Positive Lock and Retainer.
50351 Crimp Terminal. 50752 Crimp
Terminal
Electrical
