85855-122 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85855-122

85855-122: DescriptionBoard Connector, 240 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug; CategoryThe connector The connector; File Size3MB，24 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

85855-122 Overview

Board Connector, 240 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug

85855-122 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.701 inch
subject depth	0.669 inch
body length	3.777 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85855
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	240
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

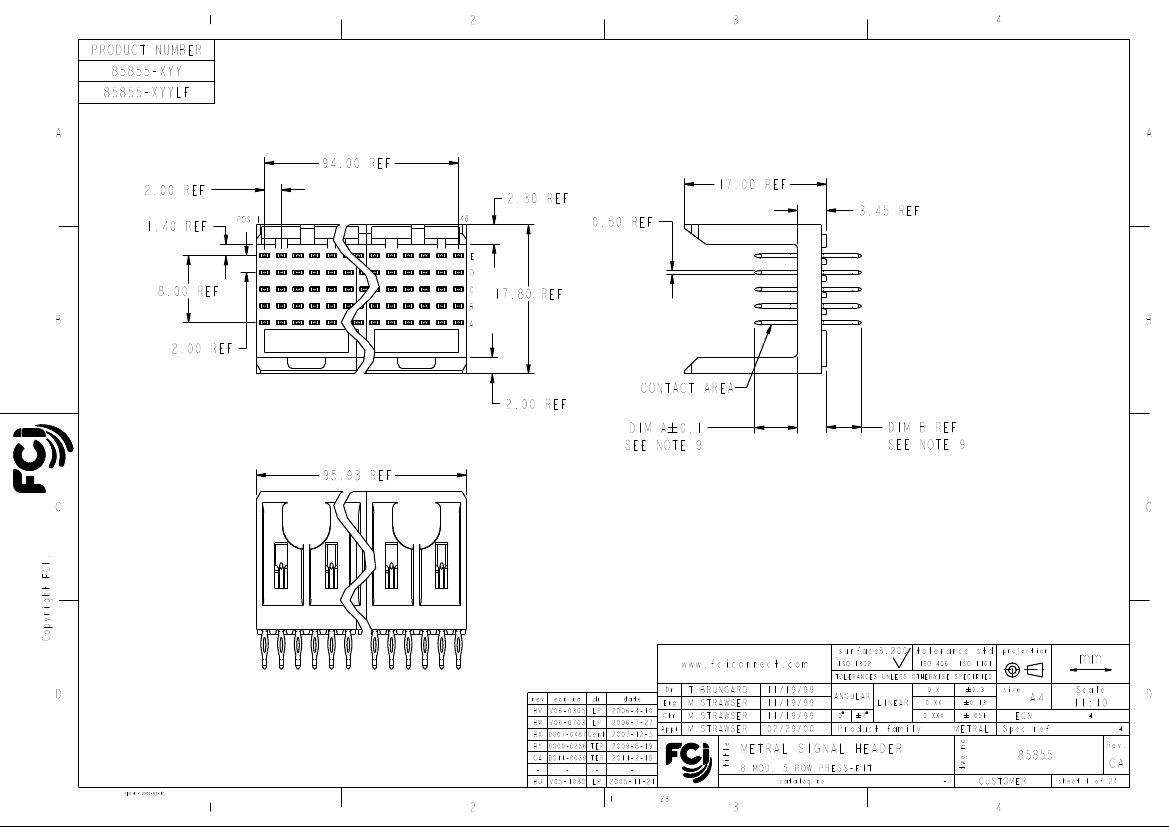

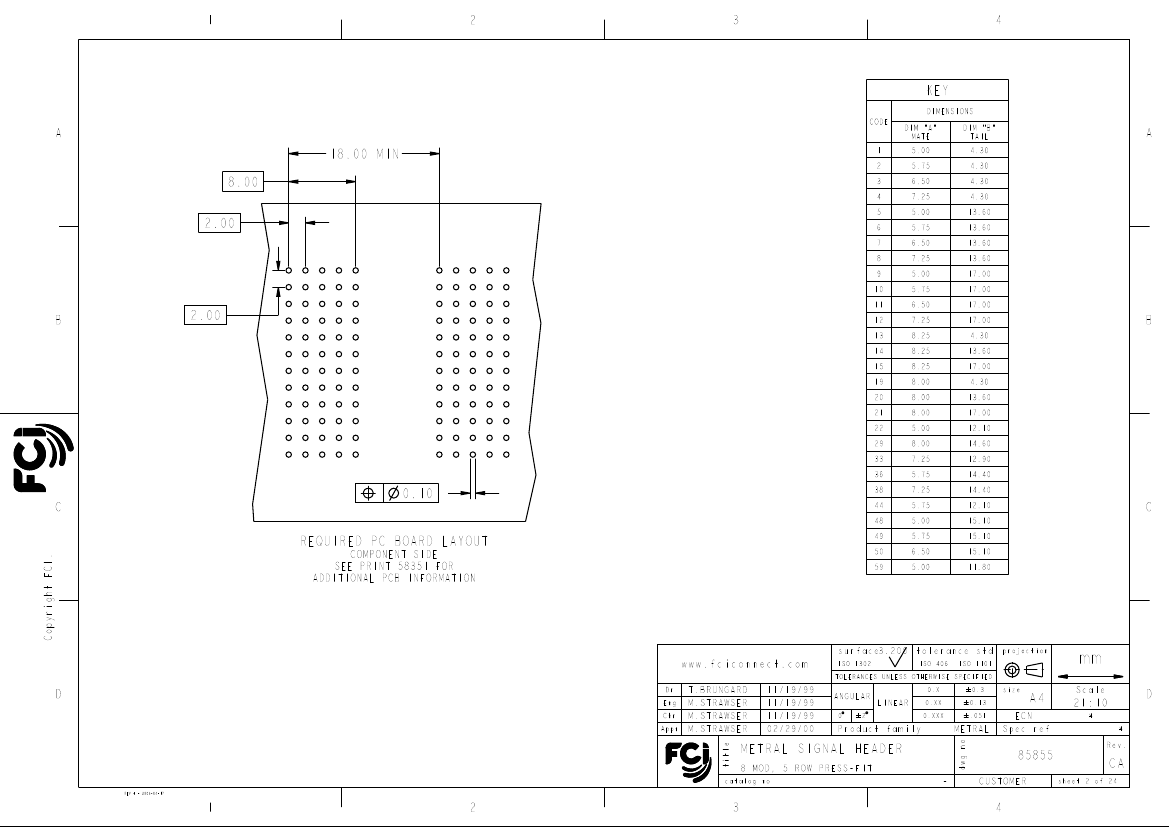

PRODUCT NUMBER

85855-XYY

85855-XYYLF

94.00 REF

2.00 REF

1.40 REF

POS.1

2.30 REF

0.50 REF

17.00 REF

3.45 REF

8.00 REF

17.80 REF

2.00 REF

CONTACT AREA

2.00 REF

DIM A 0.1

SEE NOTE 9

95.93 REF

DIM B REF

SEE NOTE 9

surface 3.200

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

ISO 1302

Scale

TOLERANCES UNLESS OTHERWISE SPECIFIED

rev

REV F - 2006-04-17

ecn no

V06-0305

V06-0703

DG07-0487

DG09-0256

DG11-0039

Cenh

TER

date

2006-4-10

2006-7-27

2007-12-5

2009-8-19

2011-2-16

2005-11-21

Eng

Chr

Appr

T.BRUNGARD

M.STRAWSER

title

11/19/99

02/29/00

ANGULAR

0.X

0.3

0.13

.051

size

LINEAR

0.XX

0.XXX

11:10

Rev.

Product family

METRAL

dwg no

ECN

Spec ref

METRAL SIGNAL HEADER

8 MOD, 5 ROW PRESS-FIT

catalog no

85855

CUSTOMER

sheet

V05-1030

1 of 24

PDM: Rev:CA

STATUS:

Released

Printed: Feb 18, 2011
