91-5565080LG

Description
MIL Series Connector
CategoryThe connector    The connector
File Size117KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

91-5565080LG Overview

MIL Series Connector

91-5565080LG Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Connector typeMIL SERIES CONNECTOR
Manufacturer's serial number91
Amphenol
Aerospace
38999
III
HD
Dualok
II
I
SJT

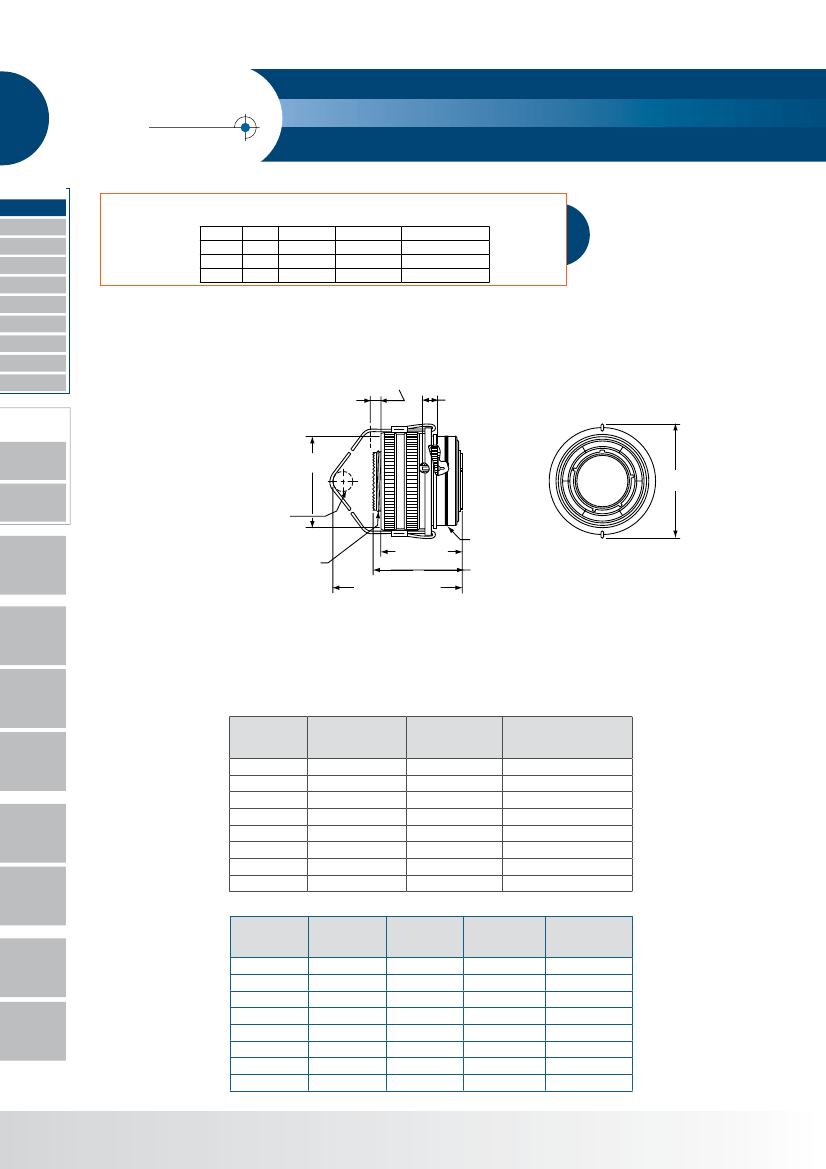

D38999/29 & D38999/30 – Series III
TV Breakaway Fail Safe-Crimp, Metal
Lanyard Release Plug
Shell
Style
Shell Size
& Insert Arrg
Lanyard
Length Code
Contact Type/
Alternate Insert
Rotation
PART #
Connector
Type
To complete,
D38999 29
see how to order
D38999 30
pages 41-42.
88
5565
91
5565
29
X-X
X-X
X-X
E
X
X
X
P
X
X
X
(Pins Only)
(Sockets Only)
A
ccessories
A
quacon
H
erm/Seal
PCB
METAL
.374 MAX
9.50 MAX
OUTER SLEEVE MOVEMENT
DURING UNMATING THREAD RELEASE
.359 MAX
9.12 MAX
HIgH
SPEED
Fiber
Optics
Connectors
D
LANYARD
PULLED TAUT
AGAINST A
.500 ±.031
12.70 ±.79
DIA MANDREL
V THREAD
METRIC
1.781 MAX
45.24 MAX
Contacts
Cables
B
EMI Filter
Transient
BLUE BAND
2.375 MAX
60.33 MAX
LANYARD LENGTH
(See Lanyard Length Table)
83723 III
Matrix|Pyle
Matrix 2
26482
† Blue band indicates rear release contact retention system
Inches
26500
Pyle
Shell Size
11
13
15
MS Shell Size
Code
B
C
D
E
F
G
H
J
B Max
1.846
1.972
2.079
2.205
2.301
2.472
2.594
2.705
D Max
Accessory Dia.
1.109
1.250
1.375
1.500
1.625
1.750
1.875
2.000
Millimeters
Crimp Rear
Release
Matrix
5015
17
19
21
23
25
22992
Class L
Back-
Shells
Shell Size
11
13
15
17
19
21
23
25
MS Shell Size
Code
B
C
D
E
F
G
H
J
B Max
46.89
50.09
52.81
56.01
58.45
62.79
65.89
68.71
D Max
Accessory Dia. V Thread Metric
28.17
31.75
34.93
38.10
41.28
44.45
47.63
50.08
M15X1.0-6g
M18X1.0-6g
M22X1.0-6g
M25X1.0-6g
M28X1.0-6g
M31X1.0-6g
M34X1.0-6g
M37X1.0-6g
Options
Others
All dimensions for reference only
40
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
