87759-4276: Description2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 42 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap; CategoryThe connector The connector; File Size359KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87759-4276 Overview

2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 42 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap

87759-4276 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
body width	0.157 inch
body length	1.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	87759
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	42

Preview

Download Datasheet

View All

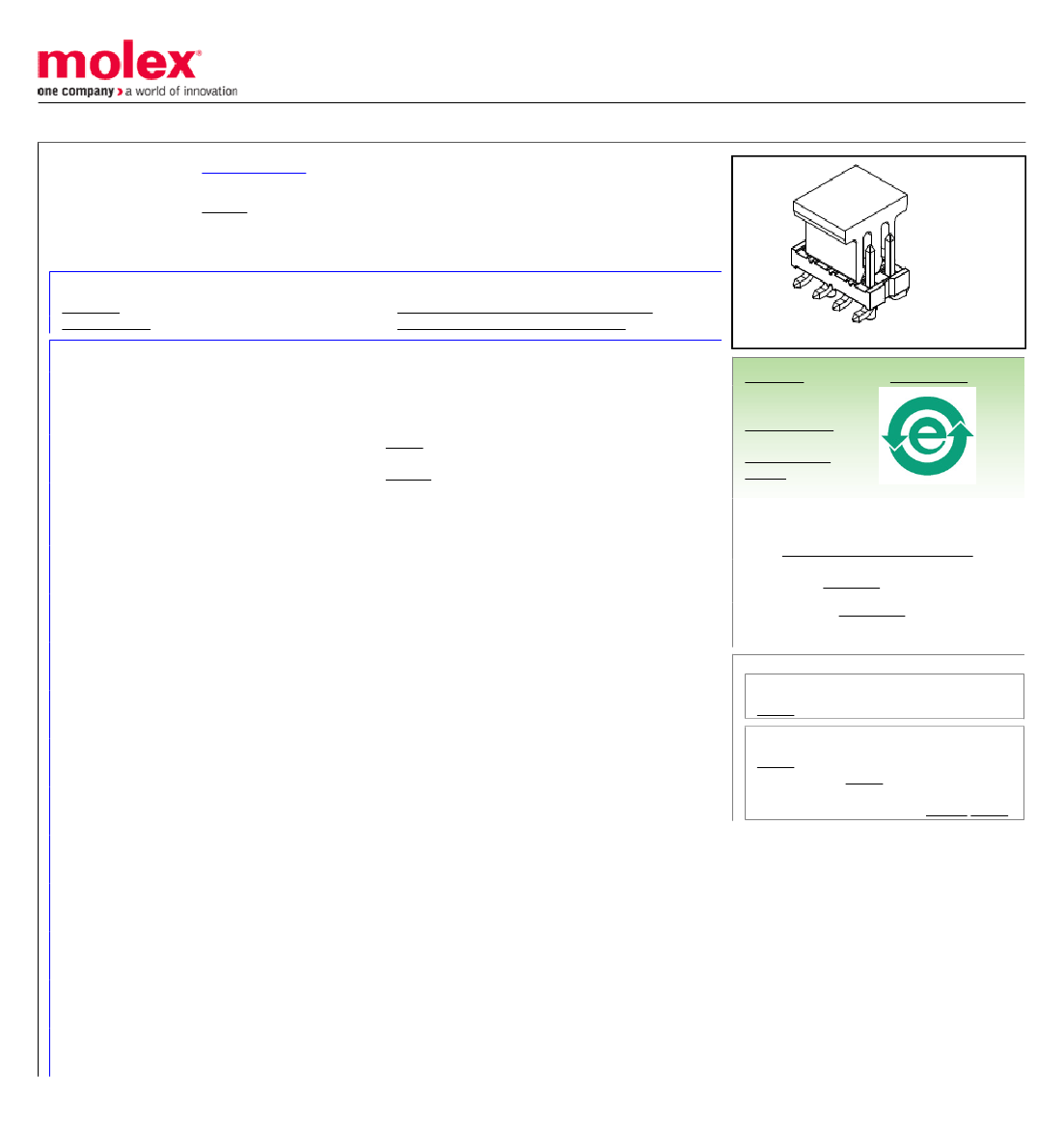

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877594276

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, 42 Circuits, 0.38µm

(15µ") Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap,

Tube Packaging, Lead-free

Documents:

3D Model

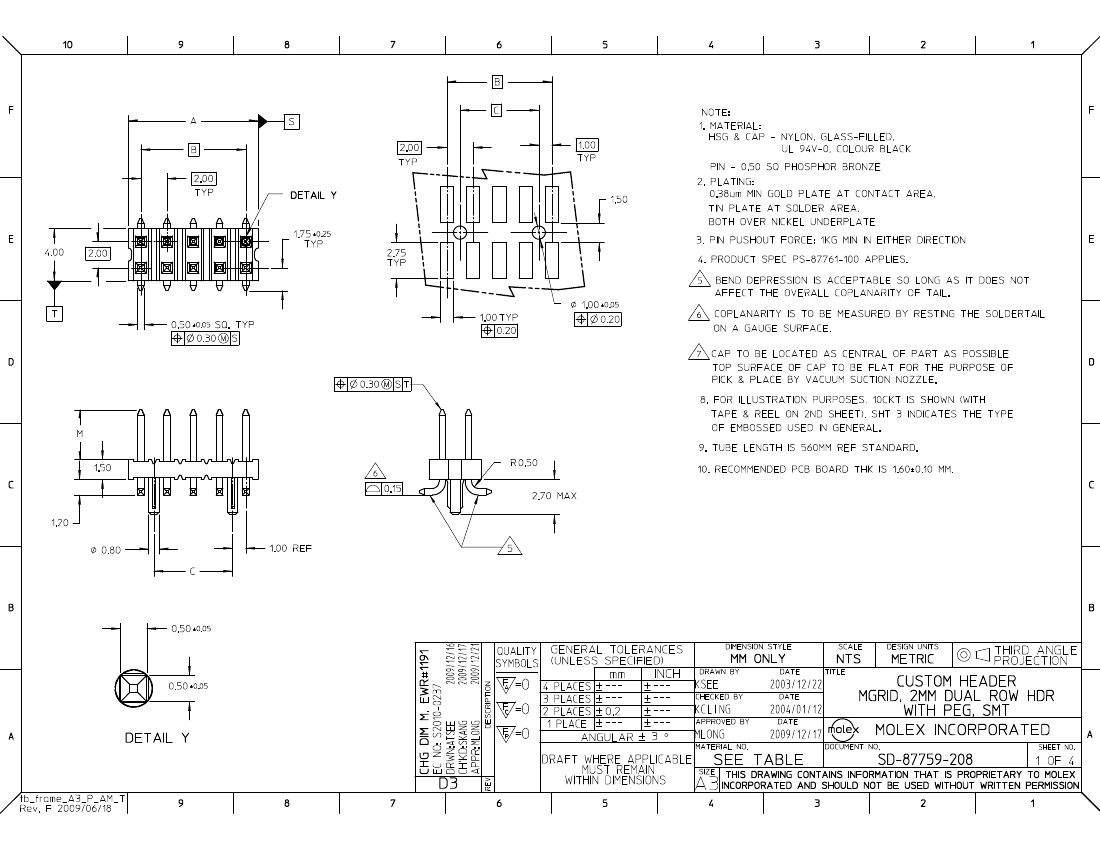

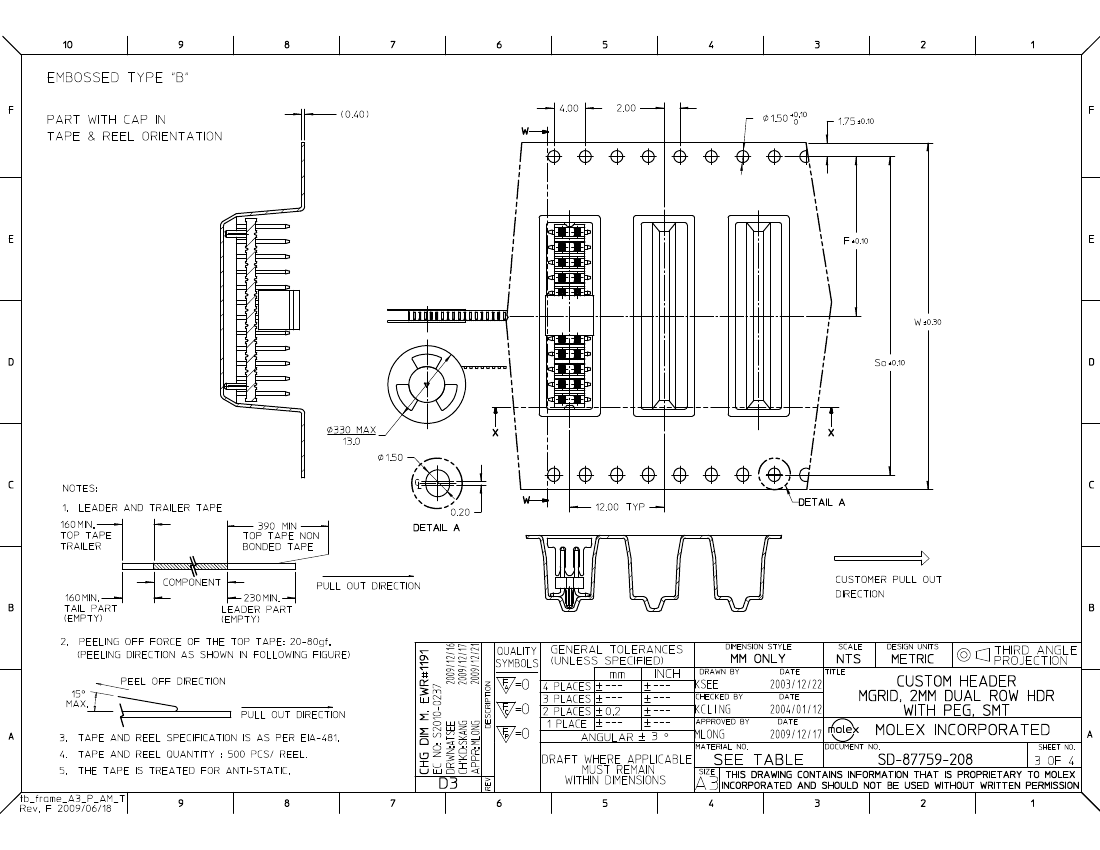

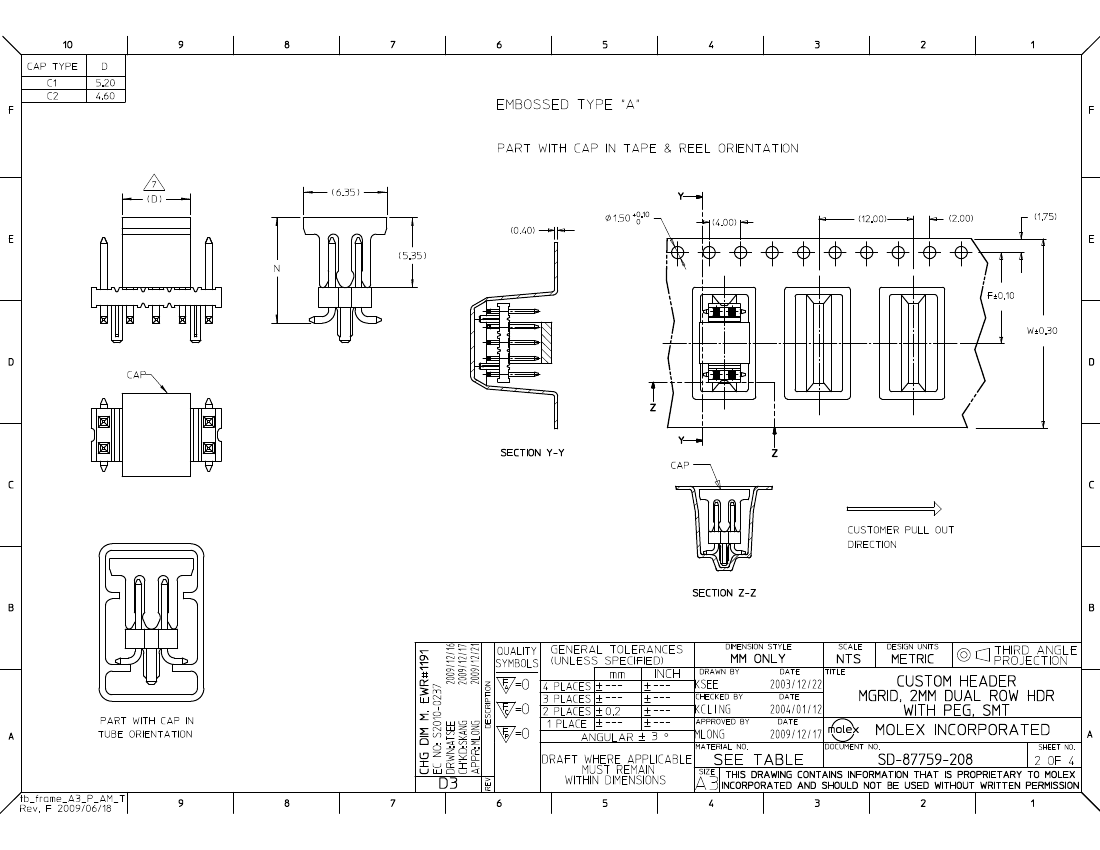

Drawing (PDF)

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87759

Board-to-Board

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Temperature Range - Operating

Yes

Black

100

94V-0

None

0.150 In

3.80 mm

Phosphor Bronze

Gold

Tin

Nylon

Vertical

Yes

None

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.38

Pick and Place Cap

Yes

-55°C to +105°C

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87759Series

Mates With

79107 Milli-Grid™ Receptacle, Vertical,

Through Hole. 79108 Milli-Grid™ Flex-to-

Board, Vertical Receptacle. Milli-Grid™

Receptacle, Surface Mount. 79109. 87381

87759-4276 Related Products

	87759-4276	0877594276
Description	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 42 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 42 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap
