87760-3417 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87760-3417

87760-3417: Description34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size163KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87760-3417 Overview

34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

87760-3417 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TRAY PACKAGE
body width	0.169 inch
subject depth	0.157 inch
body length	1.339 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87760
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

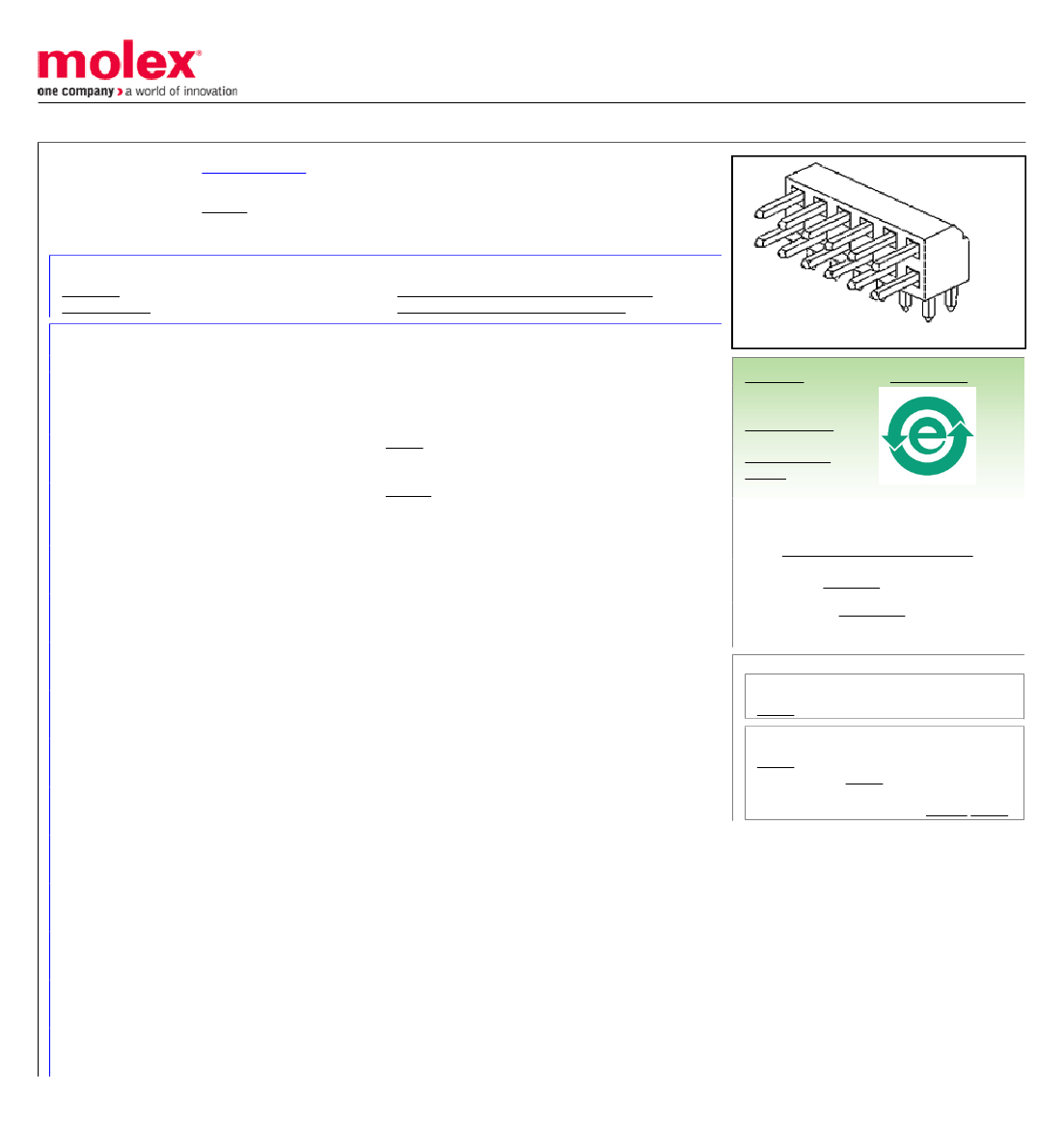

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877603417

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Right Angle, Through Hole, 34 Circuits,

0.76µm (30µ") Gold (Au) Selective Plating, Tray, Lead-free

Documents:

3D Model

Drawing (PDF)

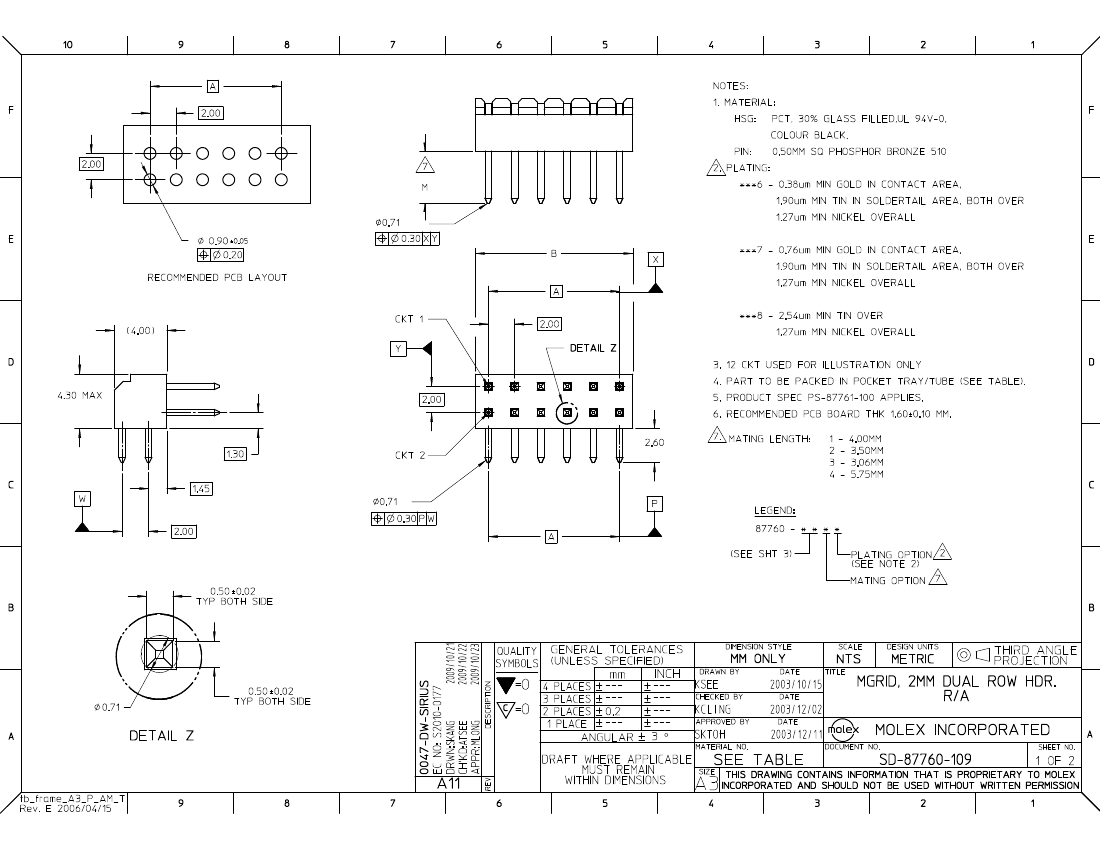

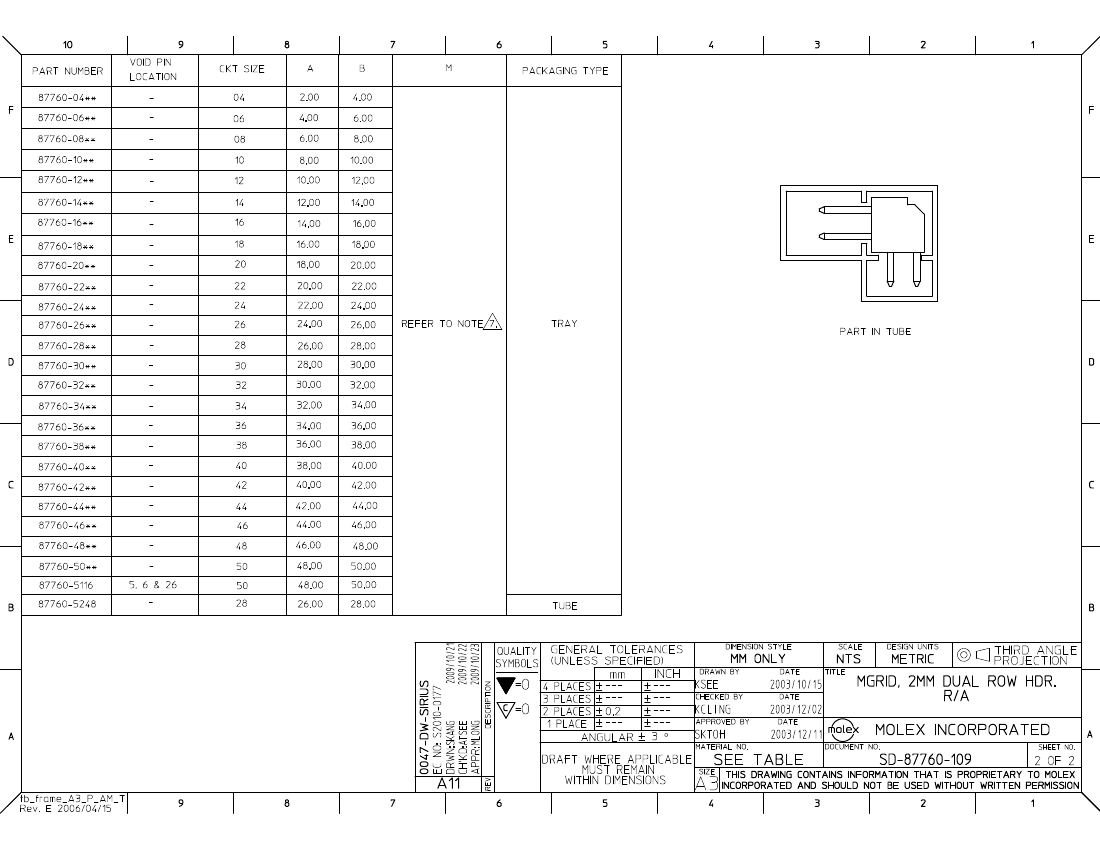

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87760

Board-to-Board, Wire-to-Board

Lead-free version of 87049 series

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Black

94V-0

None

0.157 In

4.00 mm

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.102 In

2.60 mm

None

0.062 In

1.60 mm

Tray

0.079 In

2.00 mm

0.079 In

2.00 mm

Yes

Search Parts in this Series

87760Series

Mates With

79107 Milli-Grid™ Receptacle, Vertical,

Through Hole. 79108 Milli-Grid™ Flex-to-

Board, Vertical Receptacle. Milli-Grid™

Receptacle, Surface Mount. 79109. 87381

87760-3417 Related Products

	87760-3417	0877603417
Description	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
