This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0877861011
Active

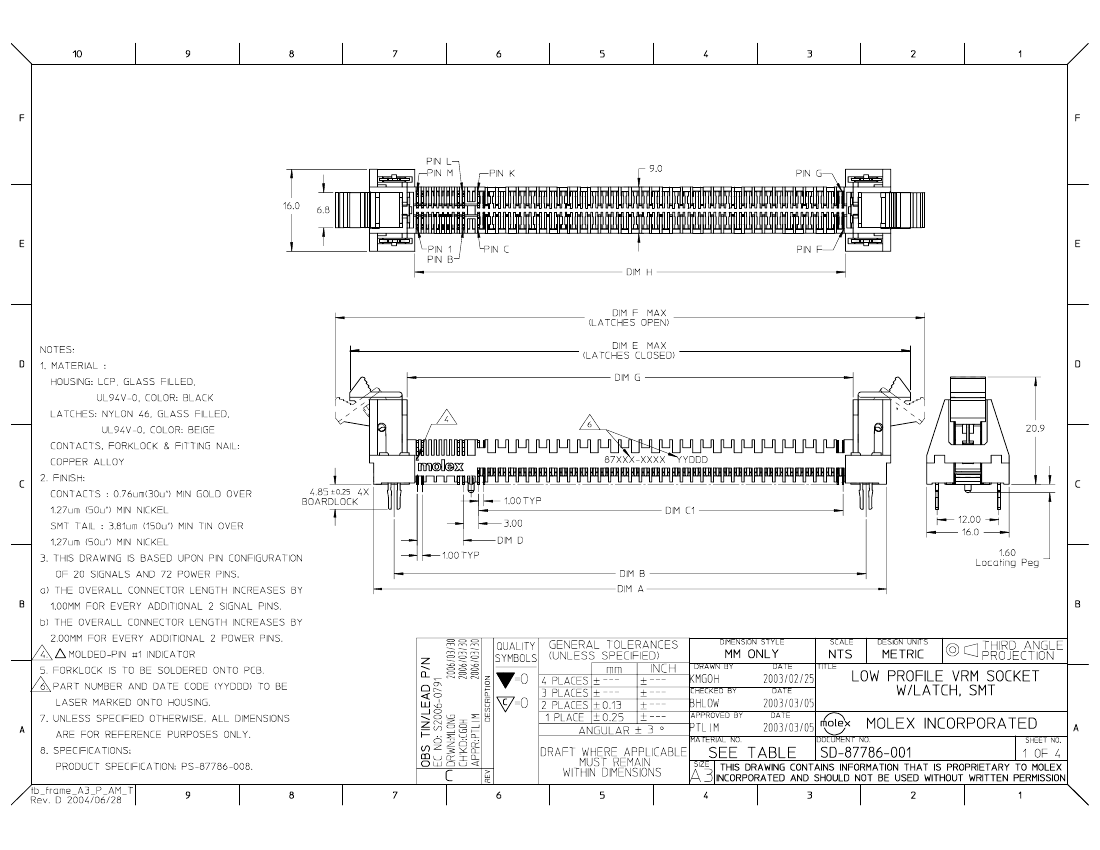

1.00mm (.039") Pitch iCool™ Low Profile VRM, Vertical, Surface Mount, with Latches,
with Beveled Metal Pins, Signal 24, Power 70, 0.76µm(30µ")Gold (Au) Plating,
Leadfree
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Component Type
Overview
Product Name
Edge Card Connectors
87786
Latches in Natural Color
Edgecard to PCB
icool
iCool™, VRM
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
94
94
24 Signal, 70 Power
Black, Natural
25
Vertical (Top Entry)
94V-0
Yes
High Performance Alloy (HPA), Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Yes
Yes
Tray
0.039 In
1.00 mm
30.4
0.76
152.4
3.81
Yes
-10°C to +105°C
Surface Mount
Search Parts in this Series
87786Series
Mates With
Voltage Regulator Module
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A, 4A
48V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Reflow Capable (SMT only)
1
245
Material Info
