Part Number:
Status:
Overview:
Description:
0879111209
Active
cgrid__sl_products
2.54mm (.100") Pitch C-Grid® Header, Right Angle, Through Hole, 12 Circuits, 2.50µm
(98µ") Tin (Sn) Overall Plating, Tube Packaging, Lead- free
Documents:
Drawing (PDF)
Product Specification PS-87920-019 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
UL
E29179

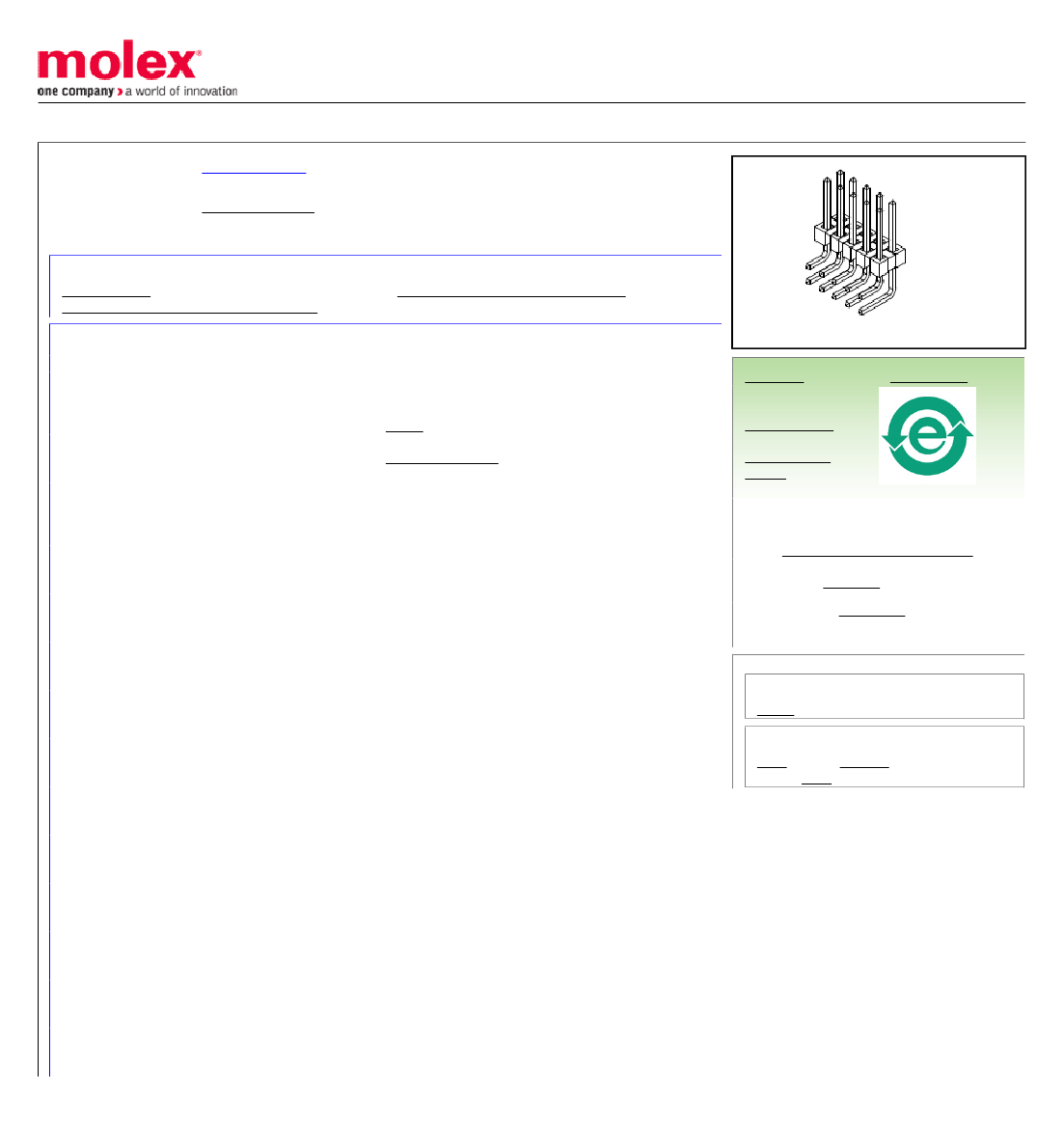

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
87911
Board-to-Board, Wire-to-Board
cgrid__sl_products
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Yes
12
12
Black
No
94V-0
No
No
None
None
Copper Alloy
Tin
Nickel
High Temperature Thermoplastic
2
Right Angle
0.110 In
2.79 mm
No
None
0.062 In
1.60 mm
Tube
0.100 In
2.54 mm
0.100 In
2.54 mm
98
2.50
No
No
No
No
Yes
-55°C to +105°C
Search Parts in this Series
87911Series
Mates With
7859 Shunts, C-Grid® PCB Receptacles like
71850, SL™ IDT Housing like 70450
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info

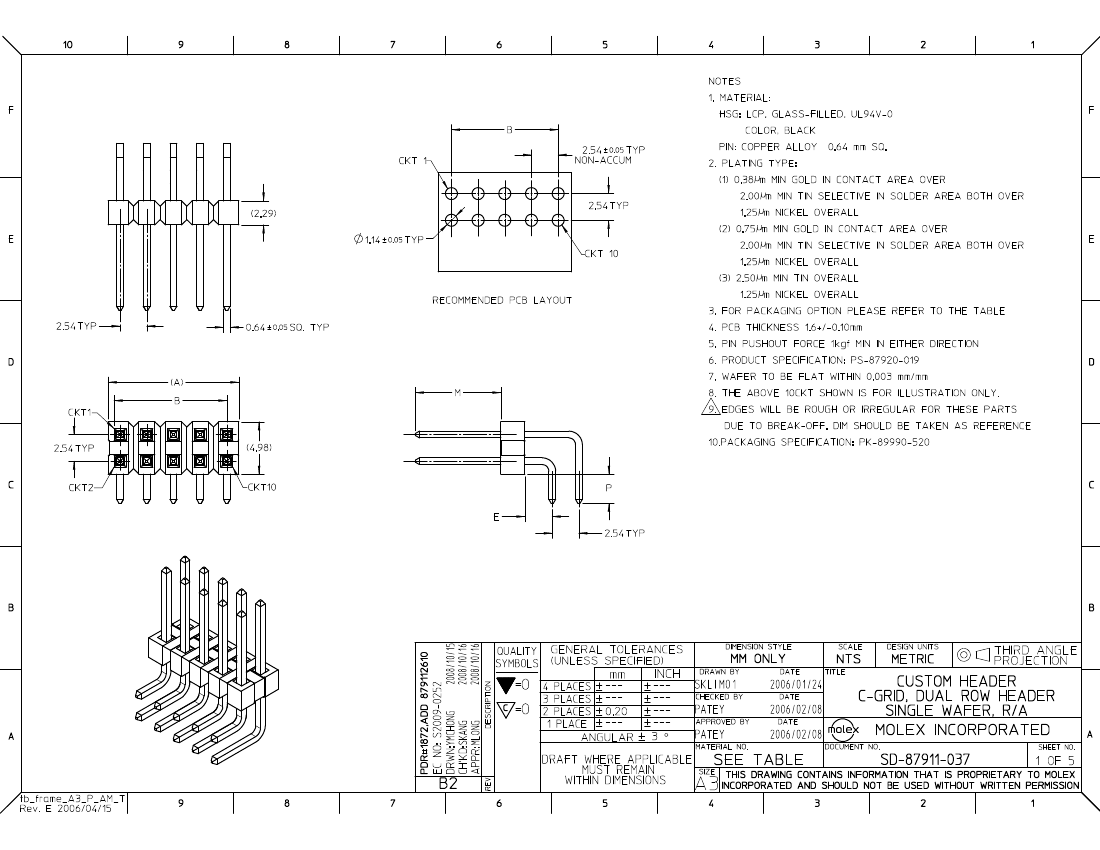

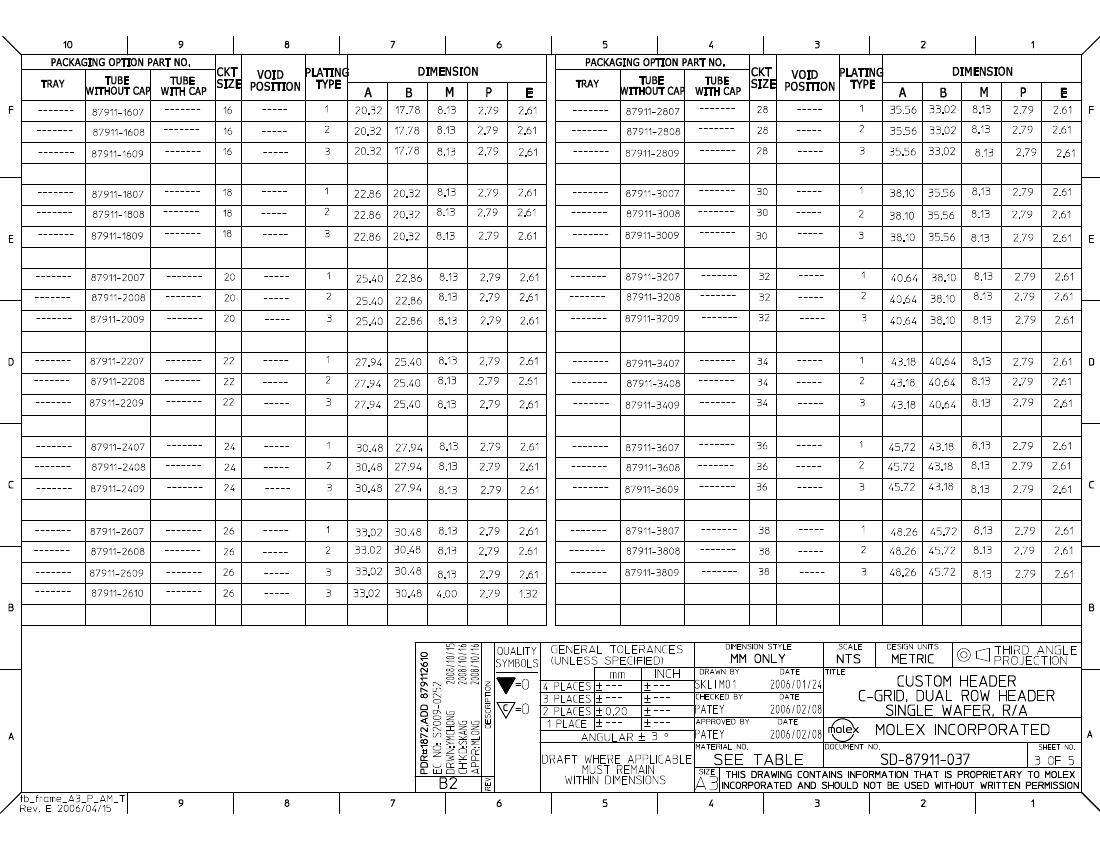

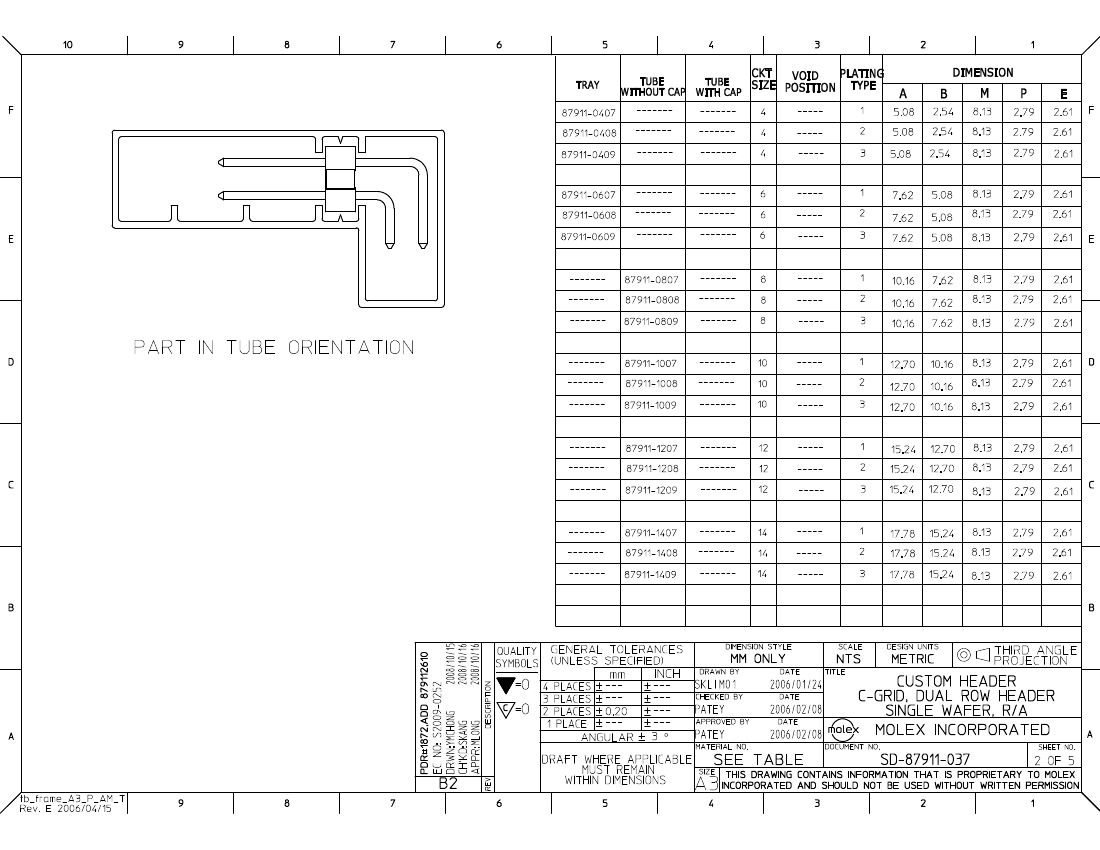

Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-89990-520
PS-87920-019
SD-87911-037
