Part Number:
Status:
Description:
0877156018
Planned for Obsolescence
1.00mm (.039") Pitch, PCI Express* Connector, 36 Circuits, Nylon 6/6 Glass-filled,
White Housing, Phosphor Bronze, 0.38µm (15µ") Gold (Au) Plating, with Plastic Pegs,
2.30mm (.091") Soldertail, Lead Free
Documents:
3D Model

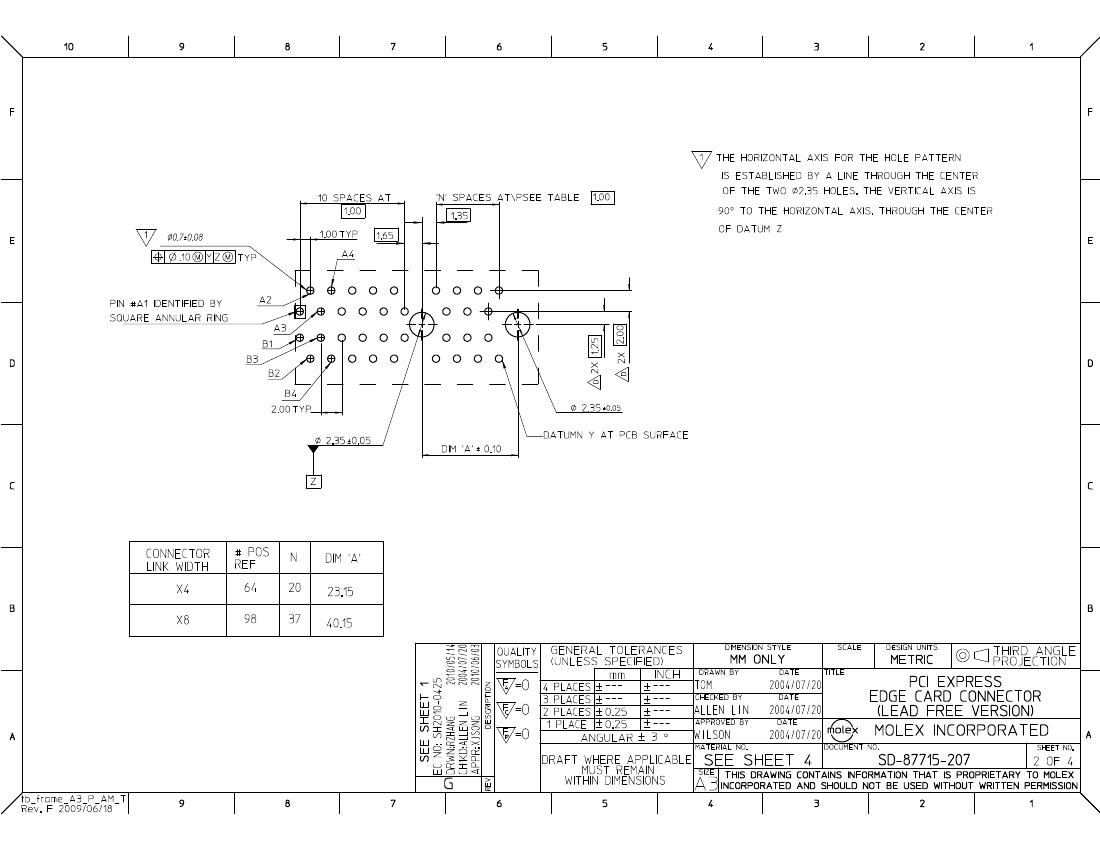

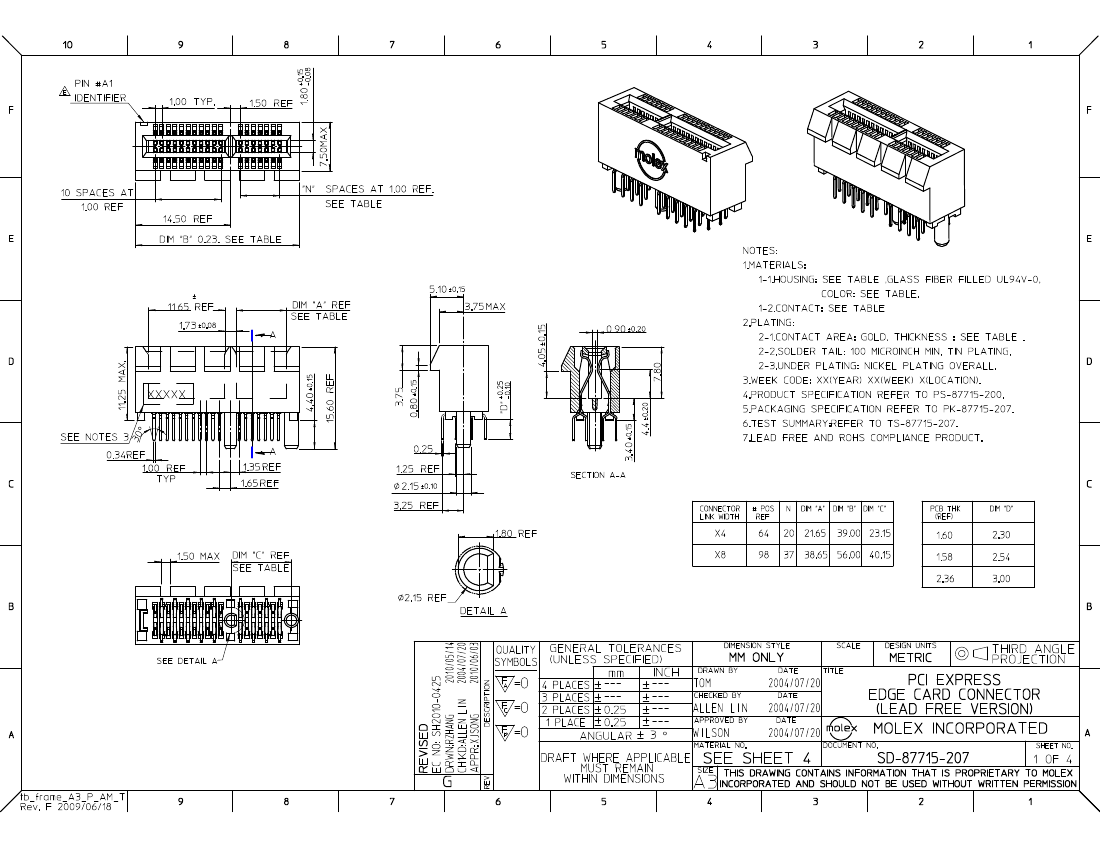

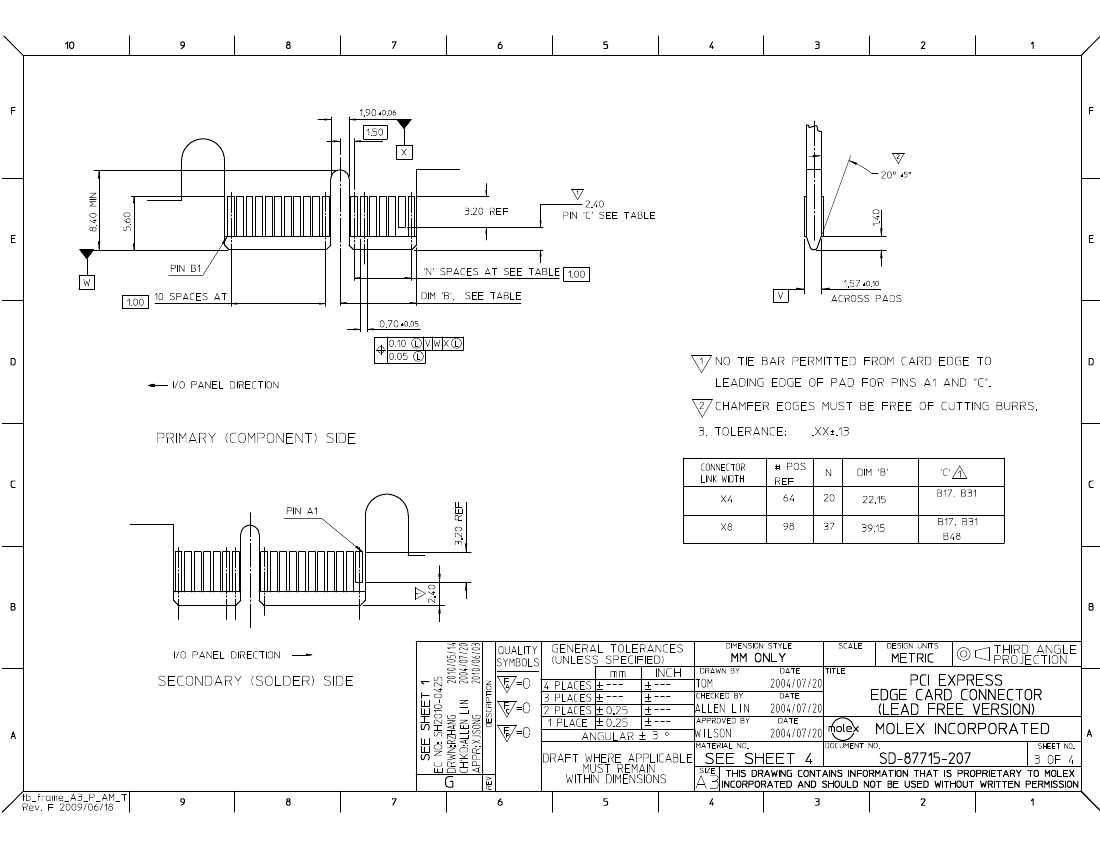

Drawing (PDF)
Product Specification PS-87715-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Product Name
Edge Card Connectors
87715
PCI 1 lane
Edgecard to PCB
PCI Express*
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
36
36
All Signal
50
Vertical (Top Entry)
94V-0
Yes
Gold
Tin
0.091 In
2.30 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.039 In
1.00 mm
0.039 In
1.00 mm
Yes
-55°C to +85°C
Through Hole
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-87715-207
PS-87715-200
SD-87715-207
TS-87715-207
