14-45-0621: Description21 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size147KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

14-45-0621 Overview

21 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC

14-45-0621 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STACKABLE
body width	0.139 inch
subject depth	0.6 inch
body length	2.099 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STAMPED, PREASSEM
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Minimum insulation diameter	0.051 inch
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70475
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	150u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	1.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	21
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014450621

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Male, Single

Row, Version D, Back Ribs, for Wire Size 26, 3.81µm (150µ") Tin (Sn), 21 Circuits

Documents:

3D Model

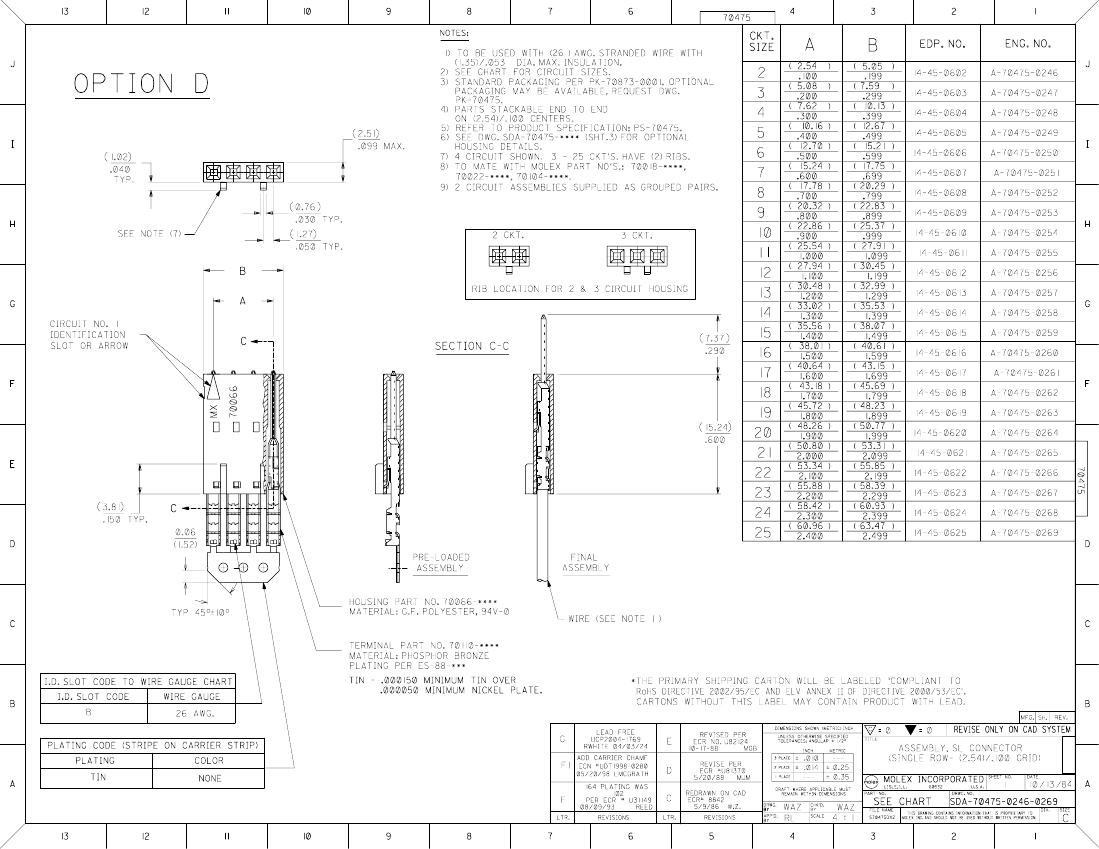

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70475

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Vertical

94V-0

None

Tube

0.100 In

2.54 mm

Yes

N/A

-40°C to +105°C

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

70475Series

Mates With

70004 Interim Clip (Single Row), 70013

Interim Clip (Dual Row)

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.8A

250V

Material Info

Reference - Drawing Numbers

Product Specification

PS-70400

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
