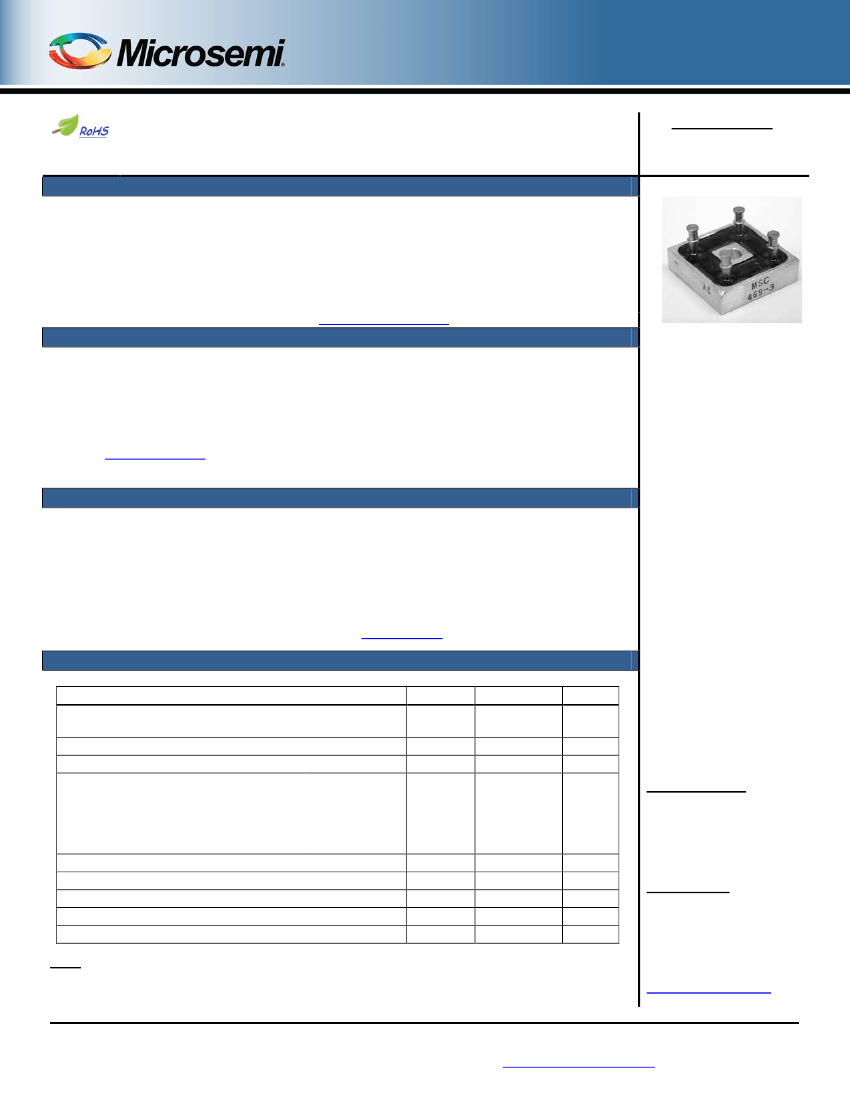

469-01 – 469-05
Qualified Level:
JANTX and JANTXV
Available
Single Phase 10 Amp Rectifier Bridge
Qualified per MIL-PRF-19500/469
DESCRIPTION
This series of high-current single-phase bridge rectifiers are constructed with hermetically sealed
rectifiers built with the same design and construction techniques used in military applications for the
upmost in reliability. These include voidless glass encapsulation and internal "Category 1"
metallurgical bonds. They can be purchased screened and mil-qualified to MIL-PRF-19500/469,
making them ideal for applications where failure cannot be tolerated. These 10A rectifier bridges
are available in multiple working peak reverse voltage ratings per leg.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
•
Voidless hermetically sealed glass packages used internally for each leg
Electrically isolated aluminum case
Triple-layer passivation
Internal “Category
1”
metallurgical bonds
JANTX and JANTXV qualifications available per MIL-PRF-19500/469
(See
part nomenclature
for all available options)
RoHS compliant versions available without Sn/Pb solder dip
MD Package
APPLICATIONS / BENEFITS
•
•
•
•
•
•
•
Controlled avalanche characteristics
Working peak reverse voltages 200 to 1,000 volts
Military and other high-reliability applications
High forward surge current capability
Low thermal resistance
Extremely robust construction
Inherently radiation hard as described in Microsemi
MicroNote 050
MAXIMUM RATINGS
@ T
A
= 25 ºC unless otherwise noted
Parameters/Test Conditions
Junction and Storage Temperature
Thermal Resistance Junction-to-Case
Thermal Resistance Junction-to-Ambient
Working Peak Reverse Voltage (per leg)
Symbol
T
J
&
T
STG
R
ӨJC
R
ӨJA
V
RWM
Value
-65 to +150
5
25
200
400
600
800
1,000
10
6
100
2800
260
Unit
ºC
ºC/W
ºC/W
V (pk)
483-01
483-02
483-03
483-04
483-05
Maximum Average DC Output Current @ T
C
= +55 ºC
Maximum Average DC Output Current @ T
C
= +100 ºC
Forward Surge Current @ I
O
= I
O1
, T
C
= +55 ºC, tp = 8.3 ms
Isolation Voltage @ 10 µA DC Max for 10 secs @ 25°C
Solder Temperature @ 10 s
I
O1
(2)
I
O2
I
F(surge)
V
ISO
(1)
A
A
A (pk)
V
o
C
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Notes:
1. Derate from 10 A at T
C
= +55 ºC to 6 A at T
C
= +100 ºC (88 mA dc/ ºC).
2. Derate from 6 A at T
C
= +100 ºC to 0 A at T
C
= +150 ºC (120 mA dc/ ºC). t
rr
= 2.5 μs at I
F
= 0.5 A, I
R
=
1.0 A, I
rec
= 0.25 A.
RF01149, Rev. A (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 1 of 6
One Enterprise, Aliso Viejo, CA 92656
469-01 – 469-05
MECHANICAL and PACKAGING
•
•
•
CASE: Aluminum
TERMINALS: Tin/lead (Sn/Pb) or RoHS compliant matte tin
MARKING: Alternating current input: AC
Cathode positive output: +
Anode negative: -
Part number is printed on the body
WEIGHT: Approximately 10 grams
See
Package Dimensions
on last page.
•
•
PART NOMENCLATURE
JANTX
Reliability Level
JANTX = JANTX level
JANTXV = JANTXV level
Blank = Commercial
MIL-PRF-19500
(Only included in JANTX and
JANTXV part numbers)
M19500/ 469 -01 (e3)
RoHS Compliance
e3 = RoHS compliant
(commercial grade only)
Blank = non-RoHS compliant
V
RWM
Level
(See
Maximum Ratings
table)
MIL-PRF slash number
Symbol
V
(
BR)
V
RWM
I
O
V
F
I
R
t
rr
SYMBOLS & DEFINITIONS
Definition
Breakdown Voltage: A voltage in the breakdown region.
Working Peak Reverse Voltage: The peak voltage excluding all transient voltages (ref JESD282-B). Also sometimes
known historically as PIV.
Average Rectified Output Current: The Output Current averaged over a full cycle with a 50 Hz or 60 Hz sine-wave
input and a 180 degree conduction angle.
Forward Voltage: A positive dc anode-cathode voltage the device will exhibit at a specified forward current.
Reverse Current: The dc current flowing from the external circuit into the cathode terminal at the specified voltage V
R
.
Reverse Recovery Time: The time interval between the instant the current passes through zero when changing from
the forward direction to the reverse direction and a specified decay point after a peak reverse current occurs.
RF01149, Rev. A (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 2 of 6
One Enterprise, Aliso Viejo, CA 92656
469-01 – 469-05
ELECTRICAL CHARACTERISTICS
MINIMUM
BREAKDOWN
VOLTAGE
Per Leg
V
(BR)
@ I
R
= 50
µA
Volts
220
440
660
880
1,100
MAXIMUM REVERSE
CURRENT
I
R
@ V
RWM
(Note 1)
T
C
= +25
°C
µA
2.0
2.0
2.0
2.0
2.0
T
C
= +100
°C
µA
125
125
125
125
125
FORWARD
VOLTAGE
V
F
I
F
@ 15.7 A (pk)
@ 8.3 ms
Duty Cycle ≤ 2%
(Note 1)
Volts (pk)
1.35
1.35
1.35
1.35
1.35
REVERSE
RECOVERY
t
rr
(I
F
= 0.5 A,
I
RM
= 1.0 A,
I
R(REC)
= 0.250 A)
µs
2.5
2.5
2.5
2.5
2.5
PART
NUMBER
483-01
483-02
483-03
483-04
483-05
NOTE 1:
Applies to each discrete diode and each bridge leg.
RF01149, Rev. A (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 3 of 6
One Enterprise, Aliso Viejo, CA 92656
469-01 – 469-05
GRAPHS

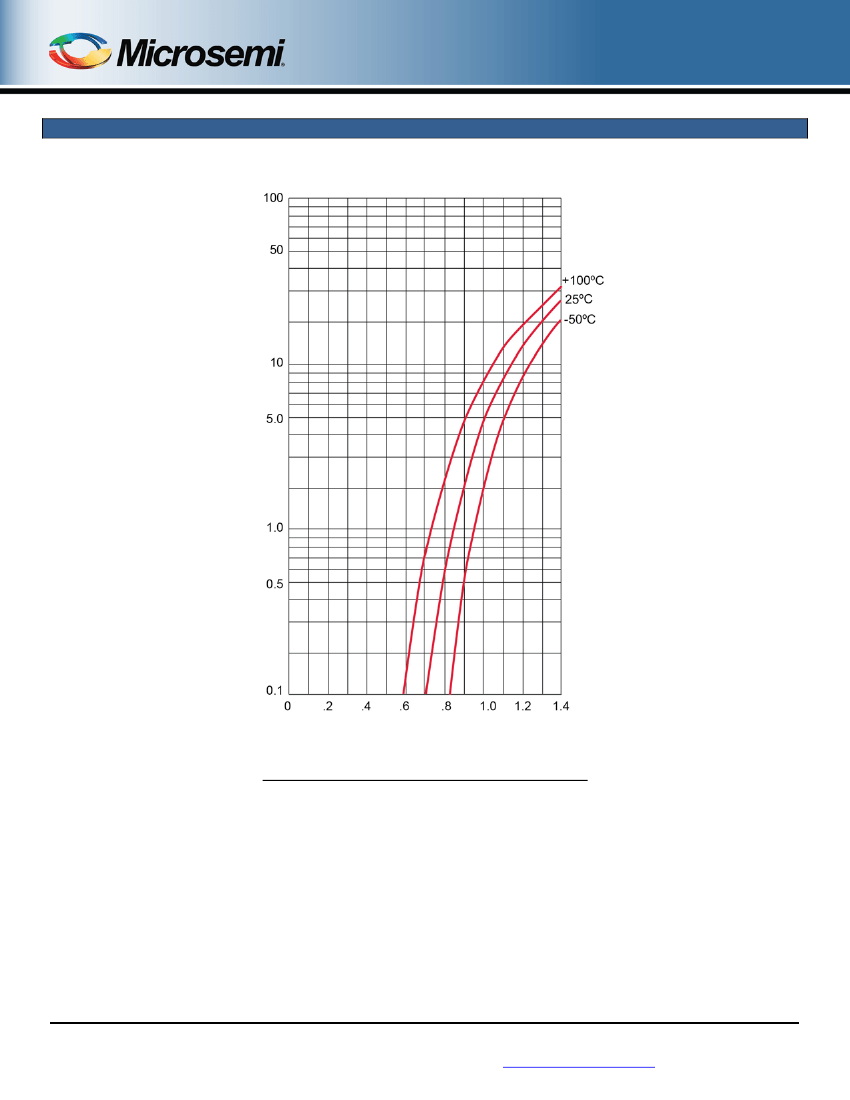

Forward Current (A)
Instantaneous Forward Voltage – Volts
FIGURE 1
Typical Forward Voltage Per Leg vs Forward Current
RF01149, Rev. A (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 4 of 6
One Enterprise, Aliso Viejo, CA 92656
469-01 – 469-05
GRAPHS

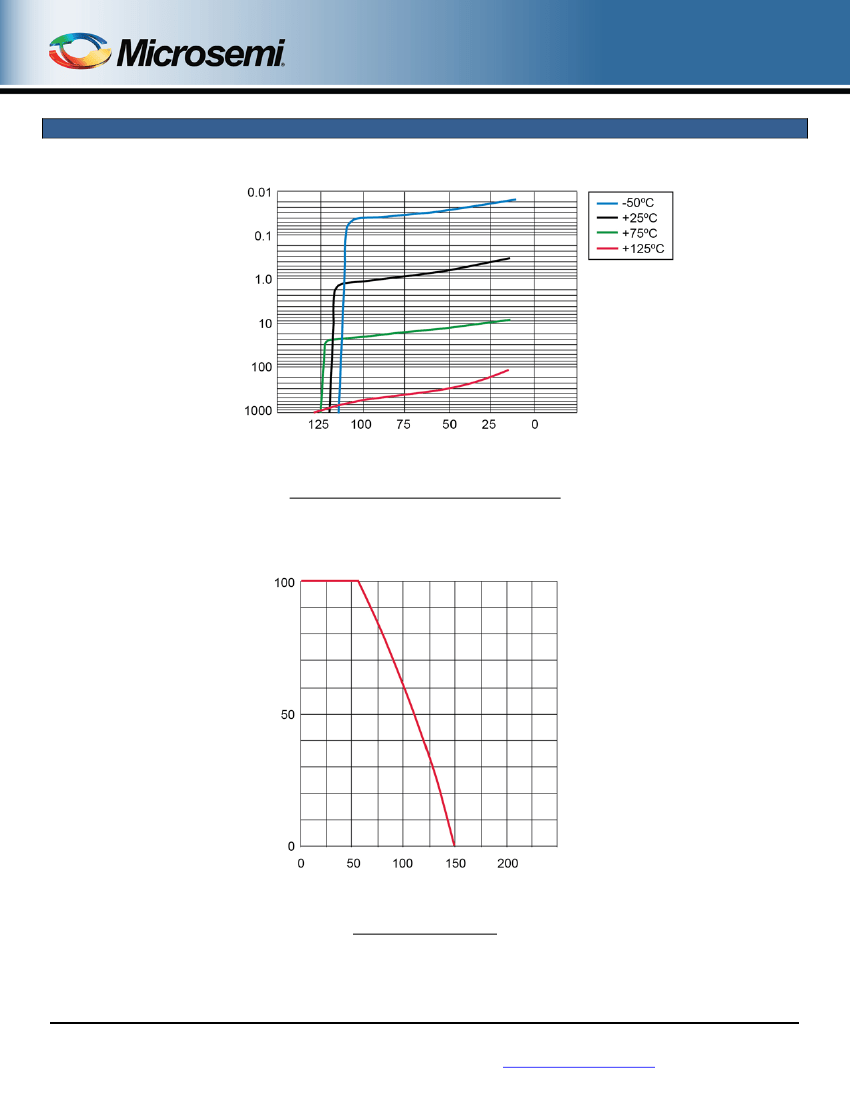

Typical Reverse Current - mA
% of Rated Voltage
FIGURE 2
Typical Reverse Leakage Current – Per Leg
% of Rating
Case Temperature - ºC
FIGURE 3
Current Derating Curve
RF01149, Rev. A (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 5 of 6
One Enterprise, Aliso Viejo, CA 92656
