Part Number:
Status:
Overview:
Description:
0008580135
Active
kk
KK® Crimp Terminal 8818, 18-22 AWG, Reel, Phosphor Bronze Selective Gold (Au)
Documents:
Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Series

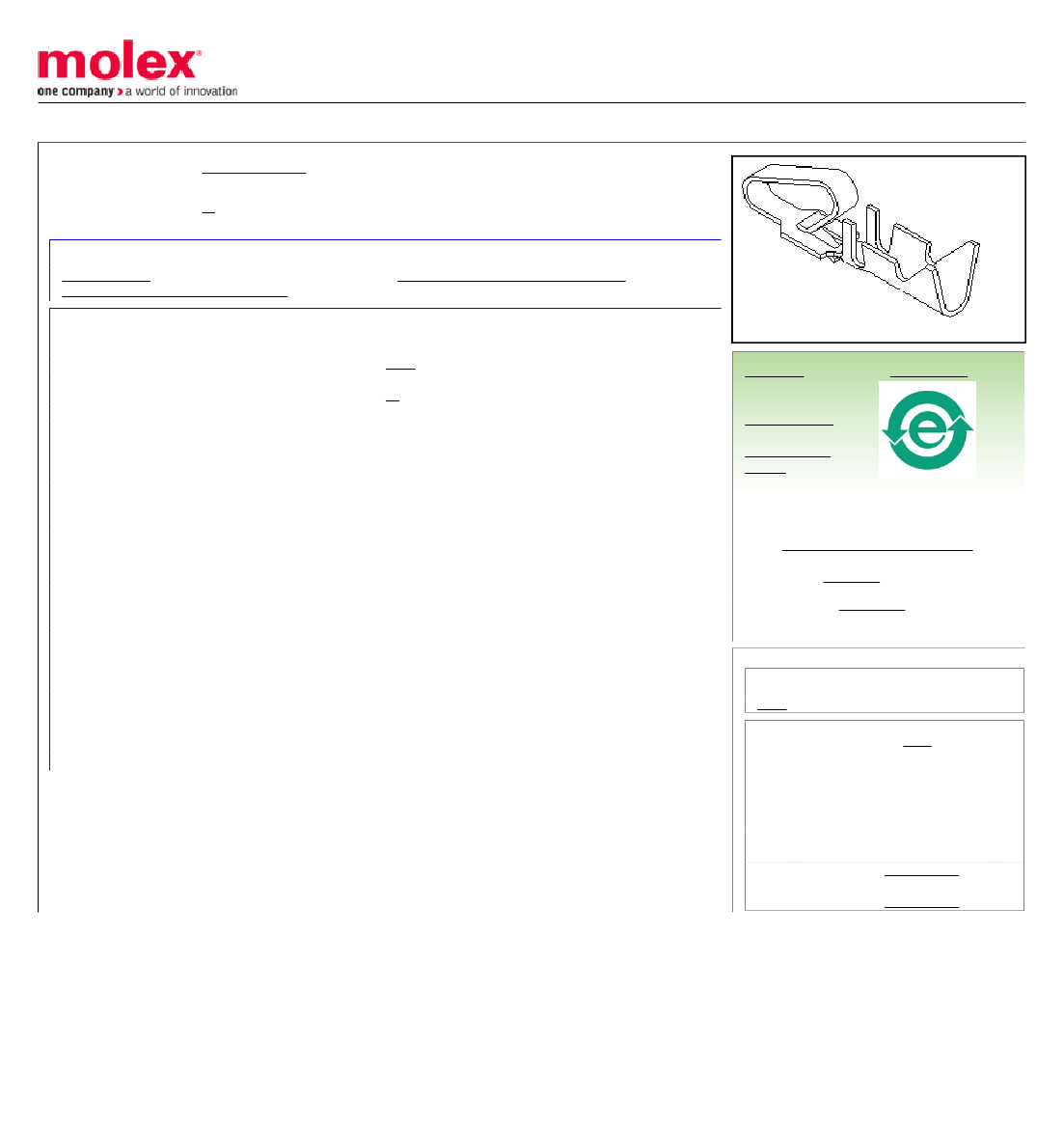

image - Reference only
Crimp Terminals
8818
Yes
kk
KK®
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Gold
Gold
Reel
15
0.375
2
0.05
Crimp or Compression
2.41mm (.095") max.
18, 20, 22
N/A
Material Info
Old Part Number
8818-A(550)
Search Parts in this Series
8818Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638881100
Applicator
Hand Crimper
0638117500
Reference - Drawing Numbers
Product Specification

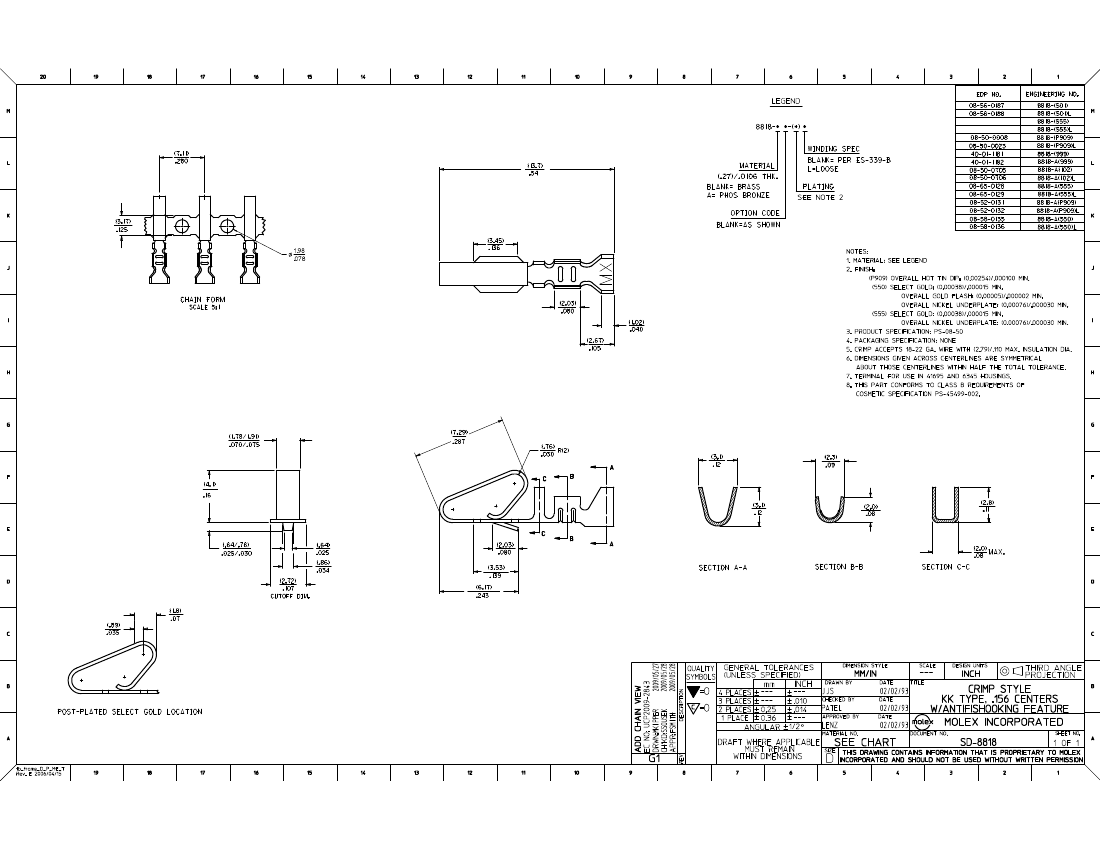

Sales Drawing
PS-08-50
SD-8818
