E-3001-9 Overview

5.08mm

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0010011094
Active
kk
5.08mm (.200") Pitch KK® Crimp Terminal Housing, 9 Circuits
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Overview
Product Name
Crimp Housings
3001
kk
KK®
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Temperature Range - Operating
9
Natural
94V-2
Female
No
Nylon
1
Bag
No
0.200 In
5.08 mm
-40°C to +105°C
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Search Parts in this Series
3001Series
Mates With
3061 , 3003 , 3008
Material Info
Old Part Number
3001-09

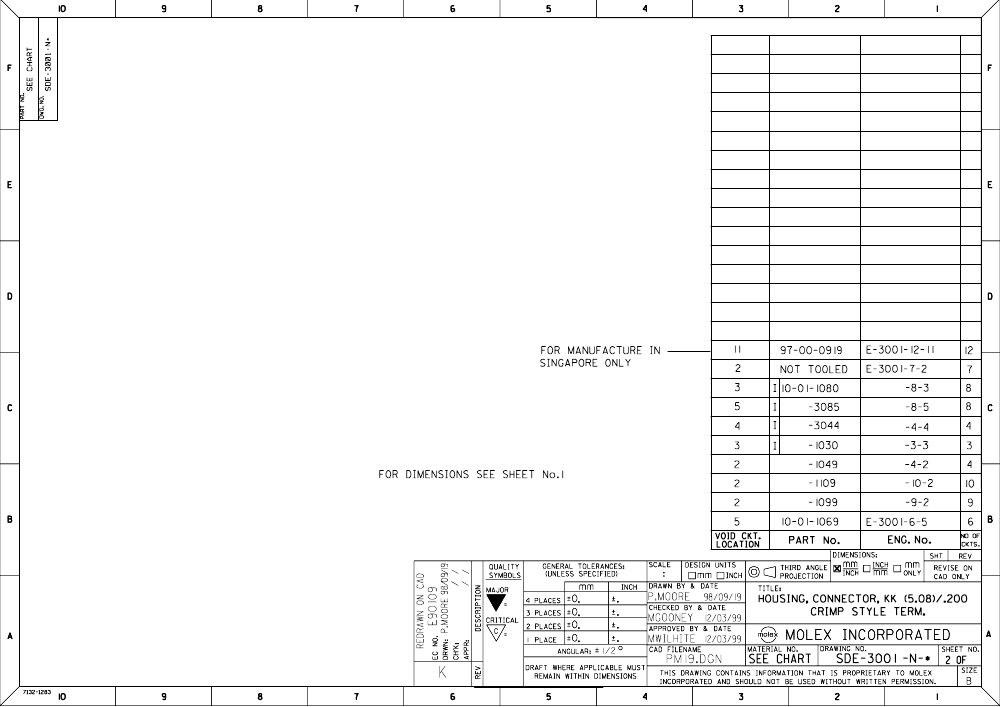

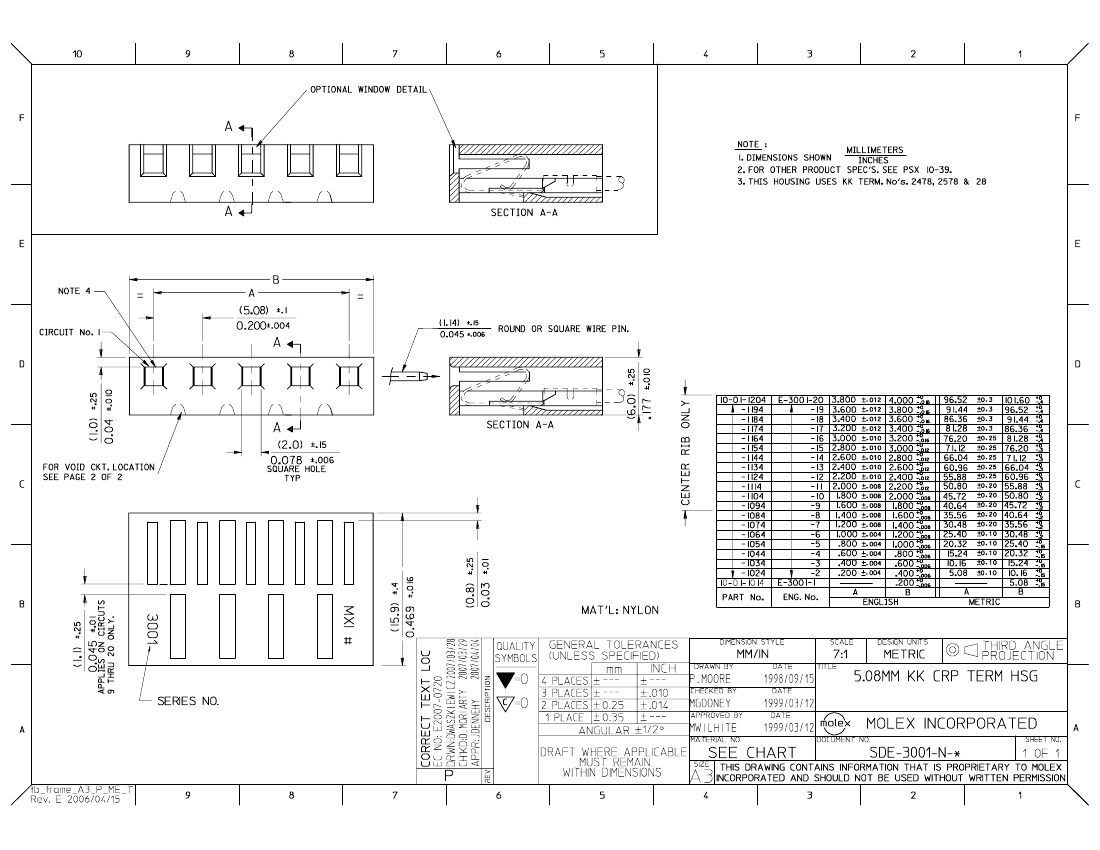

Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-99020-0087
SDE-3001-N-*
Use With
2478 Crimp Terminals for 18-24 AWG, 2578
Crimp Terminals for 22-26 AWG, 2878
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
