310-43-40-023000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 310-43-40-023000

310-43-40-023000: DescriptionBoard Connector; CategoryThe connector The connector; File Size605KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

310-43-40-023000 Overview

Board Connector

310-43-40-023000 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Manufacturer's serial number	310

Preview

Download Datasheet

View All

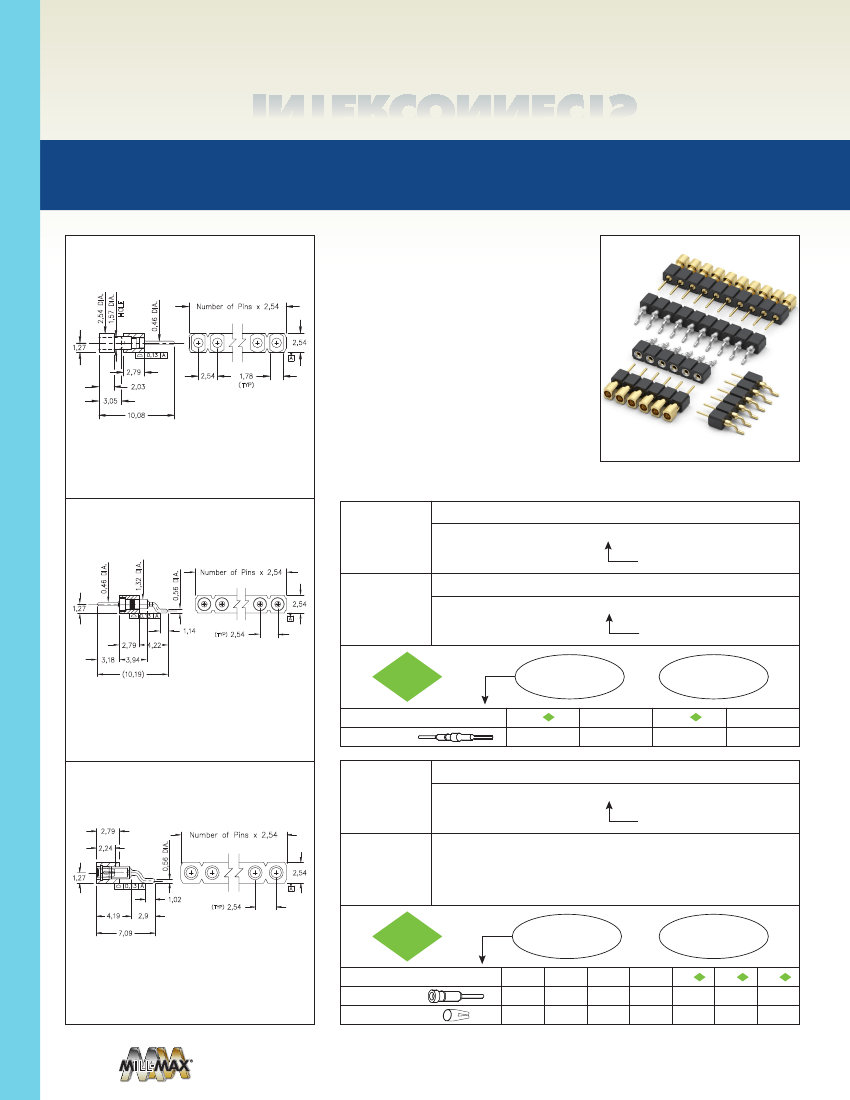

INTERCONNECTS

SERIES 310, 330, 351• 2,54 GRID (0,46 DIA. PINS),

SURFACE MOUNT HEADERS AND SOCKETS • SINGLE ROW STRIPS

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

2,54 DIA.

1,57 DIA.

HOLE

0,46 DIA.

•

Series 351 horizontal surface mount headers

are availble with 0,46 dia. pluggable pins

(MM #5102). Series 330 horizontal surface

mount z-bend headers use MM #3027 pins.

See page 224 for details

Number of Pins x 2,54

•

Series 310 horizontal surface mount Z-Bend

2,54

1,27

0,13 A

2,79

2,03

2,54

1,78

(TYP)

sockets uses MM #1023 receptacles that accept

pin diameters from 0,38 - 0,64. See pages 171

for details

suitable for all soldering operations

3,05

10,08

•

Insulators are high temperature thermoplastic,

•

Ideal for daisy chaining parallel boards

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

FIG. 1

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

0,46 DIA.

1,32 DIA.

ORDERING INFORMATION

Series 351...002

0,46 Dia. Surface Mount Header

351-10-1_ _-40-002000

Specify number of pins

02-10

FIG. 1

Series 330...027

0,56 DIA.

Number of Pins x 2,54

0,46 Dia. Surface Mount Z-Bend Header

330-XX-1_ _-40-027000

02-10

For

Electrical, Mechanical

& Enviromental Data,

See page 264

1,27

0,13 A

2,54

FIG. 2

RoHS - 2

1,14

2,79

3,18

3,94

(10,19)

4,22

(TYP)

2,54

Specify number of pins

XX=Plating Code

See Below

0,25μm

2011/65/EU

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm

FIG. 2

Mates with Series 351...002 and 330...027

Surface Mount Header (See Fig. 1 & 2)

2,79

2,24

0,56 DIA.

Series 310...023

0,46 Dia. Surface Mount Z-Bend Socket

310-XX-1_ _-40-023000

02-10

FIG. 3

Specify number of pins

Number of Pins x 2,54

PAGE 50 | INTERCONNECTS

1,27

0,13 A

2,54

1,02

(TYP)

2,54

4,19

7,09

2,9

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Sleeve

(Pin)

Contact

(Clip)

FIG. 3

5,08μm

Sn/Pb

5,08μm

Sn/Pb

5,08μm

Sn/Pb

5,08μm

0,25μm

0,76μm

2,54μm

Sn/Pb

0,25μm

0,76μm

2,54μm

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

310-43-40-023000 Related Products

	310-43-40-023000	330-10-107-40-027000	LMV1032UR-15	330-10-106-40-027000	330-10-109-40-027000	330-10-102-40-027000	330-10-104-40-027000	310-43-107-40-023000	310-41-40-023000	310-91-40-023000
Description	Board Connector	conn hdr 7pos .100 horiz smd	Amplifiers for 3-Wire Analog Electret Microphones	conn hdr 6pos .100 horiz smd	conn hdr 9pos .100 horiz smd	conn hdr 2pos .100 horiz smd	conn hdr 4pos .100 horiz smd	conn skt 7pos .100 horiz smd	Board Connector	Board Connector
Maker	Mill-Max	-	-	Mill-Max	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	Mill-Max
Reach Compliance Code	compliant	compli	-	compliant	compliant	compli	compliant	compliant	compli	compli
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Manufacturer's serial number	310	330	-	330	330	-	330	-	310	310
Contact to complete cooperation	-	AU ON NI	-	AU ON NI	AU ON NI	NOT SPECIFIED	AU ON NI	GOLD (30) OVER NICKEL (100)	-	-
Contact point gender	-	MALE	-	MALE	MALE	MALE	MALE	FEMALE	-	-
Installation method	-	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-
Installation type	-	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	-	-
Number of rows loaded	-	1	-	1	1	1	1	1	-	-
Termination type	-	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-
Total number of contacts	-	7	-	6	9	2	4	7	-	-
Base Number Matches	-	1	-	1	1	1	1	1	-	-
