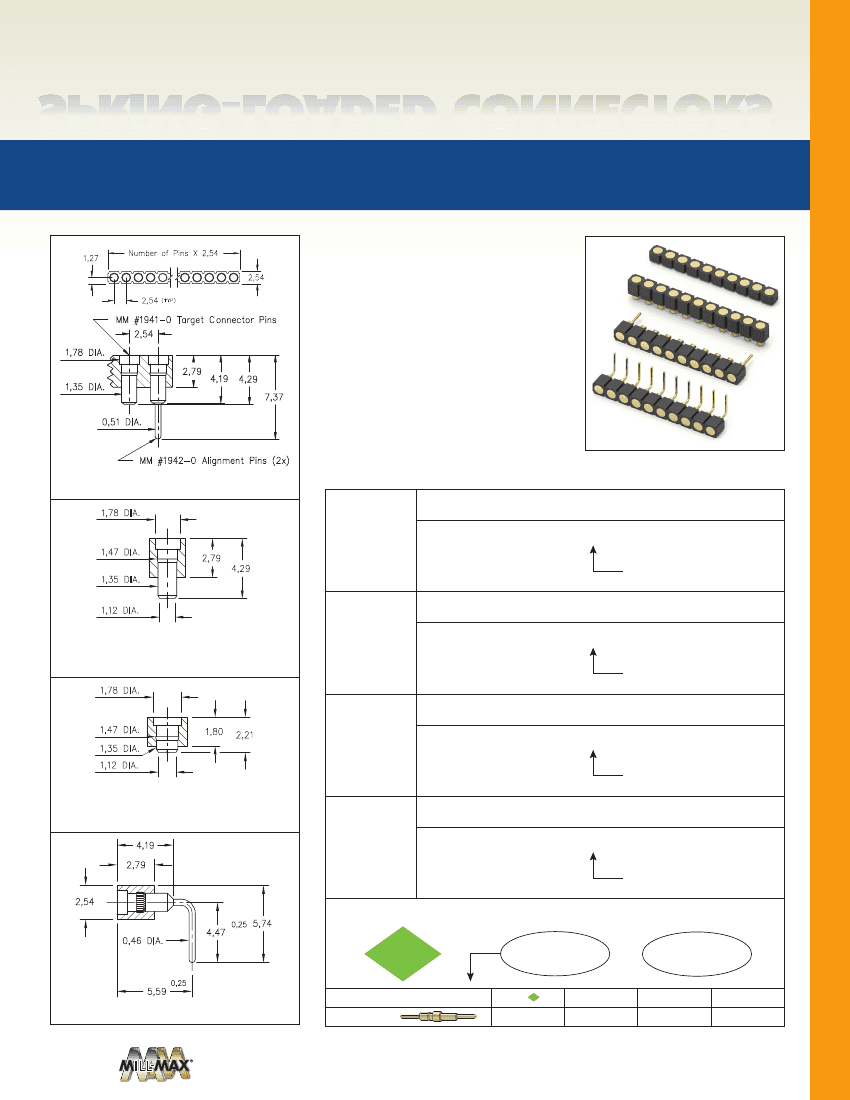

SPRING-LOADED
CONNECTORS
SERIES 319, 399 • 2,54 GRID TARGET CONNECTORS
FOR SPRING-LOADED ASSEMBLIES • SINGLE ROW STRIPS
• Series 319 and 399 Spring Target Connectors,
supplied in single row strips. Available in SMT
and right angle through-hole termination
configurations
• Target Connectors provide an excellent gold-
plated conductive mating surface for spring
loaded connectors. These series are offered
with a flat face for making contact with our
standard 1,07 dia. spring pin plungers
• Target connectors use MM #1940, #1941/1942,
#1953 and #1954 pins. See pages 218 & 223.3
for details
• Insulators are high temperature thermoplastic
1,27
Number of Pins X 2,54
2,54
2,54
FIG. 1
1,78 DIA.
ORDERING INFORMATION
Series 319...041
Surface Mount w/ Alignments Pins
319-10-1_ _-30-041000
Specify number of pins
03-64
1,47 DIA.
1,35 DIA.
1,12 DIA.
2,79
FIG. 1
4,29
Series 319...008
Surface Mount
319-10-1_ _-30-008000
Coplanarity 0,13. For Pin counts >10 positions, consult
Technical Support.
FIG. 2
FIG. 2
Series 319...054
Specify number of pins
01-64
1,78 DIA.
Low Profile Surface Mount
319-10-1_ _-30-054000
1,47 DIA.
1,35 DIA.
1,12 DIA.
1,80
2,21
Coplanarity 0,13. For Pin counts >10 positions, consult
Technical Support.
Specify number of pins
01-64
FIG. 3
Series 399...008
Right Angle Solder Tails
399-10-1_ _-10-008000
4,19
2,79
FIG. 4
Specify number of pins
01-64
2,54
4,47
±
0,25
5,74
2011/65/EU
0,46 DIA.
RoHS - 2
XX=Plating Code
See Below
10
0,25μm Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
5,59
±
0,25
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 20.1 | SPRING-LOADED CONNECTORS
