191951037: DescriptionMagKrimpâ¢ Round Ring Tongue Terminal for 12 AWG Magnet Wire, 10,380-52,480Circular Mil Area, Stud Size; File Size101KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

191951037 Overview

MagKrimpâ¢ Round Ring Tongue Terminal for 12 AWG Magnet Wire, 10,380-52,480Circular Mil Area, Stud Size

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0191951037

Active

MagKrimp™ Round Ring Tongue Terminal for 12 AWG Magnet Wire, 10,380-52,480

Circular Mil Area, Stud Size 1/2", Plated

Documents:

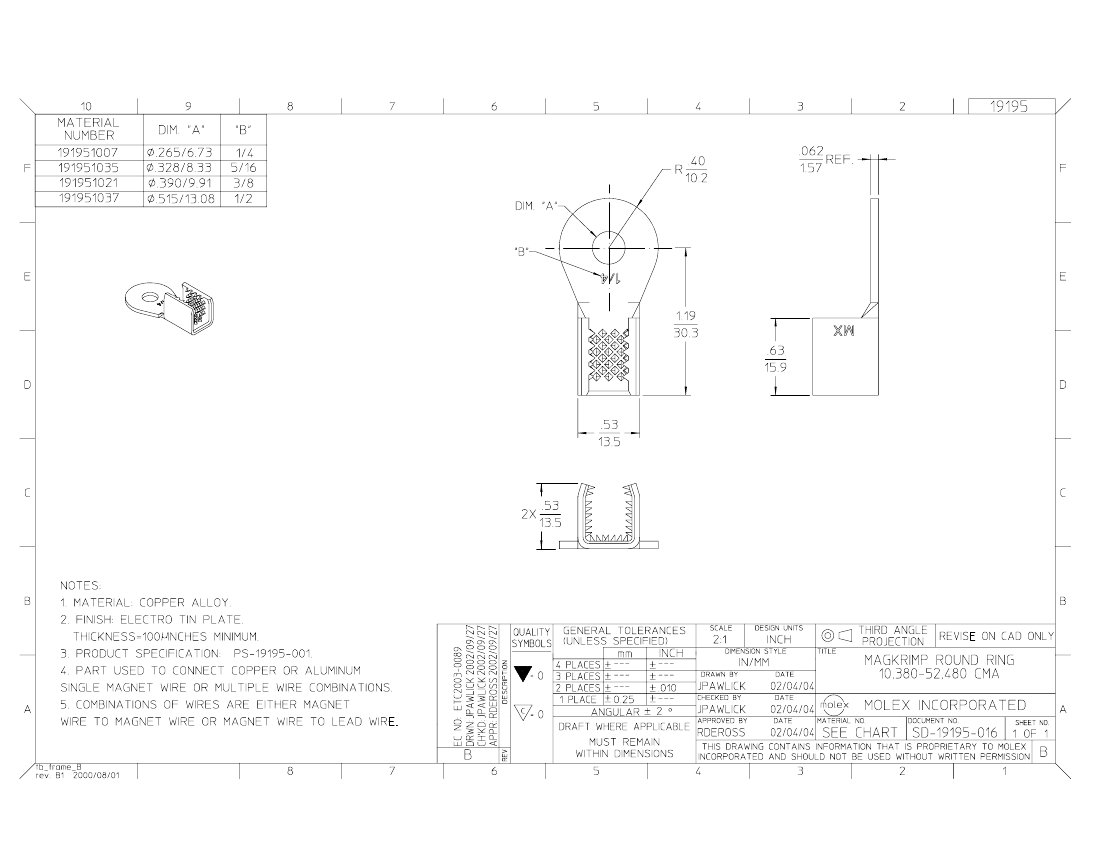

Drawing (PDF)

Product Specification PS-19195-001 (PDF)

Product Specification PS-19902-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

E32244

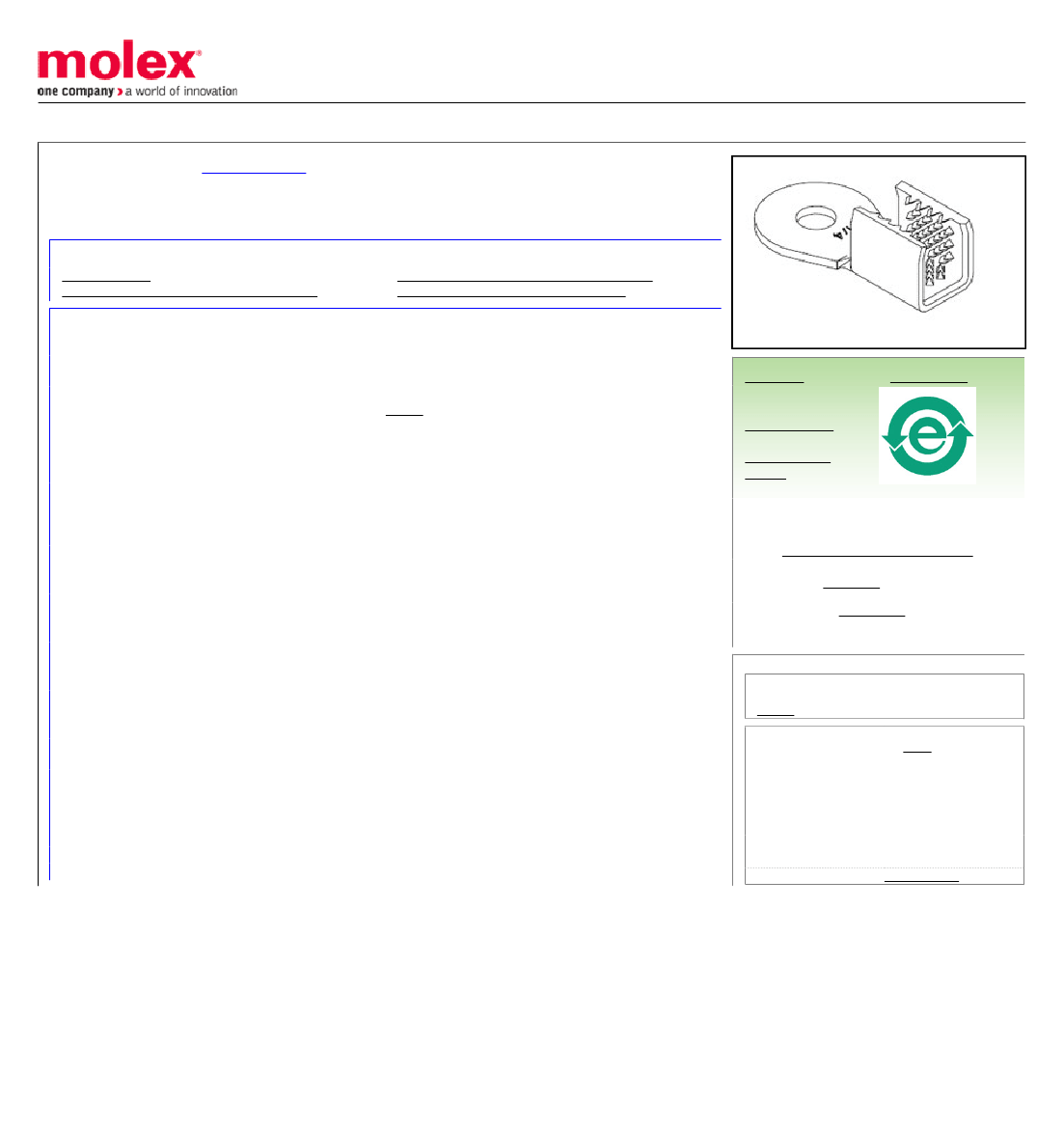

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Comments

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19195

6 wires maximum for 12 AWG. Conductors heavier than

6 AWG require special dies - contact Molex.

Yes

N/A

MagKrimp™(Magnet Wire)

Ring

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Open

None

Tin

Bag

100

2.5

100

2.5

1/2" (M12)

-40°C to +100°C

2.7

Search Parts in this Series

19195Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hydraulic Crimp Dies 0190780131

Electrical

Voltage - Maximum

2000V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-19195-001, PS-19902-001

SD-19195-016

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
