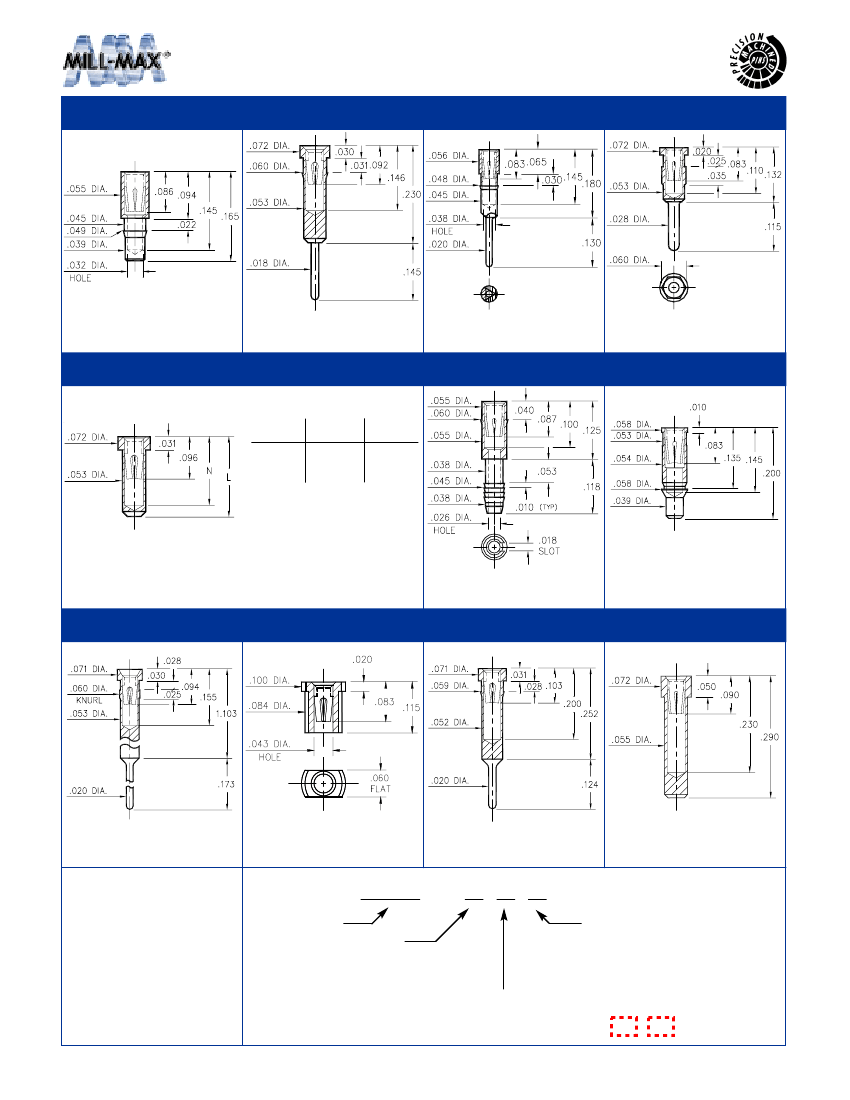

PIN RECEPTACLES
for .015” - .025” diameter pins
0385
4001
1782
5960
0385-0-15-XX-43-XX-10-0
Press-fit in .046 mounting hole
4001-0-15-XX-43-XX-04-0
Press-fit in .057 mounting hole
1782-0-15-XX-43-XX-04-0
Press-fit in .045 mounting hole
5960-0-15-XX-43-XX-04-0
Hex press-fit in .057 plated
thru hole
1401/3185
Basic Part
Number
Depth
N
Length
L
4310
1385
1401-0
3185-0
.145
.109
.165
.130
XXXX-0-15-XX-30-XX-10-0
Solder mount in .055 min.
mounting hole
4310-0-31-XX-43-XX-04-0
Compliant press-fit in .040±.003 plated
hole. For .090→.130 thick board.
1385-0-15-XX-43-XX-10-0
Surface mount
3018
3907
8852
8363
3018-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
3907-0-18-XX-30-XX-10-0
Surface mount
8852-0-15-XX-30-XX-04-0
Press-fit in .056 mounting hole
8363-0-15-XX-35-XX-10-0
Solder mount in .057 min.
mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
SELECT CONTACT
#30, #35 OR #43
CONTACT (DATA ON PAGES 208 & 209)
SPECIFY CONTACT FINISH:
02
200µ"
TIN/LEAD OVER
NICKEL
14
10µ"
GOLD OVER
NICKEL
27
30µ"
GOLD OVER
NICKEL
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
