This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0334821603
Active
mx150_sealed_connector_system
3.50mm (.138") Pitch MX150™ Sealed Male Connector, Dual Row, 16 Circuits,
Polarization C, without Connector Position Assurance, Gray
Documents:
3D Model
Application Specification (PDF)
Drawing (PDF)
Product Specification PS-33472-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Comments
More Detailed Tech Information
Overview
Product Name
Crimp Housings
33482
No Connector Position Assurance (CPA)
http://ewcap.uscarteams.org
mx150_sealed_connector_system
MX150™
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
16
16
Black, Brown, Natural
Male
No
Yes
Yes
Modified Polystyrene Alloy
2
Bag
No
0.138 In
3.50 mm
Yes
No
-40°C to +125°C
Search Parts in this Series
33482Series
Mates With
33472 Female Dual Row Sealed Connector
Use With
33000 MX150™ Tin (Sn) Male Terminal,
33011 Gold (Au) Male Terminal
Electrical
Current - Maximum per Contact
22A
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification

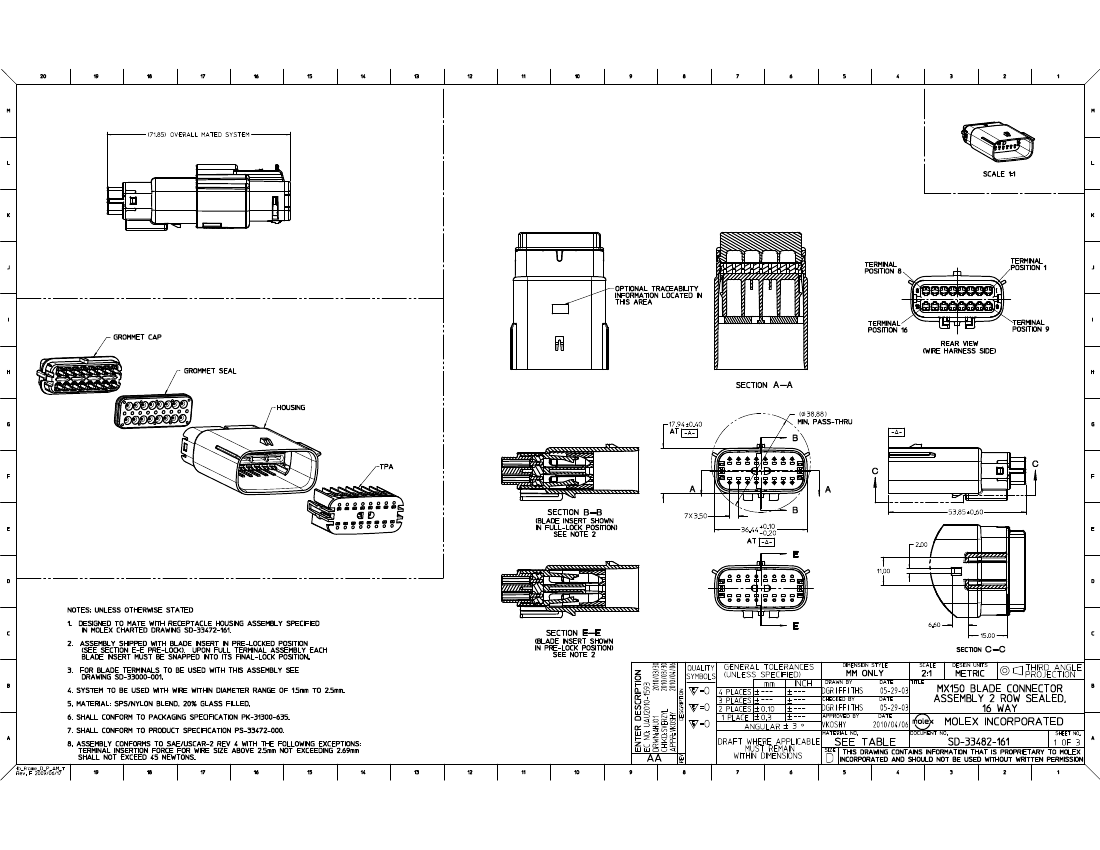

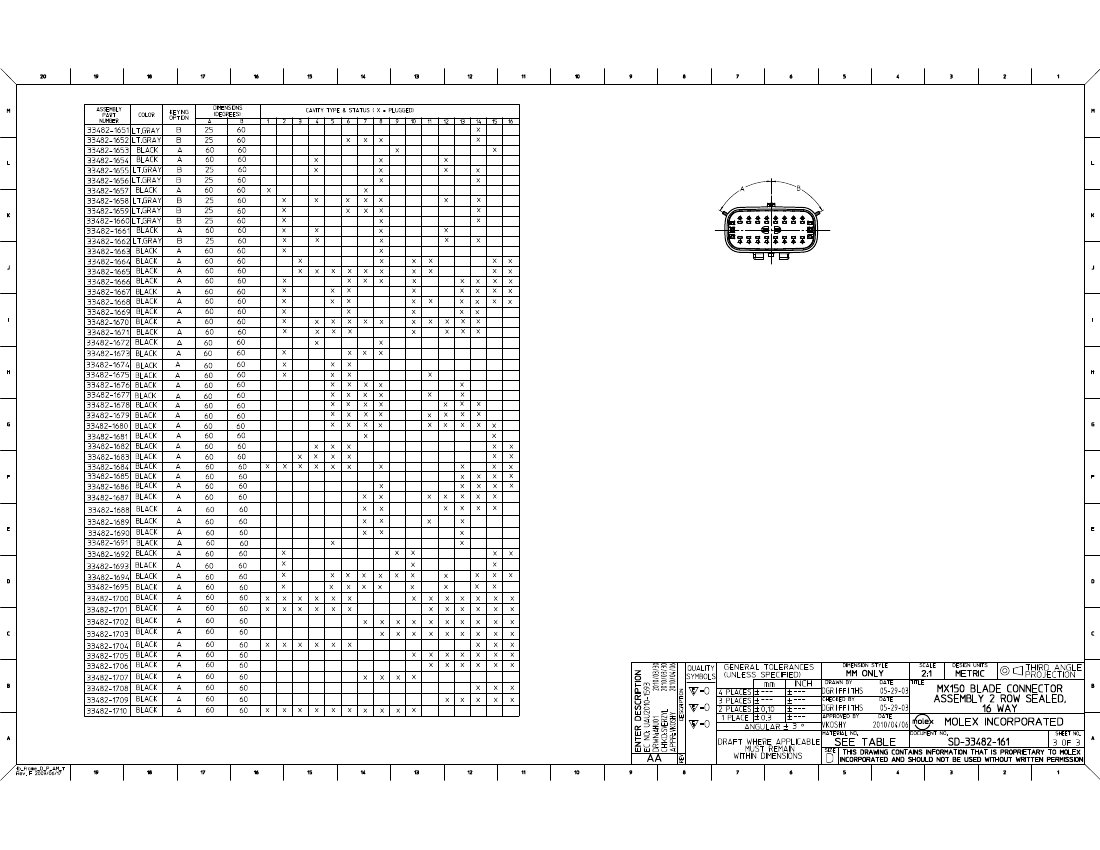

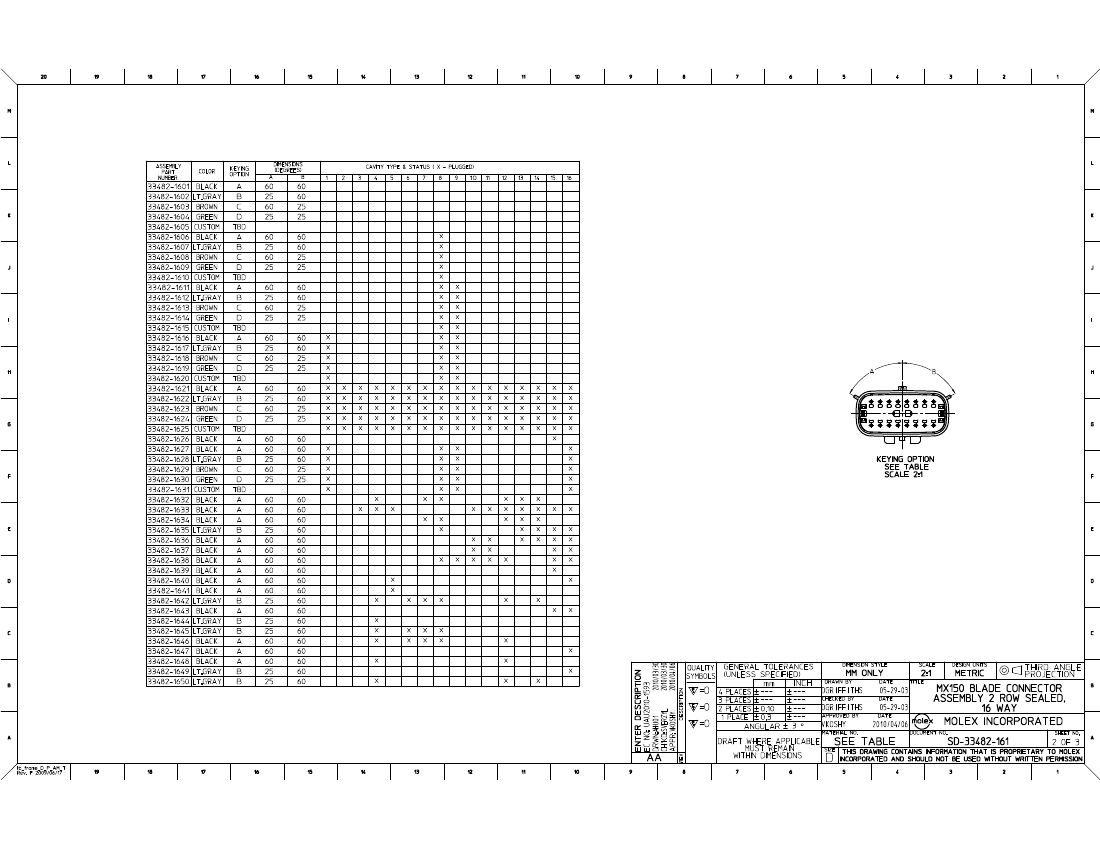

Sales Drawing
AS-33472-100
PK-30907-811, PK-31300-635
PS-33472-000
SD-33482-161
This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
