ZB4PD1-152-75+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZB4PD1-152-75+

ZB4PD1-152-75+: DescriptionSplitter And Combiner, 650MHz Min, 1500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size240KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

ZB4PD1-152-75+ Overview

Splitter And Combiner, 650MHz Min, 1500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

ZB4PD1-152-75+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	BNC
Characteristic impedance	75 Ω
structure	COAXIAL
Maximum input power (CW)	46.02 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	1500 MHz
Minimum operating frequency	650 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

Power Splitter/Combiner

4 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

DC Current (each port)

DC Pass

ZB4PD1-152-75+

75Ω

-55°C to 100°C

650 to 1500 MHz

Features

• high isolation, 23 dB typ.

• rugged shielded case

• very good VSWR, 1.10:1 typ.

• up to 10W power input as a splitter

• DC pass sum port to all output ports

CASE STYLE: UU188

Connectors Model

Price

Qty.

BNC

ZB4PD1-152-75+

$99.95 ea.

(1-9)

Maximum Ratings

10W max.

0.375W max.

125A max.

Permanent damage may occur if any of these limits are exceeded.

Applications

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

• cellular

• communication systems

• receivers/transmitters

FREQ.

RANGE

(MHz)

-f

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Electrical Specifications

ISOLATION

(dB)

Typ. Min.

INSERTION LOSS (dB)

ABOVE 6.0 dB

Typ.

0.6

Max.

1.2

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.4

Typ.

1.20

VSWR

(:1)

Max.

1.5

OUT

Typ. Max.

1.15

1.30

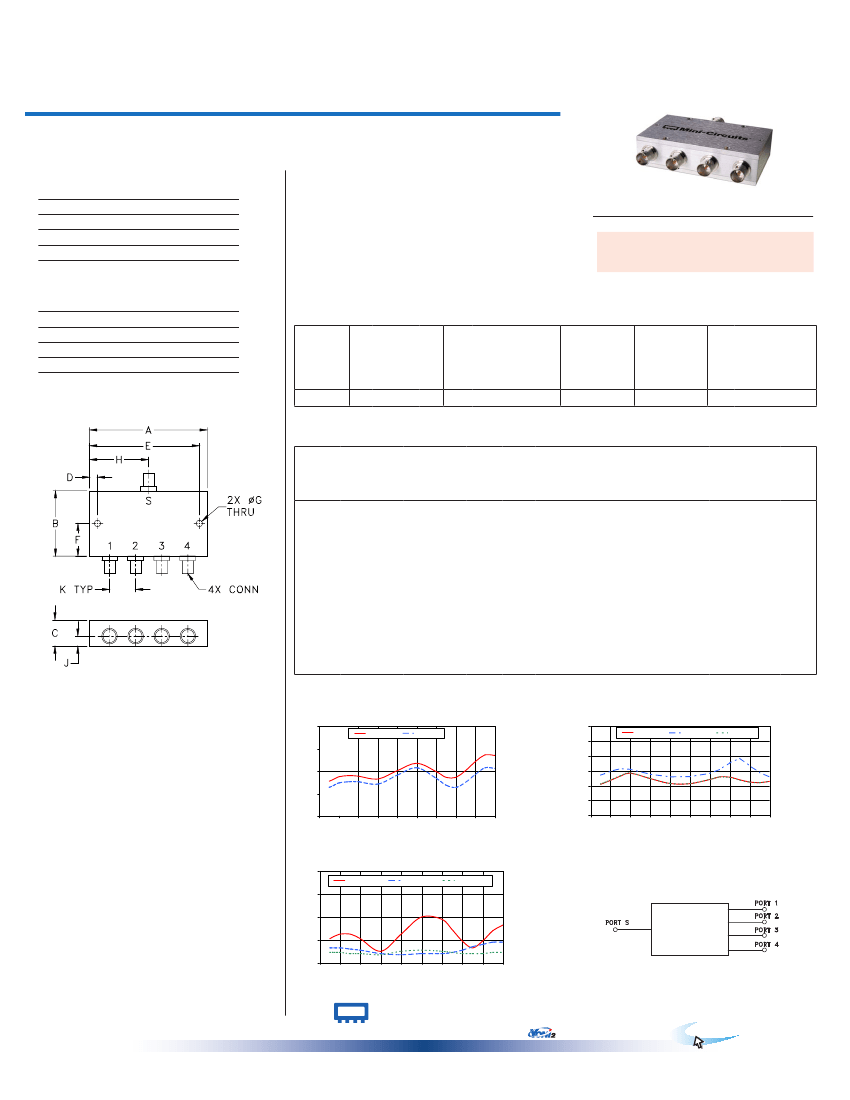

Outline Drawing

650-1500

Typical Performance Data

Freq.

(MHz)

S-1

650.00

670.00

700.00

750.00

800.00

900.00

1000.00

1100.00

1200.00

1250.00

1300.00

1350.00

1400.00

1450.00

1500.00

6.42

6.45

6.50

6.52

6.51

6.46

6.61

6.74

6.59

6.49

6.61

6.77

6.89

6.88

Total Loss

(dB)

S-2

6.31

6.34

6.38

6.40

6.39

6.36

6.53

6.66

6.47

6.36

6.32

6.42

6.57

6.69

Amp.

Unbal.

(dB)

S-4

6.43

6.46

6.51

6.54

6.53

6.47

6.61

6.73

6.59

6.49

6.59

6.74

6.85

6.84

0.12

0.13

0.14

0.11

0.08

0.12

0.14

0.18

0.21

0.22

0.23

0.22

Isolation

(dB)

1-2

20.81

21.83

23.48

26.33

28.30

24.70

21.39

21.27

24.09

25.82

25.63

23.83

22.39

21.99

22.79

Phase VSWR VSWR VSWR VSWR VSWR

Unbal.

deg.

3-4

21.04

22.08

23.74

26.57

28.43

24.68

21.44

21.37

24.18

25.78

25.39

23.62

22.26

21.92

22.86

1.18

1.23

1.28

1.34

1.40

1.50

1.83

2.39

2.89

3.00

3.04

3.10

3.11

3.27

3.39

1.21

1.23

1.25

1.21

1.10

1.25

1.40

1.38

1.29

1.19

1.13

1.19

1.28

1.33

1.13

1.12

1.11

1.08

1.07

1.08

1.09

1.11

1.14

1.16

1.18

1.09

1.08

1.10

1.12

1.10

1.09

1.07

1.09

1.08

1.07

1.10

1.11

1.10

1.09

1.08

1.09

1.12

1.11

1.08

1.07

1.08

1.10

1.11

1.13

1.15

1.16

1.17

S-3

6.31

6.34

6.39

6.41

6.37

6.53

6.66

6.47

6.35

6.31

6.40

6.54

6.66

6.65

2-3

26.97

28.00

29.59

31.37

30.90

27.58

25.85

26.00

28.21

30.91

35.26

38.31

33.30

28.77

25.67

1. Total Loss = Insertion Loss + 6dB splitter loss.

Outline Dimensions (

inch

)

TOTAL LOSS (dB)

ZB4PD1-152-75+

TOTAL LOSS

ZB4PD1-152-75+

ISOLATION

ISOLATION (dB)

600

700

800

900 1000 1100 1200 1300 1400 1500

FREQUENCY (MHz)

1-2(dB)

2-3(dB)

3-4(dB)

3.50

88.90

.125

3.18

2.13

54.10

1.75

44.45

.88

22.35

.44

11.18

.150

3.81

.89

22.61

3.350

85.09

1.06

26.92

grams

260

7.4

7.0

6.6

6.2

5.8

600

S-1(dB)

S-3(dB)

700

800

900 1000 1100 1200 1300 1400 1500

FREQUENCY (MHz)

1.80

1.60

VSWR

1.40

1.20

1.00

600

ZB4PD1-152-75+

VSWR

#S-VSWR

#1-VSWR

#3-VSWR

electrical schematic

700

800

900

1000 1100 1200 1300 1400 1500

FREQUENCY (MHz)

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. A

M127604

ED-12861/1

ZB4PD1-152-75+

HY/CP/AM

120109
