35164-1302: Description13 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size79KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

35164-1302 Overview

13 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

35164-1302 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Other features	COMPATIBLE CONTACTS: 35047-9802; 35047-9810
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35164
Plug information	35047-9802
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 03/11/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0351641302

Active

2.50mm (.098") Pitch Board-In Housing, 13 Circuits, Red

Documents:

Drawing (PDF)

Product Specification PS-35164-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Product Name

Crimp Housings

35164

Board-In

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Red

Male

None

Nylon

Bag

0.098 In

2.50 mm

-40°C to +105°C

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

Search Parts in this Series

35164Series

Mates With

350479802 Board-In Terminal

Material Info

Reference - Drawing Numbers

Product Specification

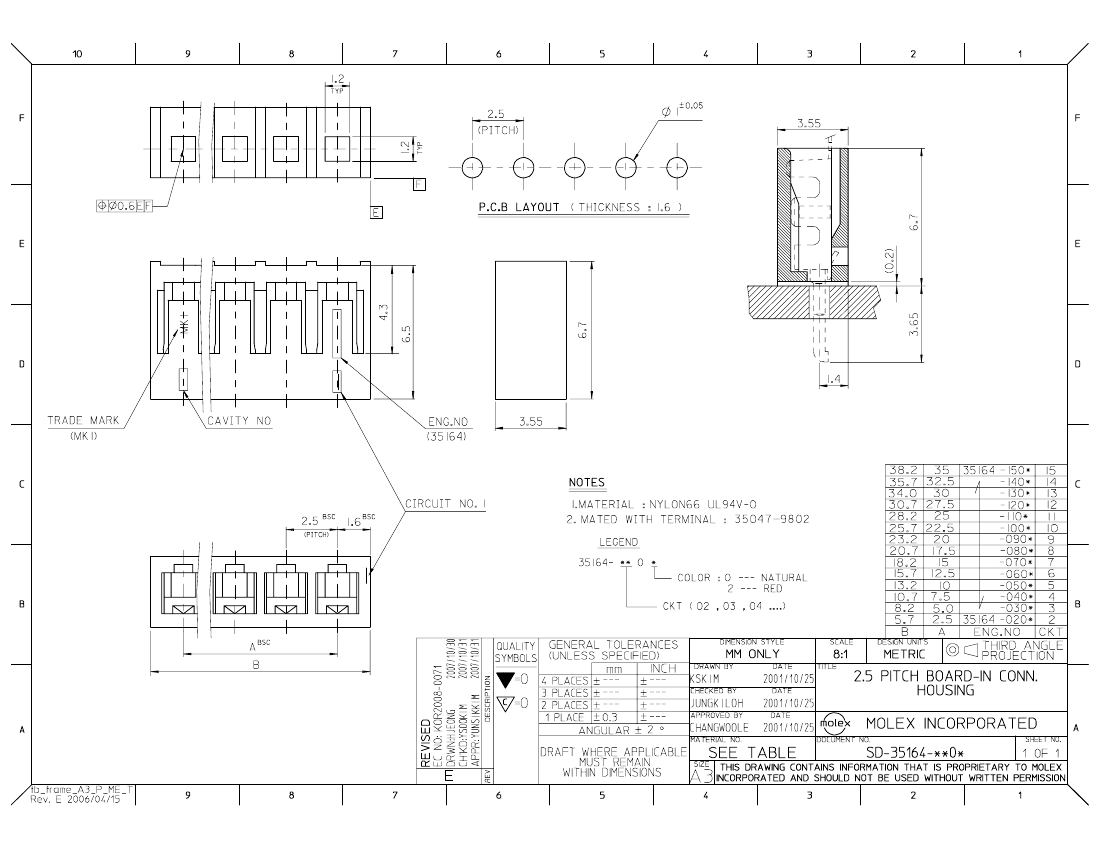

Sales Drawing

PS-35164-001

SD-35164-**0*

This document was generated on 03/11/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35164-1302 Related Products

	35164-1302	0351641302
Description	13 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	13 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Base Number Matches	1	1
