85048-0139 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85048-0139

85048-0139: Description64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size109KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

85048-0139 Overview

64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

85048-0139 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM
body width	0.413 inch
subject depth	0.496 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S60C4
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	YES
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9174 N
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	85048
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

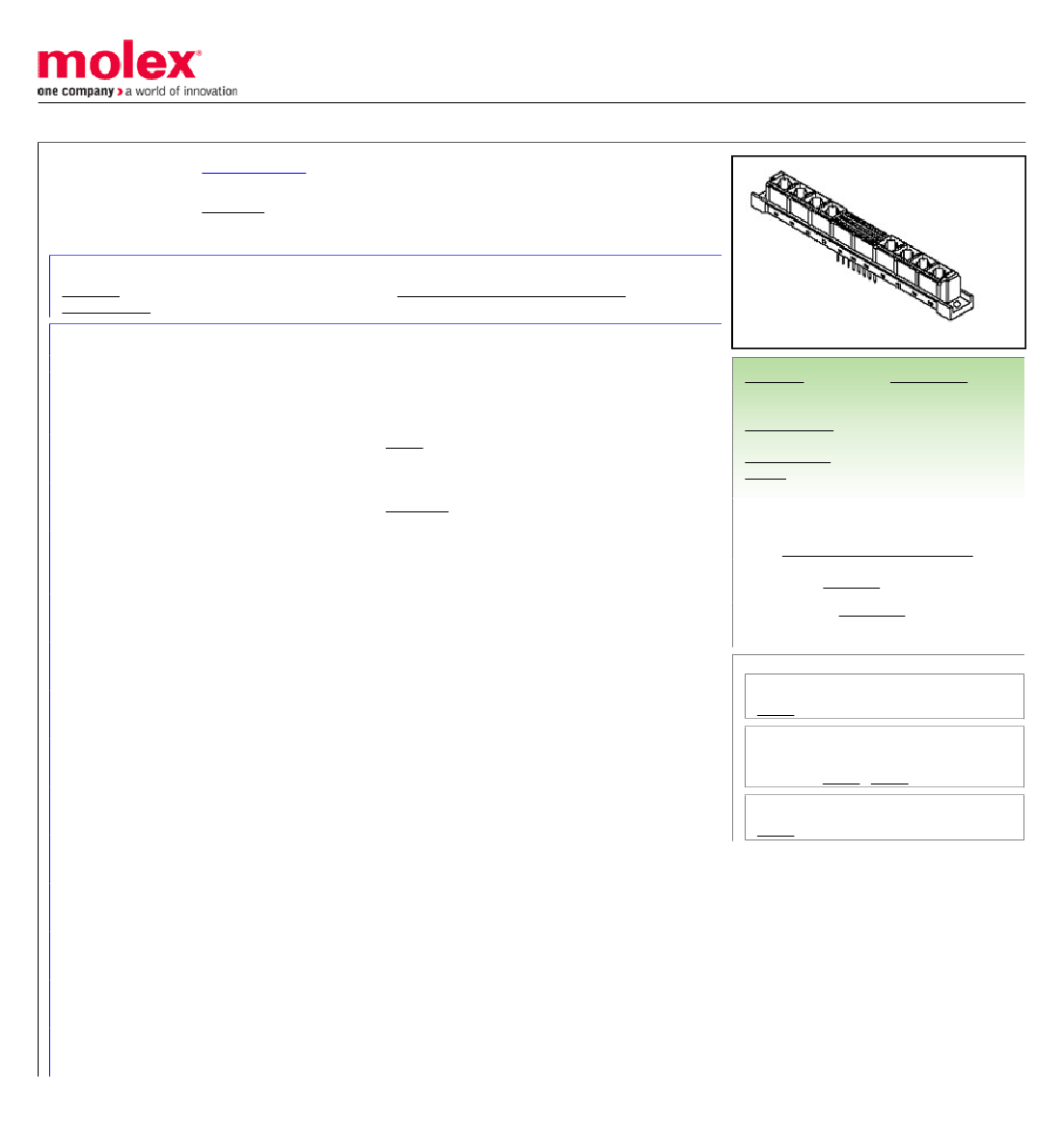

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850480139

Active

din_41612

2.54mm (.100") Pitch DIN 41612/IEC 603-2 Mixed Layout Connector, Through Hole,

Vertical, Female Style M, 64 Circuits

Documents:

3D Model

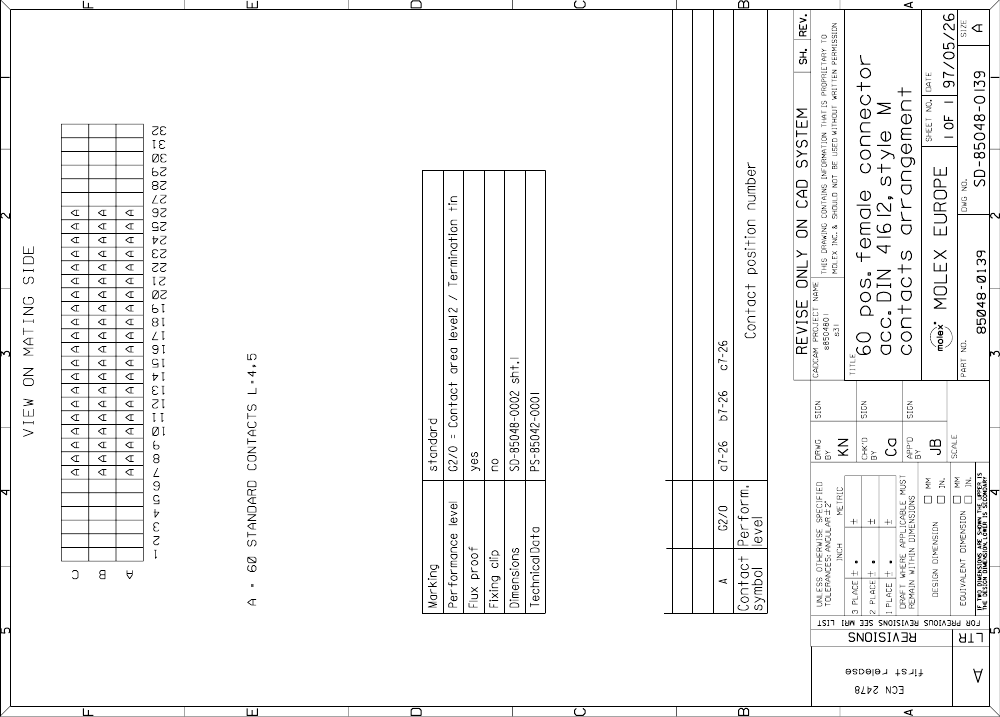

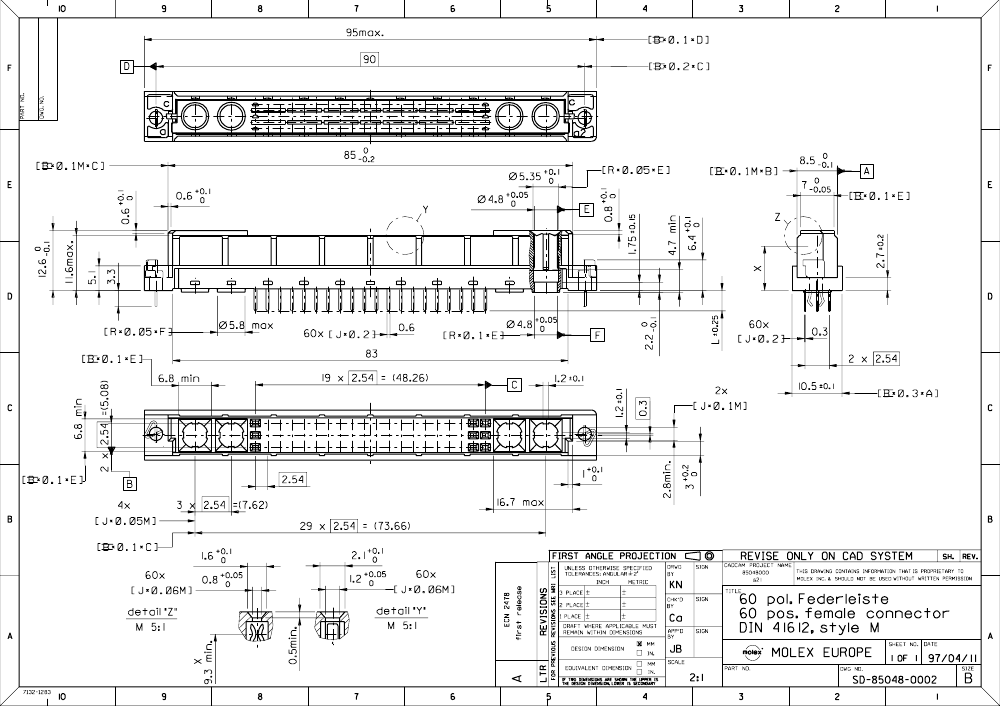

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

85048

Backplane

Mixed Layout

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Rows A, B & C

400

94V-0

Yes

Copper Alloy

Gold

Tin

Open Pin Field

Vertical

0.177 In

4.50 mm

Yes

Carton

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

Yes

-55°C to +125°C

Through Hole

Search Parts in this Series

85048Series

Mates With

DIN 41612/EIC 603-2 Mixed Layout

Connector 85009 , 85017

Use With

85022

85048-0139 Related Products

	85048-0139	0850480139
Description	64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER	64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER
