ATMEGA165PA-AU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATMEGA165PA-AU

ATMEGA165PA-AU: Description8-BIT, FLASH, 16 MHz, RISC MICROCONTROLLER, PQFP64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size352KB，20 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric Compare View All

ATMEGA165PA-AU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATMEGA165PA-AU	-	-	View	Buy Now

ATMEGA165PA-AU Overview

8-BIT, FLASH, 16 MHz, RISC MICROCONTROLLER, PQFP64

ATMEGA165PA-AU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Atmel (Microchip)
Parts packaging code	QFP
package instruction	TQFP, TQFP64,.63SQ,32
Contacts	64
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	1 week
Has ADC	YES
Other features	ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
length	14 mm
Number of I/O lines	54
Number of terminals	64
On-chip program ROM width	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Encapsulate equivalent code	TQFP64,.63SQ,32
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	8192
ROM programmability	FLASH
Maximum seat height	1.2 mm
speed	16 MHz
Maximum slew rate	9.5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Features

•

High Performance, Low Power AVR

8-Bit Microcontroller

•

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-Chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 16K Bytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1K Bytes Internal SRAM

– Write/Erase cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Universal Serial Interface with Start Condition Detector

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 54 Programmable I/O Lines

– 64-lead TQFP, 64-pad QFN/MLF and 64-pad DRQFN

Speed Grade:

– ATmega165PA: 0 - 16 MHz @ 1.8 - 5.5V

Temperature range:

– -40°C to 85°C Industrial

Ultra-Low Power Consumption

– Active Mode:

1 MHz, 1.8V: 215 µA

32 kHz, 1.8V: 8 µA (including Oscillator)

– Power-down Mode:

0.1 µA at 1.8V

– Power-save Mode:

0.6 µA at 1.8V (Including 32 kHz RTC)

•

8-bit

Microcontroller

with 16K Bytes

In-System

Programmable

Flash

ATmega165PA

•

Preliminary

Summary

•

Rev 8298AS–AVR–03/10

ATmega165PA

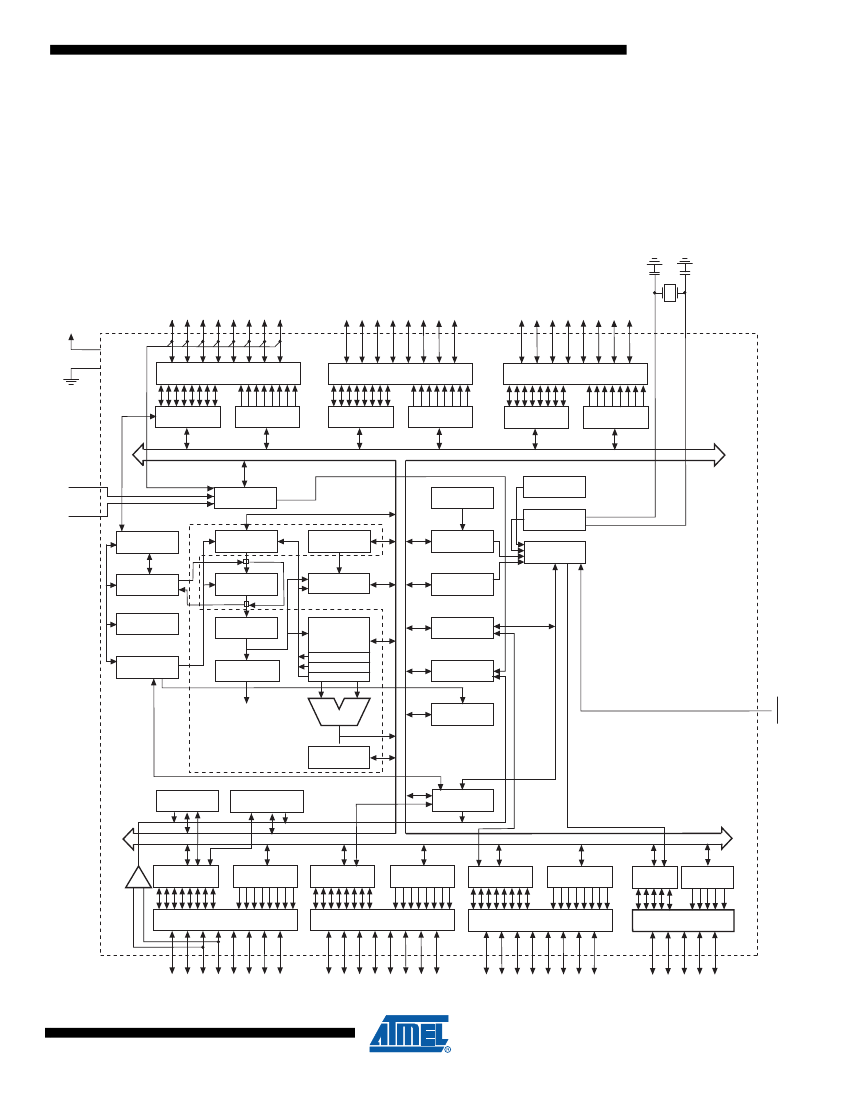

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent

registers to be accessed in one single instruction executed in one clock cycle. The resulting

architecture is more code efficient while achieving throughputs up to ten times faster than con-

ventional CISC microcontrollers.

The ATmega165PA provides the following features: 16K bytes of In-System Programmable

Flash with Read-While-Write capabilities, 512 bytes EEPROM, 1K byte SRAM, 53 general pur-

pose I/O lines, 32 general purpose working registers, a JTAG interface for Boundary-scan, On-

chip Debugging support and programming, three flexible Timer/Counters with compare modes,

internal and external interrupts, a serial programmable USART, Universal Serial Interface with

Start Condition Detector, an 8-channel, 10-bit ADC, a programmable Watchdog Timer with inter-

nal Oscillator, an SPI serial port, and five software selectable power saving modes. The Idle

mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system

to continue functioning. The Power-down mode saves the register contents but freezes the

Oscillator, disabling all other chip functions until the next interrupt or hardware reset. In Power-

save mode, the asynchronous timer continues to run, allowing the user to maintain a timer base

while the rest of the device is sleeping. The ADC Noise Reduction mode stops the CPU and all

I/O modules except asynchronous timer and ADC, to minimize switching noise during ADC con-

versions. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device

is sleeping. This allows very fast start-up combined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

On-chip ISP Flash allows the program memory to be reprogrammed In-System through an SPI

serial interface, by a conventional non-volatile memory programmer, or by an On-chip Boot pro-

gram running on the AVR core. The Boot program can use any interface to download the

application program in the Application Flash memory. Software in the Boot Flash section will

continue to run while the Application Flash section is updated, providing true Read-While-Write

operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a

monolithic chip, the Atmel ATmega165PA is a powerful microcontroller that provides a highly

flexible and cost effective solution to many embedded control applications.

The ATmega165PA AVR is supported with a full suite of program and system development tools

including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators,

and Evaluation kits.

8298AS–AVR–03/10

ATmega165PA

2.2

2.2.1

Pin Descriptions

VCC

Digital supply voltage.

2.2.2

GND

Ground.

2.2.3

Port A (PA7:PA0)

Port A is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port A output buffers have symmetrical drive characteristics with both high sink and source

capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up

resistors are activated. The Port A pins are tri-stated when a reset condition becomes active,

even if the clock is not running.

Port A also serves the functions of various special features of the ATmega165PA as listed on

”Alternate Functions of Port B” on page 69.

2.2.4

Port B (PB7:PB0)

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port B output buffers have symmetrical drive characteristics with both high sink and source

capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up

resistors are activated. The Port B pins are tri-stated when a reset condition becomes active,

even if the clock is not running.

Port B has better driving capabilities than the other ports.

Port B also serves the functions of various special features of the ATmega165PA as listed on

”Alternate Functions of Port B” on page 69.

2.2.5

Port C (PC7:PC0)

Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port C output buffers have symmetrical drive characteristics with both high sink and source

capability. As inputs, Port C pins that are externally pulled low will source current if the pull-up

resistors are activated. The Port C pins are tri-stated when a reset condition becomes active,

even if the clock is not running.

Port C also serves the functions of special features of the ATmega165PA as listed on

”Alternate

Functions of Port D” on page 72.

2.2.6

Port D (PD7:PD0)

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port D output buffers have symmetrical drive characteristics with both high sink and source

capability. As inputs, Port D pins that are externally pulled low will source current if the pull-up

resistors are activated. The Port D pins are tri-stated when a reset condition becomes active,

even if the clock is not running.

Port D also serves the functions of various special features of the ATmega165PA as listed on

”Alternate Functions of Port D” on page 72.

2.2.7

Port E (PE7:PE0)

Port E is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port E output buffers have symmetrical drive characteristics with both high sink and source

8298AS–AVR–03/10
