1051331001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1051331001

1051331001: DescriptionTelecom and Datacom Connector,; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

1051331001 Overview

Telecom and Datacom Connector,

1051331001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Connector type	USB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

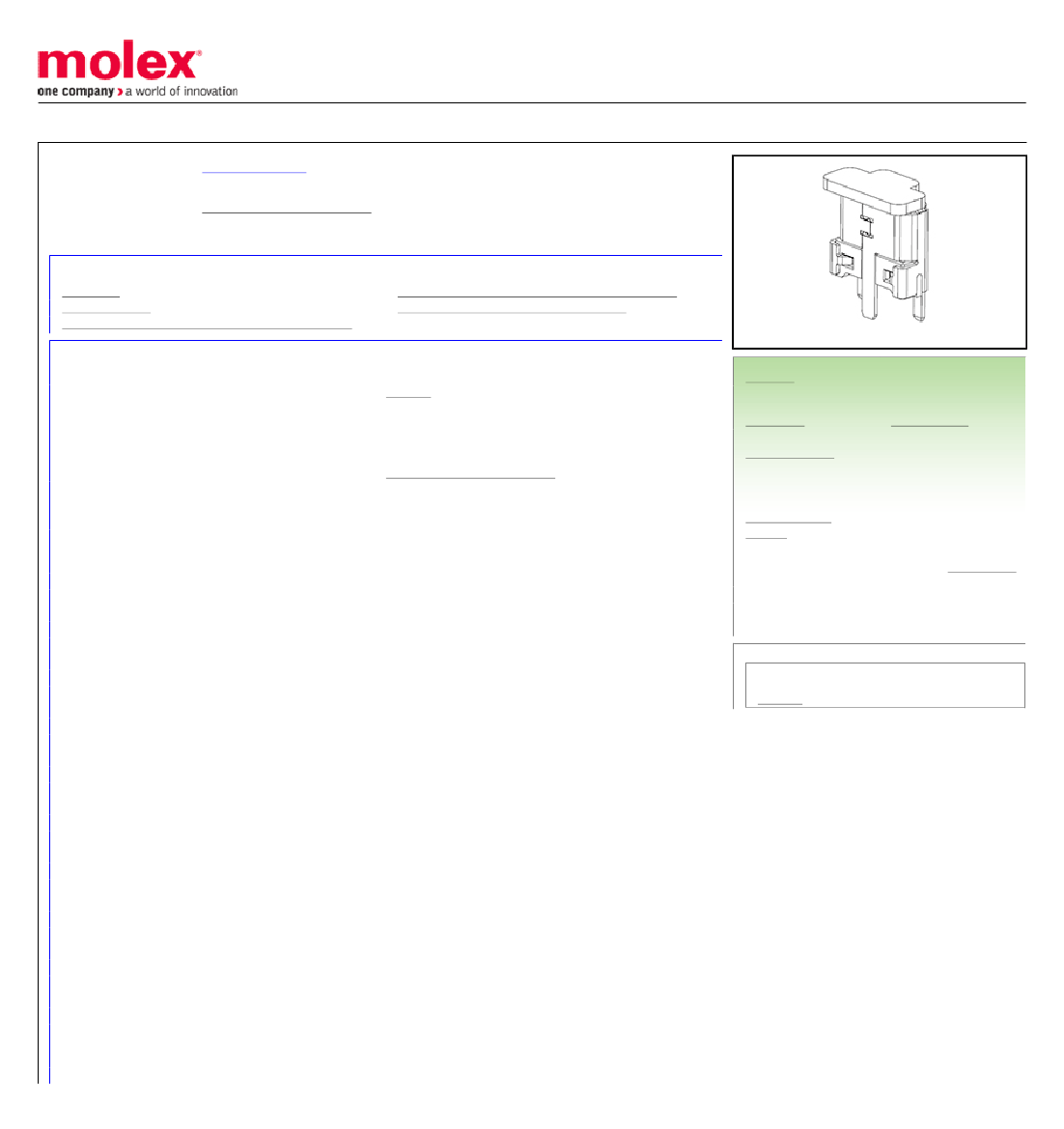

Preview

Download Datasheet

View All

This document was generated on 04/23/2019

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1051331001

Active

USB Products and Solutions

Micro-USB B Receptacle, Vertical, Surface Mount, 6.70mm Height, 2.30mm Solder

Tabs, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-105133-001-001 (PDF)

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Electrical

Current - Maximum per Contact

Packaging Specification PK-105133-011 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

I/O Connectors

105133

Wire-to-Board

Signal contacts 1.0A, Power contacts 1.8A, Signal

contacts 1.0A, Power contacts 1.8A

Receptacle

USB Products and Solutions

USB 2.0

Micro-B

889056402590

Black

10000

Female

Yes

Copper Alloy

Gold over Palladium Nickel

Gold

High Temperature Thermoplastic

0.350/g

Vertical

Yes

1.60mm

Embossed Tape on Reel

0.65mm

0.051µm (Au), 0.750µm (PdNi)

0.051µm

Yes

-30° to +85°C

Surface Mount

1.8A, 1.0A

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/88/2018 (15

January 2019)

Halogen-Free

Status

Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series
