This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190170043
Active
InsulKrimp™ Quick Disconnect, Female, for 14-16 (2.00-1.30) Wire, Box, Tab 5.21mm
(.205") x 0.51mm (.020")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19017
Yes
InsulKrimp™
Quick Disconnect
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Female
No
PVC
None
Brass
Straight
Bag
No
0.51mm (.020")
5.21mm (.205")
-50°C to +105°C
3.70mm (.145") max.
14, 16
1.30 - 2.00
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Voltage - Maximum
600V
Search Parts in this Series
19017Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010200
Hand Crimp Tool
0640012000
Crimp Head for the 0640050200
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640052000
AT-200™ Pneumatic
Hand Tool
Material Info
Old Part Number
BB-2191

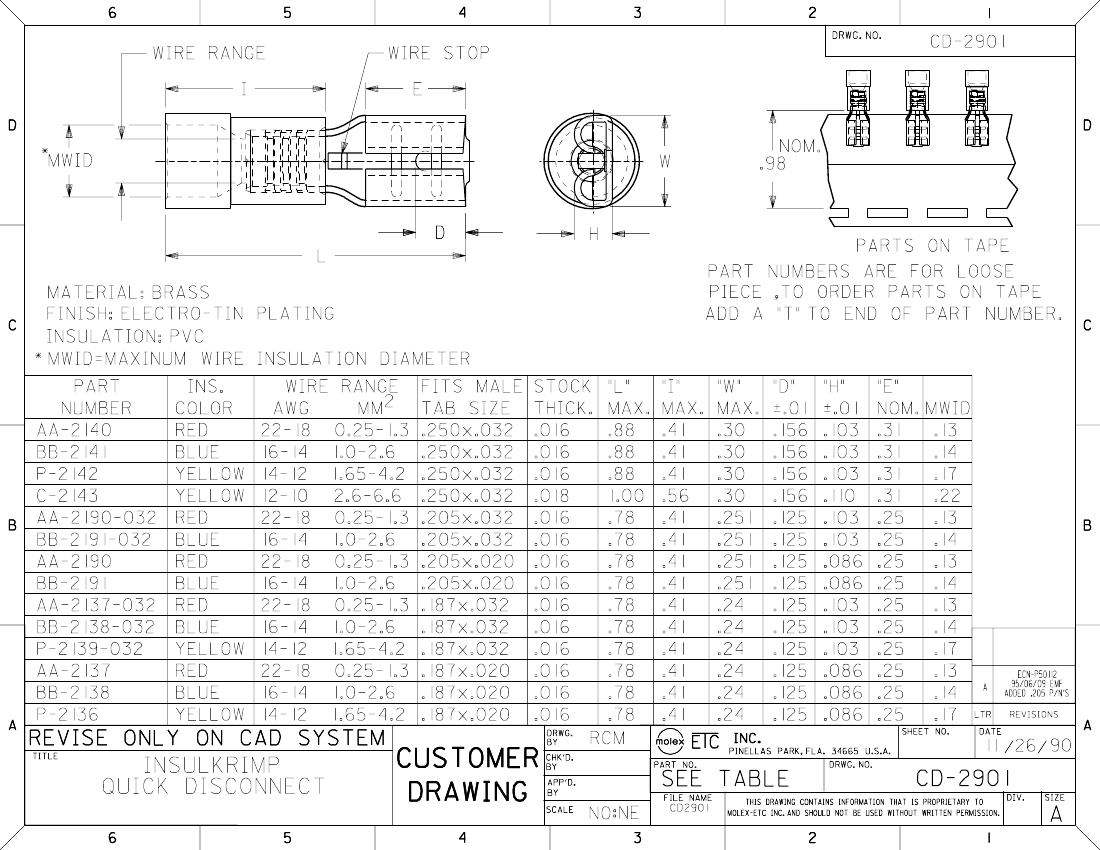

Reference - Drawing Numbers
Sales Drawing
CD2901
This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
