Part Number:
Status:
Description:
0190700065
Active
InsulKrimp™ Ring Tongue Terminal for 14-16 AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19070
Yes
N/A
InsulKrimp™
Ring
Physical
Barrel Type
Color - Resin
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-2
PVC
Tin
Bag
160
4
160
4
1-2 (M2)
4.40mm (.175") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19070Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640010300
Hand Crimp Tool
0640011400
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640050300
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051400
AT-200™ Pneumatic
Hand Tool
Material Info
Old Part Number
BB-223-02X
Reference - Drawing Numbers
Product Specification

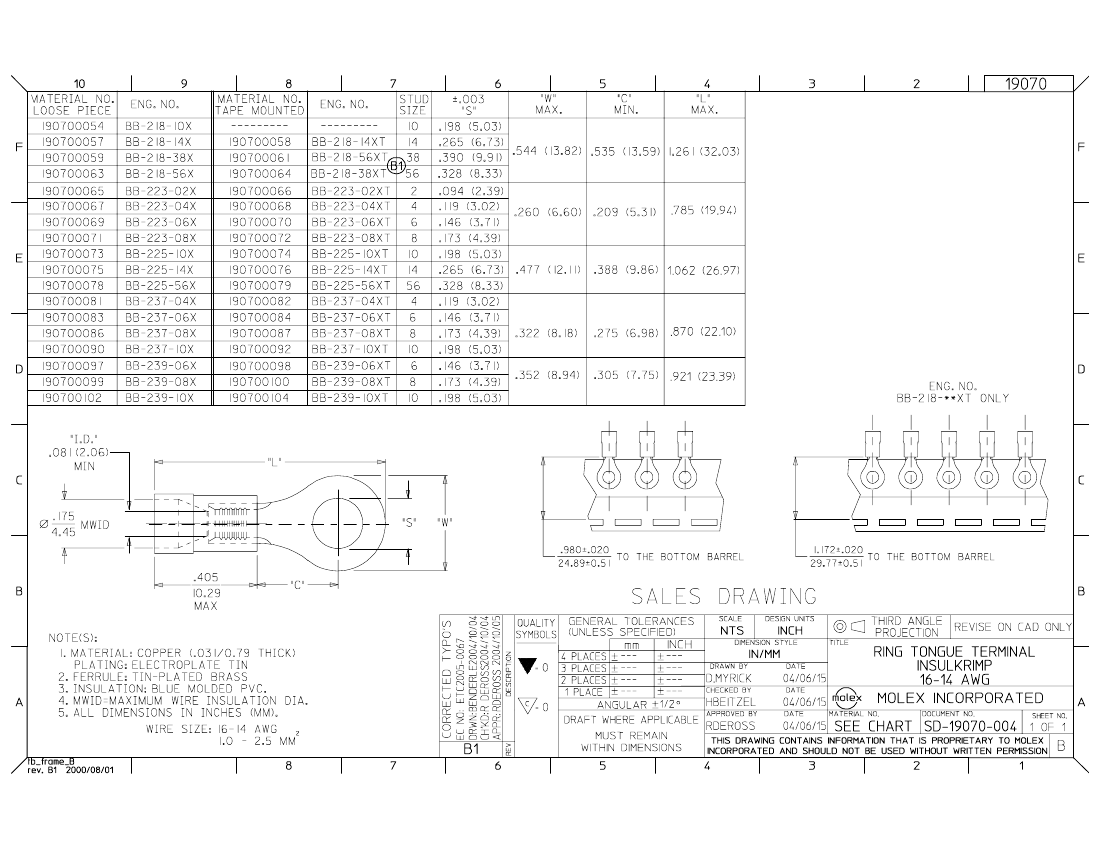

Sales Drawing
PS-19902-009
SD-19070-004
