1704753207 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1704753207

1704753207: DescriptionBoard Connector, 180 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,; CategoryThe connector The connector; File Size333KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

1704753207 Overview

Board Connector, 180 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,

1704753207 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Dielectric withstand voltage	250VAC V
Durability	200 Cycles
maximum insertion force	.3892 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
Manufacturer's serial number	170475
Plug contact pitch	0.075 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	15
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.055 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	180
Evacuation force-minimum value	.0834 N

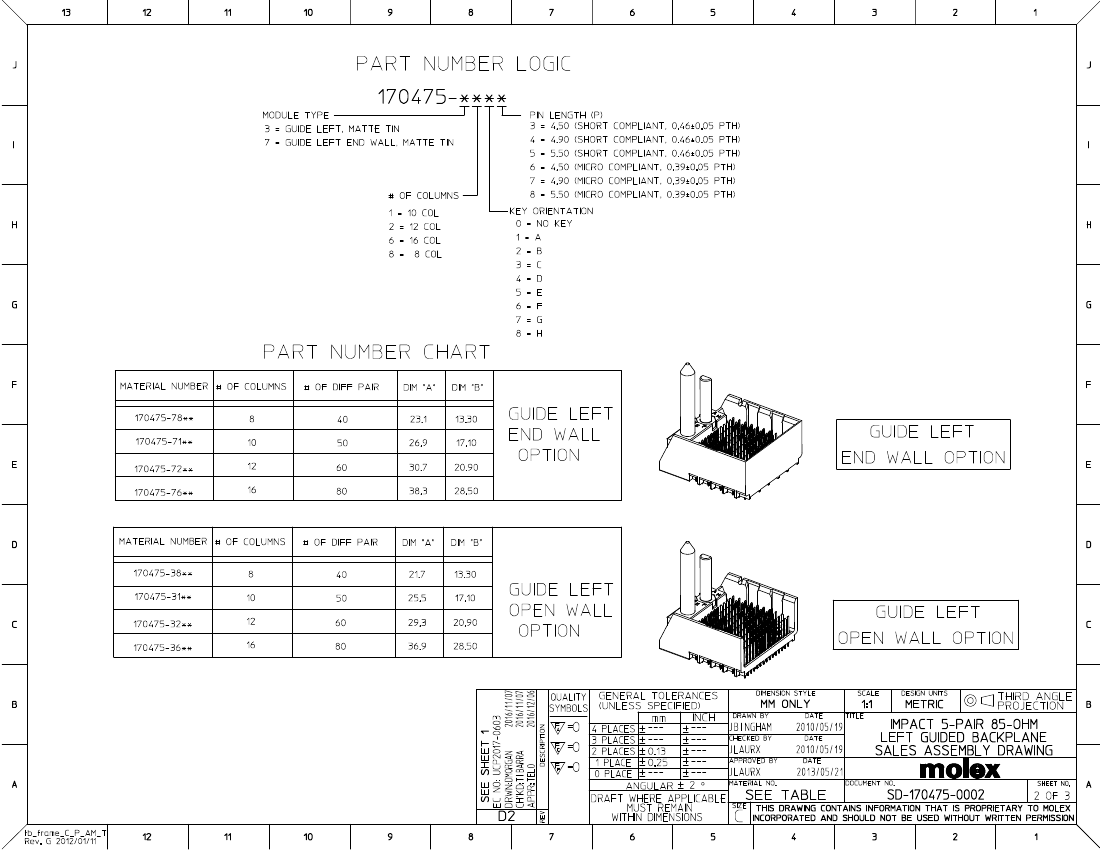

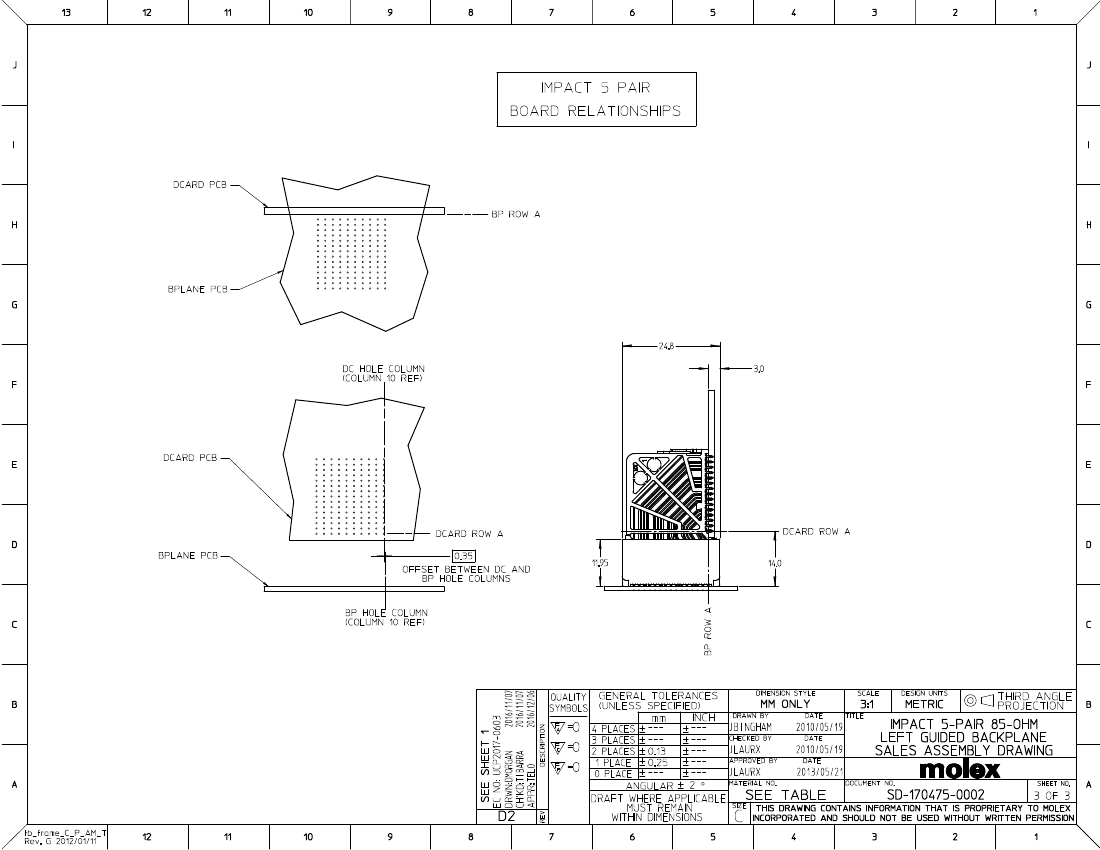

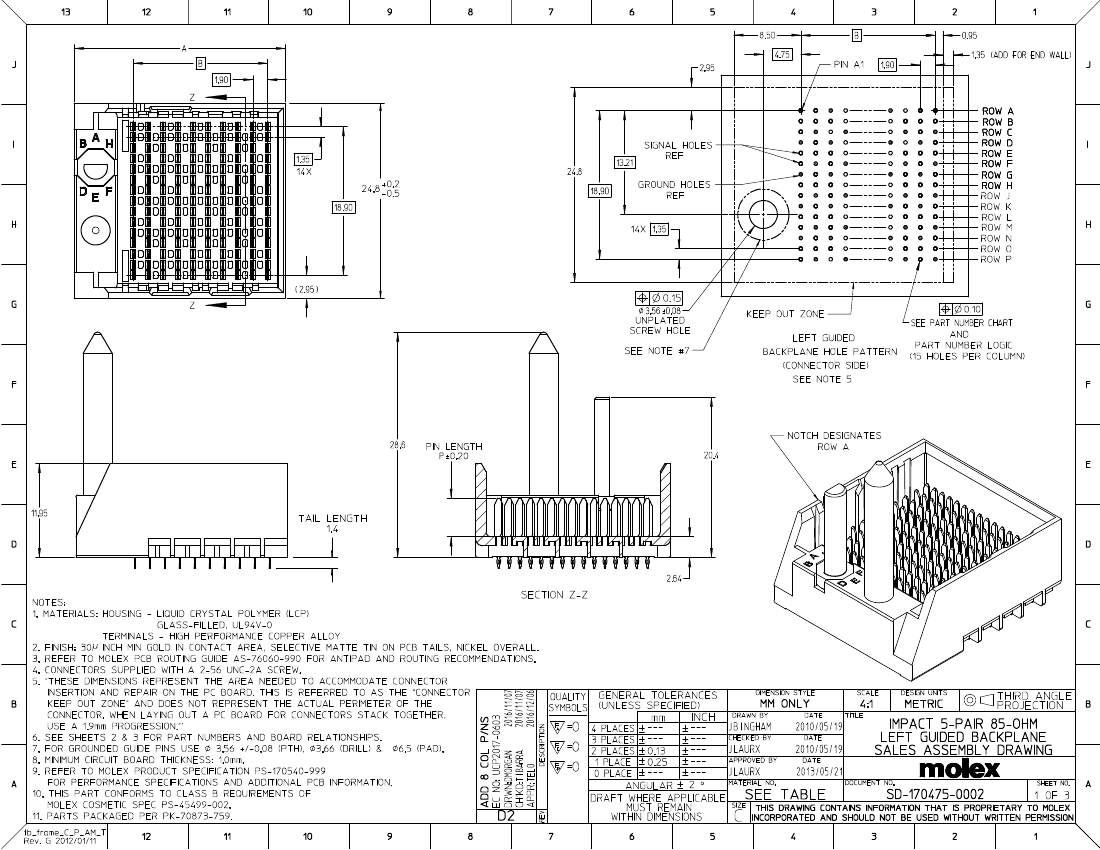

Preview

Download Datasheet

View All

1704753207 Related Products

	1704753207	1704753107	1704753257	1704753607
Description	Board Connector, 180 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 180 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator,	Board Connector, 240 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	.3892 N	.3892 N	.3892 N	.3892 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	170475	170475	170475	170475
Plug contact pitch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Installation option 1	LOCKING	LOCKING	GUIDE PIN	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
Number of rows loaded	15	15	15	15
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	0.75 A	0.75 A	0.75 A	0.75 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.055 inch	0.055 inch	0.055 inch	0.055 inch
Terminal pitch	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	180	150	180	240
Evacuation force-minimum value	.0834 N	.0834 N	.0834 N	.0834 N
