1705253605: DescriptionBoard Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,; CategoryThe connector The connector; File Size272KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

1705253605 Overview

Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,

1705253605 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Dielectric withstand voltage	250VAC V
Durability	200 Cycles
maximum insertion force	.3892 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.075 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	9
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.055 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	144
Evacuation force-minimum value	.0834 N

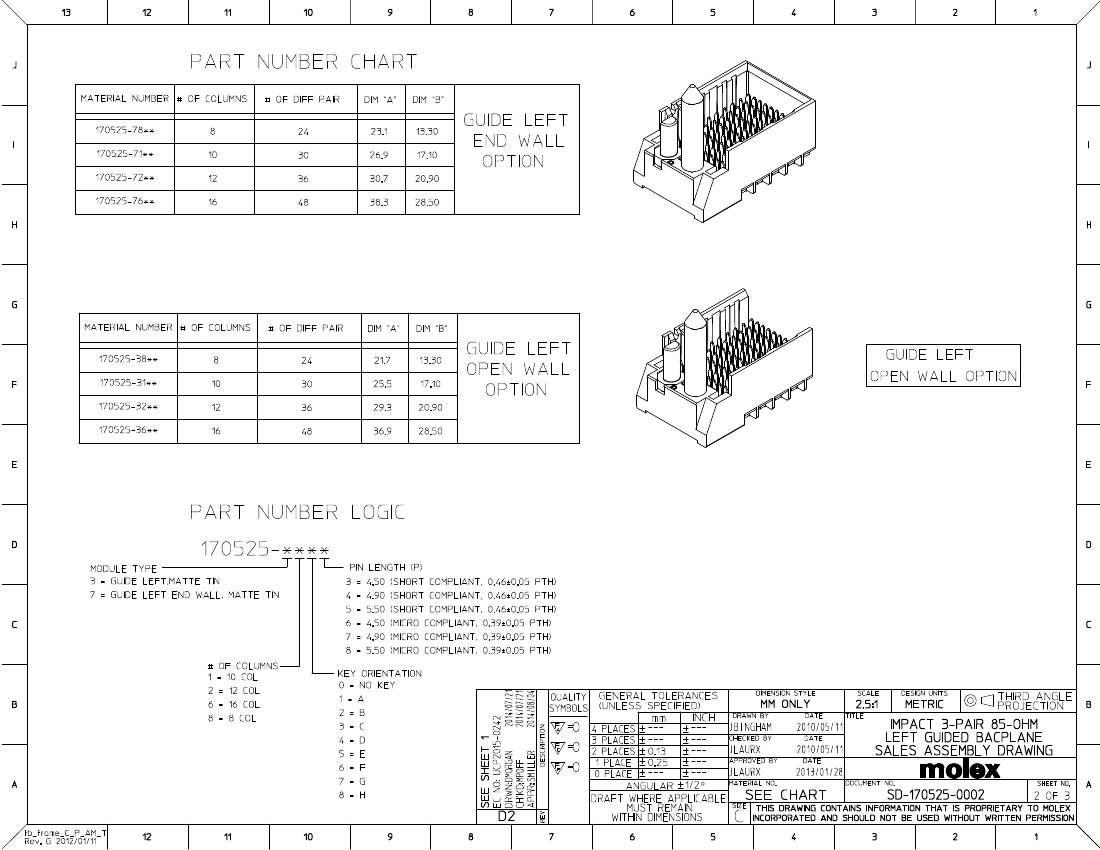

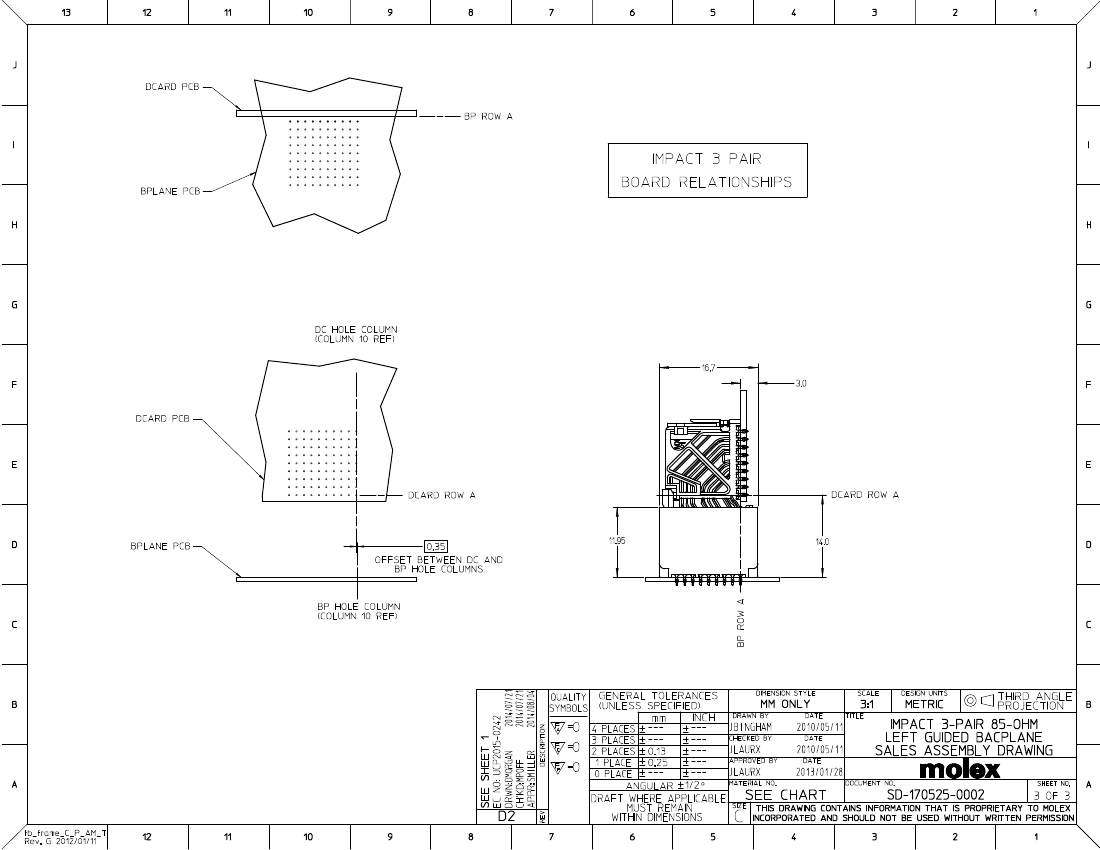

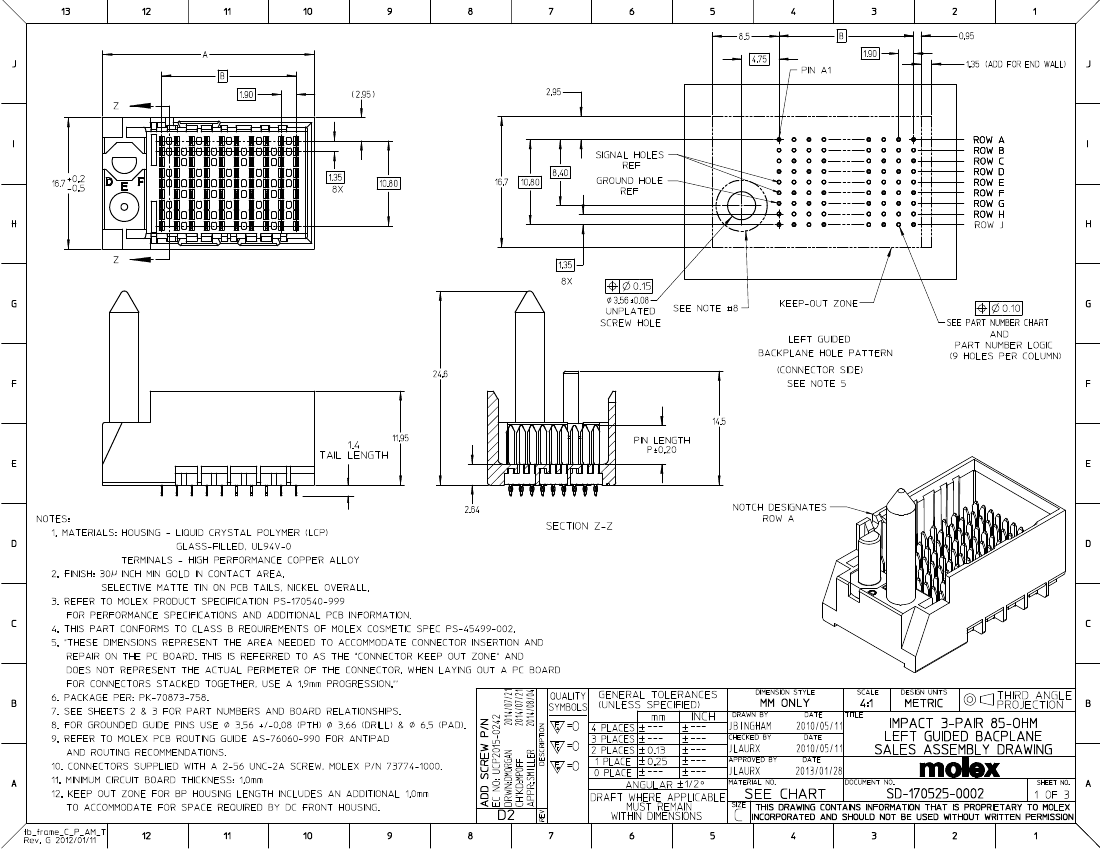

Preview

Download Datasheet

View All

1705253605 Related Products

	1705253605	1705253608	1705253207	1705253107	1705253607	1705253618	1705253817	1705253807
Description	Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 108 Contact(s), 9 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 90 Contact(s), 9 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, Press Fit Terminal, LOW HALOGEN, ROHS AND REACH COMPLIANT	Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 72 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 72 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	9	9	9	9	9	9	9	9
Terminal pitch	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.35 mm	1.905 mm	1.905 mm	1.905 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	144	144	108	90	144	144	72	72
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex	Molex
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Contact completed and terminated	Tin (Sn)	TIN	TIN	TIN	-	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	-	-	MALE	MALE	MALE	MALE
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	-	250VAC V	250VAC V	250VAC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	-	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	.3892 N	.3892 N	.3892 N	.3892 N	-	.3892 N	.3892 N	.3892 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	-	GRAY	GRAY	GRAY
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	-	0.075 inch	0.075 inch	0.075 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Number of connectors	ONE	ONE	ONE	ONE	-	ONE	ONE	ONE
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Rated current (signal)	0.75 A	0.75 A	0.75 A	0.75 A	-	0.75 A	0.75 A	0.75 A
Guideline	UL	UL	-	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.055 inch	0.055 inch	0.055 inch	0.055 inch	-	0.055 inch	0.055 inch	0.055 inch
Evacuation force-minimum value	.0834 N	.0834 N	.0834 N	.0834 N	-	.0834 N	.0834 N	.0834 N
