172130-1208 datasheet, PDF - EEWORLD Datasheet

172130-1208: DescriptionBoard Connector, 144 Contact(s), 12 Row(s), Male, Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Plug; CategoryThe connector The connector; File Size652KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

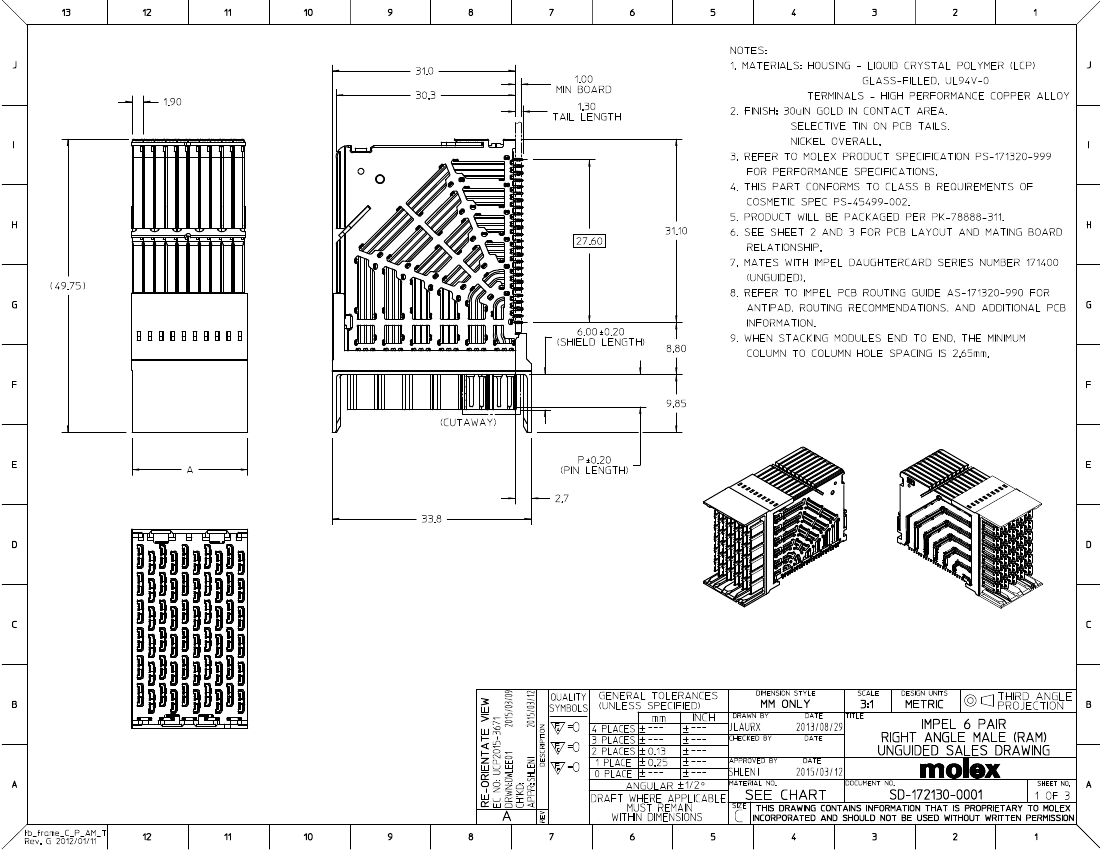

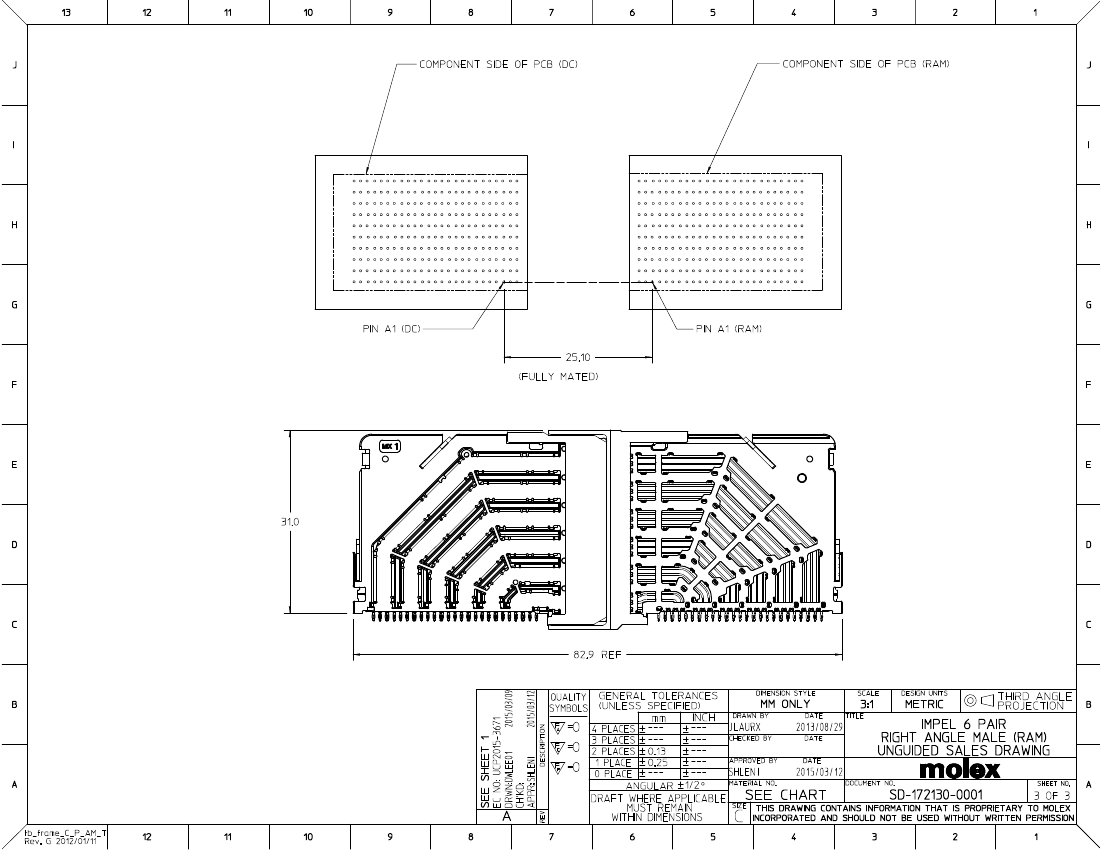

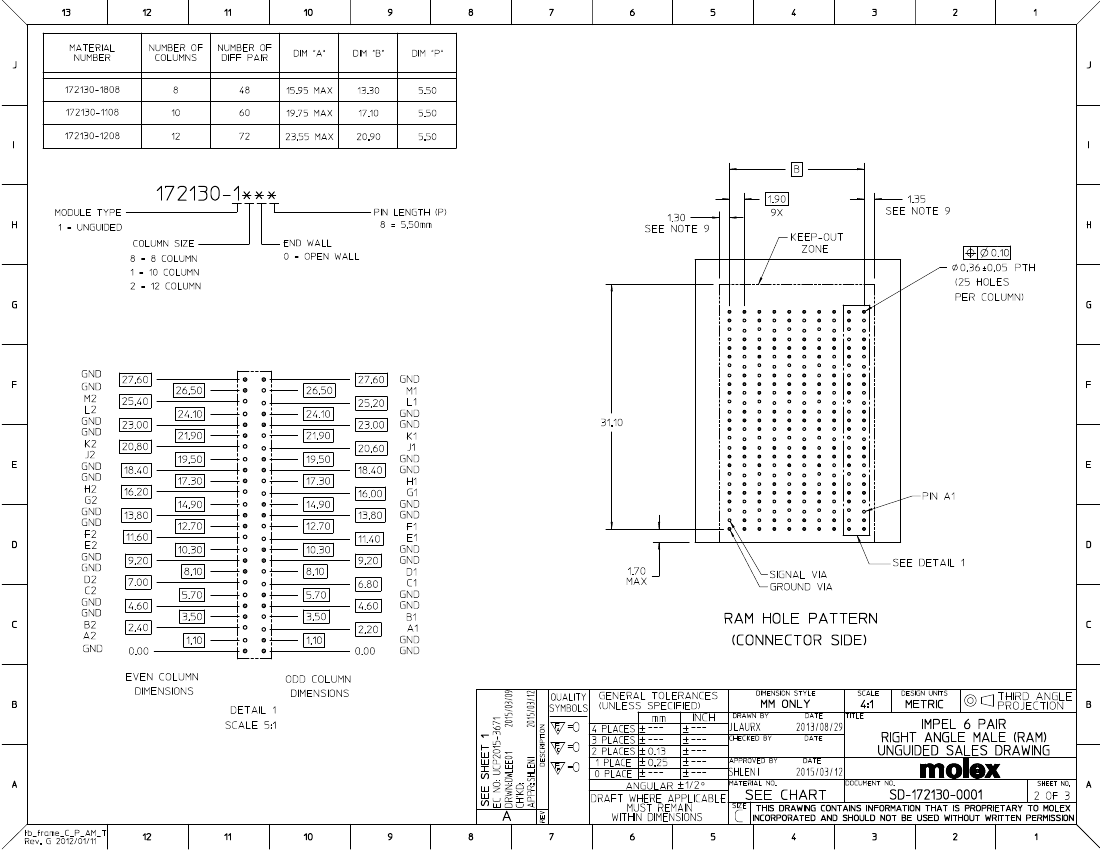

172130-1208 Overview

Board Connector, 144 Contact(s), 12 Row(s), Male, Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Plug

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
body width	1.331 inch
subject depth	1.959 inch
body length	0.927 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.5838 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	172130
Plug contact pitch	0.075 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.051 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	144
Evacuation force-minimum value	.14734 N
