87715-6208

Description
98 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
CategoryThe connector    The connector
File Size339KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

87715-6208 Overview

98 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

87715-6208 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionLEAD FREE
Reach Compliance Codeunknown
Other featuresPANEL MOUNTABLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87715
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts98
UL Flammability Code94V-0
Base Number Matches1

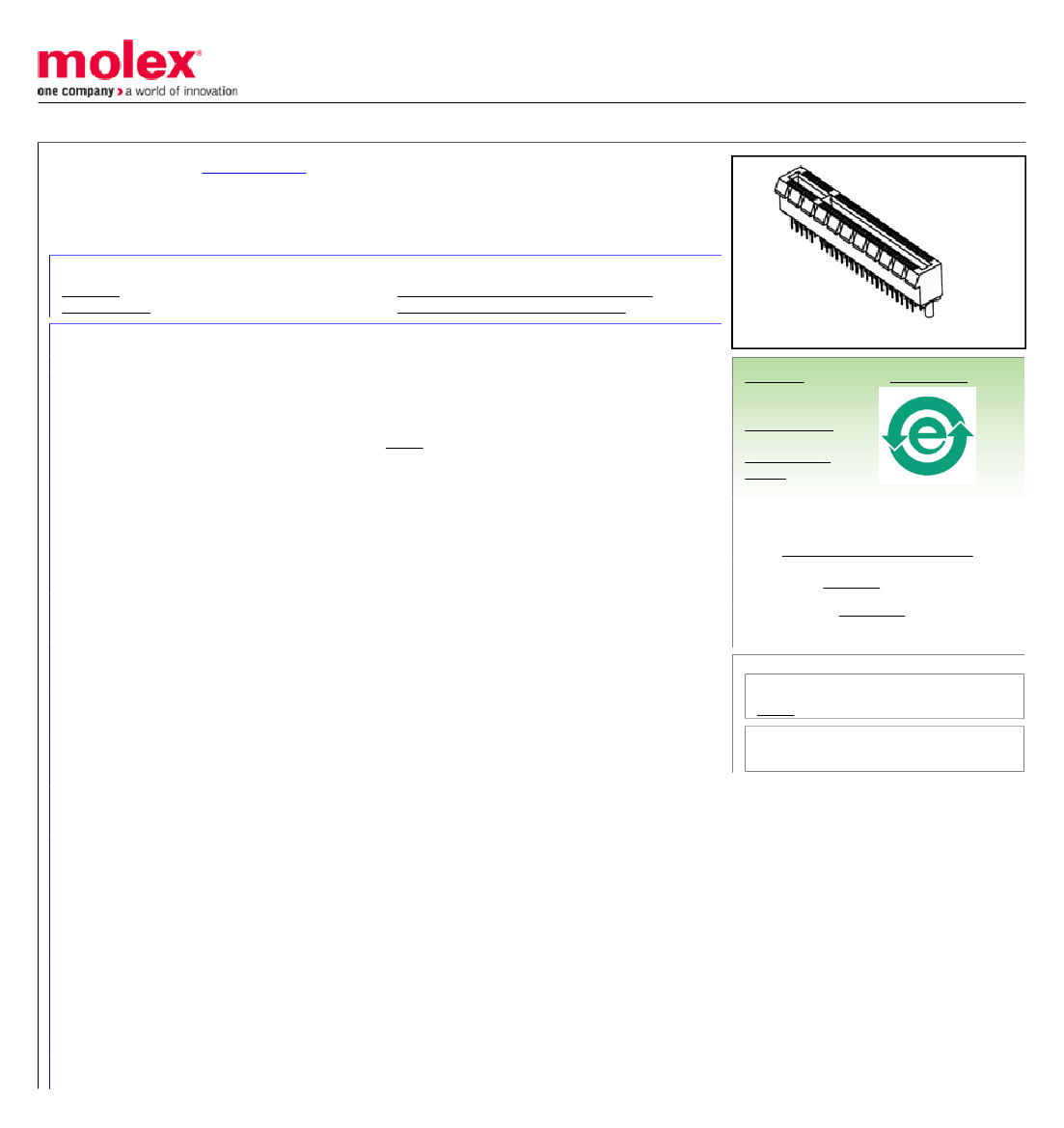

This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0877156208
Planned for Obsolescence
1.00mm (.039") Pitch, PCI Express* Connector, 98 Circuits, Nylon 6/6 Glass-filled,
Black Housing, Phosphor Bronze, 0.38µm (15µ") Gold (Au) Plating, with Plastic Pegs,
2.30mm (.091") Soldertail, Lead Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87715-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Product Name
Edge Card Connectors
87715
PCI 8 lanes
Edgecard to PCB
PCI Express*
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
98
98
All Signal
50
Vertical (Top Entry)
94V-0
Yes
Gold
Tin
0.091 In
2.30 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.039 In
1.00 mm
0.039 In
1.00 mm
Yes
-55°C to +85°C
Through Hole
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-87715-207
PS-87715-200

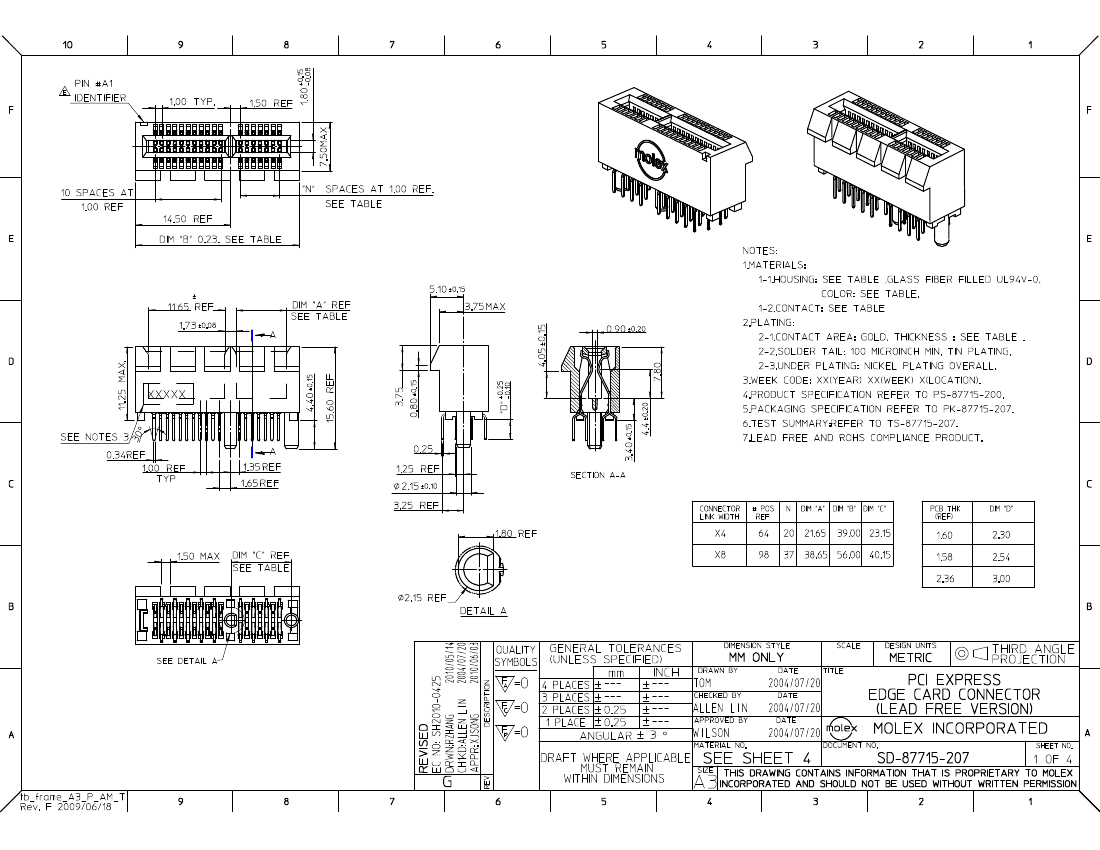

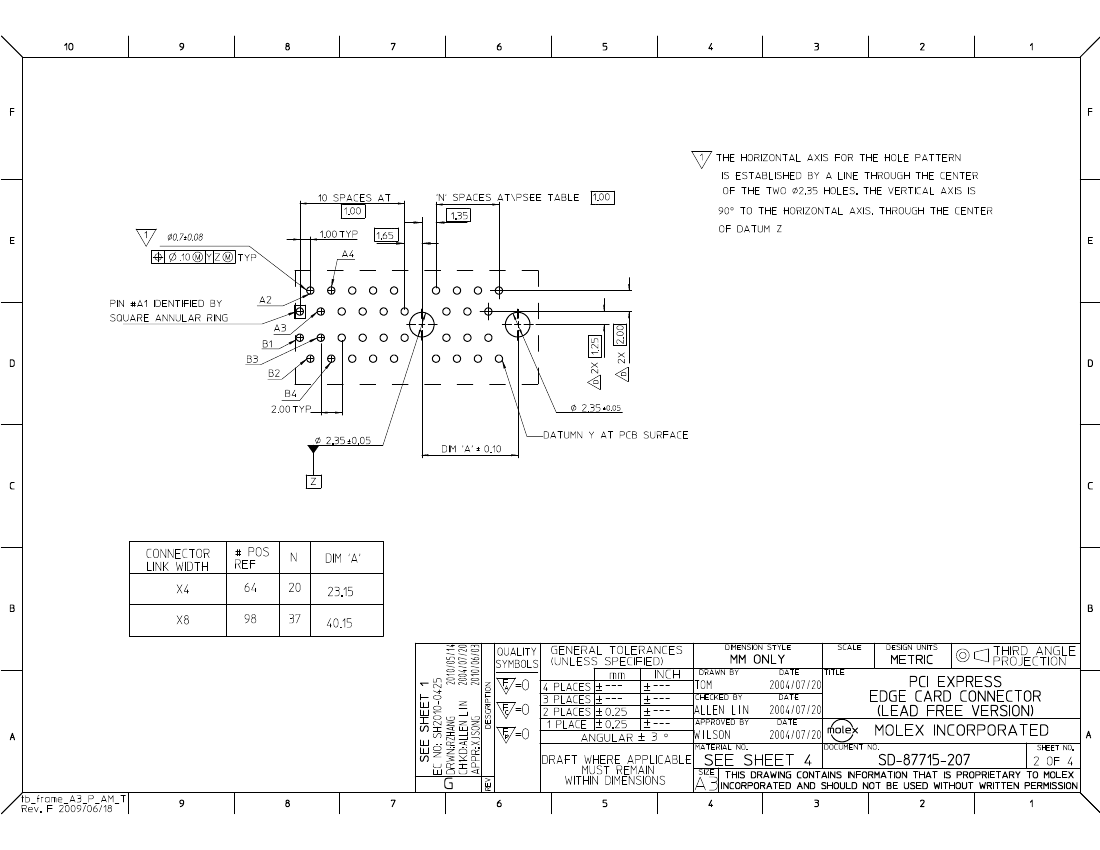

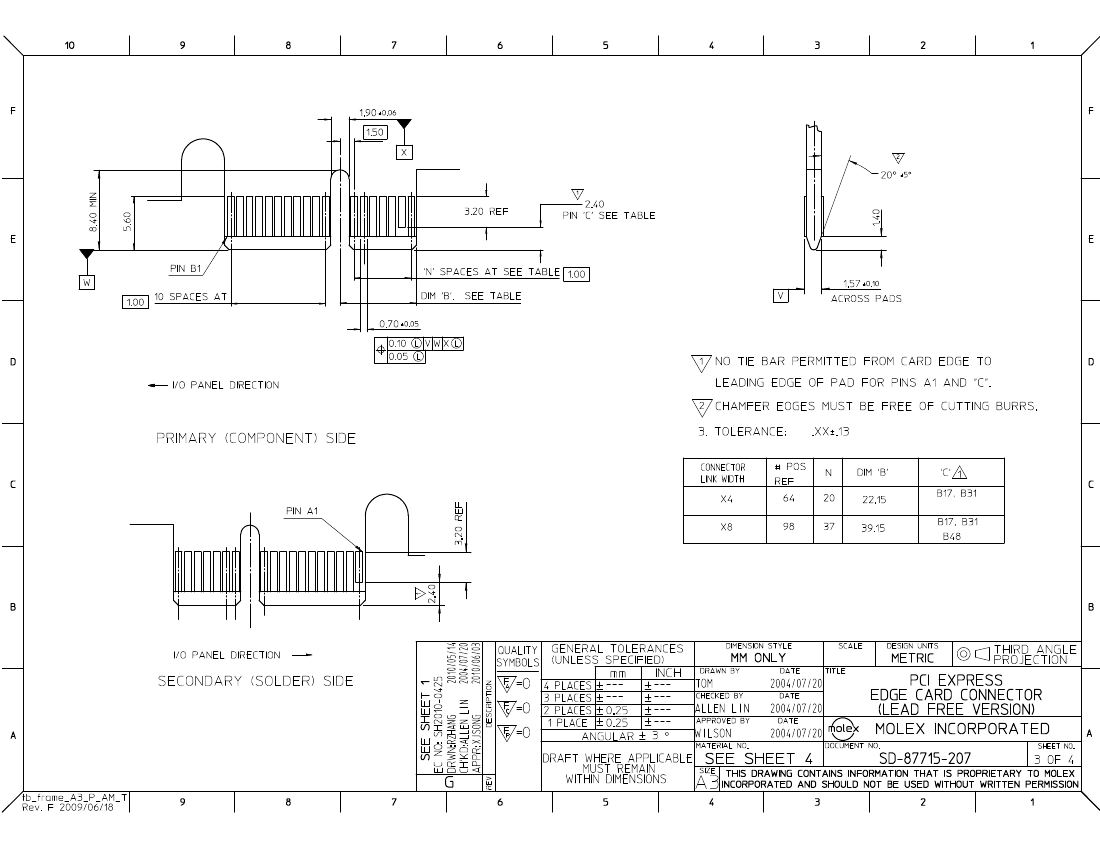

SD-87715-207
TS-87715-207
